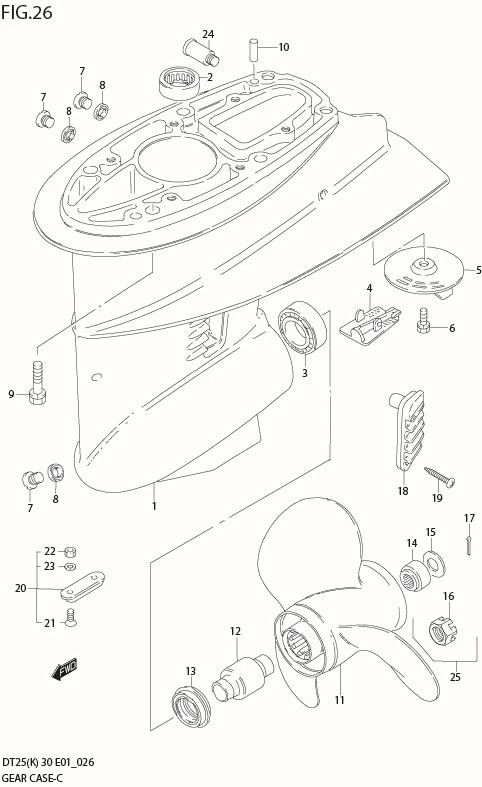

FIG 26 GEAR CASE

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	55100-91L00-0EP SUB: 55100-96322-0EP	CASE ASSY, GEAR (BLACK)	1	Rp2.793.500	MODEL:02%05
1-3	55100-89J01-0EP	CASE ASSY, GEAR (BLACK)	1	Rp4.271.000	MODEL:06%
1-1	DISCONTINUE SUB: 55100-96322-0ED	CASE ASSY, GEAR (GRAY)	1	-
2	09263-20046-000	•BEARING (20.0X27X25.5)	1	Rp531.500
3	09265-25015-000	•BEARING (25.0X52X19.25)	1	Rp429.000
4	DISCONTINUE SUB: 55114-96310-000	•COVER, GEAR CASE	1	-
5	55125-96310-000	TRIM TAB	1	Rp171.500
6	09117-08109-000 SUB: 09117-08037-000	BOLT (8X20)	1	Rp24.500
7	09248-10008-000	PLUG	3	Rp42.500
8	09168-10022-000	GASKET (10X17X1.5)	3	Rp10.500
9	09116-08128-000	BOLT (8X40)	6	Rp124.500	TYPE:S/L
10	DISCONTINUE SUB: 09202-06015-000	PIN	2	-
11-6	DISCONTINUE SUB: 58200-96400-000	PROPELLER (3X10-1/4X13)	1	-	OPT PS1300
11-9	58100-96482-019 SUB: 58100-96480-019	PROPELLER (3X10-1/4X12)	1	Rp2.343.500	P1211
11-8	58100-96472-019 SUB: 58100-96470-019	PROPELLER (3X10-1/4X10)	1	Rp2.343.500	P1011
11-7	58100-95D01-019 SUB: 58100-95D00-019	PROPELLER (3X10-1/4X14)	1	Rp1.966.500	P1401
11-4	58100-96482-019 SUB: 58100-96430-019	PROPELLER (3X10-1/4X12)	1	Rp2.343.500	P1201
11-3	58100-91L50-019 SUB: 58100-96420-019	PROPELLER (3X10-1/4X11)	1	Rp2.020.500	P1101
11-2	58100-96472-019 SUB: 58100-96410-019	PROPELLER (3X10-1/4X10)	1	Rp2.343.500	P1001
11-1	58100-96372-019 SUB: 58100-96370-019	PROPELLER (3X10-1/4X9)	1	Rp2.343.500	P911
11-5	58100-91L30-019 SUB: 58100-96440-019	PROPELLER (3X10-1/4X13)	1	Rp2.122.500	P1301
12	58120-96401-000	•BUSH	1	Rp362.500
13	57632-96400-000	STOPPER, PROPELLER BUSH	1	Rp1.135.500
14	DISCONTINUE SUB: 57633-96300-000	SPACER	1	-
15	DISCONTINUE SUB: 09160-14028-000	WASHER (14.5X30X2.5)	1	-
16	DISCONTINUE SUB: 09141-14008-000	NUT	1	-
17	09204-03003-000	COTTER PIN (L:25)	1	Rp17.500
18	17631-96320-000	FILTER, WATER	2	Rp64.500
19	DISCONTINUE SUB: 03142-04259-000	SCREW	2	-
20	55300-95500-000	ZINC ASSY, PROTECTION	1	Rp187.000	OPT
21	09126-06006-000	•SCREW (6X20)	2	Rp12.500	OPT
22	29141-93J00-000	•NUT	2	Rp18.500	OPT
23	29162-93J00-000	•LOCK WASHER (6.1X12.2X1.5)	2	Rp11.500	OPT
24	55181-95200-000	ATTACHMENT, FLUSH HOSE	1	Rp62.500	OPT
25	57630-96300-000	PROPELLER NUT KIT	1	Rp211.500	OPT
