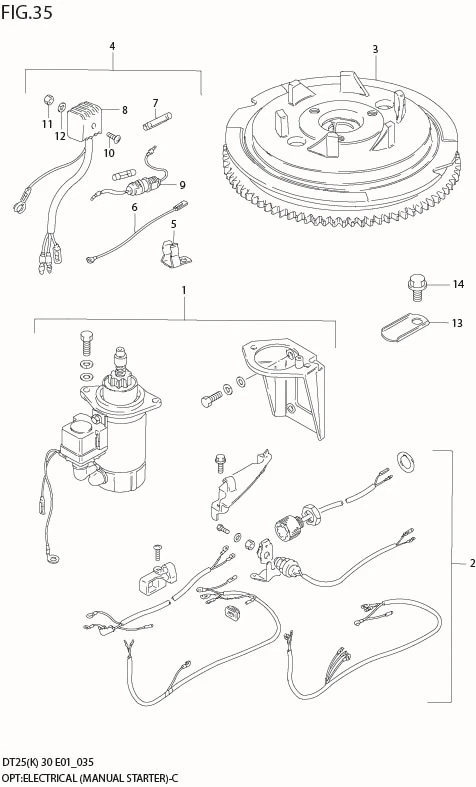

FIG 35 OPT:ELECTRICAL (MANUAL STARTER)

FIG 35 OPT:ELECTRICAL (MANUAL STARTER)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	31101-96320-0ED SUB: 31101-96320-000	MOTOR SET, STARTER	1	Rp4.499.000
1-2	31101-96320-0EP	MOTOR SET, STARTER (BLACK)	1	Rp5.154.000	MODEL:02%
2	33800-96304-000	SWITCH, STARTER/CABLE SET	1	Rp925.000
3-1	32102-96462-000	FLYWHEEL	1	Rp5.230.500	DT25/30
3-2	32102-96472-000	FLYWHEEL	1	Rp5.230.500	DT25K
4	32801-96304-000	RECTIFIER SET	1	Rp611.500
5	36791-95200-000	•HOLDER	1	Rp27.500
6	DISCONTINUE SUB: 37801-98300-000	•LEAD, WIRE	1	-
7	37132-93700-000	•WIRE, CONNECTOR	1	Rp17.000
8	32800-95D02-000 SUB: 32800-95D01-000	•RECTIFIER	1	Rp1.005.500
9	DISCONTINUE SUB: 36740-95253-000	•CASE ASSY, FUSE	1	-
10	02142-05257-000	•SCREW	1	Rp9.000
11	08310-00057-000	•NUT	1	Rp13.500
12	08321-0105B-000 SUB: 08321-01057-000	•WASHER	1	Rp13.500
13	DISCONTINUE SUB: 33815-94501-000	PROTECTOR, CABLE	1	-
14	09103-06049-000	BOLT (6X12)	1	Rp14.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
