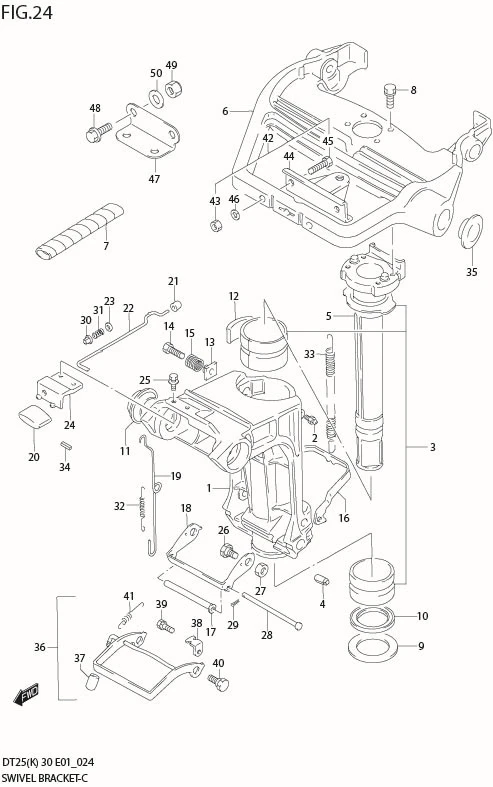

FIG 24 SWIVEL BRACKET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	43111-96352-0EP	BRACKET, SWIVEL (BLACK)	1	Rp4.731.000	MODEL:02%
1-1	DISCONTINUE SUB: 43111-96351-0ED	BRACKET, SWIVEL (GRAY)	1	-
2	22511-99011-000	NIPPLE, CLUTCH BODY	4	Rp39.500
3	43710-91L00-000 SUB: 43710-96300-000	BUSH SET, STEERING	1	Rp263.500
4	09205-06013-000	PIN	1	Rp12.500
5-1	DISCONTINUE SUB: 43741-96304-0ED	SHAFT, PILOT (GRAY)	1	-
5-2	43741-96304-0EP	SHAFT, PILOT (BLACK)	1	Rp1.312.500	MODEL:02%
6-1	DISCONTINUE SUB: 43751-96400-0ED	BRACKET, STEERING (GRAY)	1	-
6-2	43751-96401-0EP	BRACKET, STEERING (BLACK)	1	Rp3.137.000	MODEL:02%
7	43753-96310-000	TUBE, THROTTLE CABLE	1	Rp28.500
8	09117-08074-000	BOLT (8X22)	4	Rp20.500
9	DISCONTINUE SUB: 09160-40005-000	WASHER (40X58X2)	1	-
10	DISCONTINUE SUB: 09284-40001-000	SEAL	1	-
11	DISCONTINUE SUB: 09306-22004-000	BUSH (OD:40)	2	-
12	DISCONTINUE SUB: 43411-96300-000	ADJUSTER, STEERING	1	-
13	DISCONTINUE SUB: 43421-96302-000	BUSH	1	-
14	DISCONTINUE SUB: 09119-08044-000	BOLT (8X23)	1	-
15	DISCONTINUE SUB: 09440-12036-000	SPRING	1	-
16	45231-96302-000	ARM, REVERSE LOCK	1	Rp118.500
17	DISCONTINUE SUB: 45246-96302-000	SPACER	1	-
18	DISCONTINUE SUB: 45241-96303-000	LINK, REVERSE LOCK ARM	1	-
19	DISCONTINUE SUB: 45252-96303-000	LINK, RELEASE LEVER	1	-
20	DISCONTINUE SUB: 45255-96302-000	KNOB, RELEASE LEVER	1	-
21	45257-96300-000	BUSH, RELEASE LEVER	1	Rp12.000
22	DISCONTINUE SUB: 45260-96300-000	LEVER, RELEASE	1	-
23	09160-04012-000	WASHER (4.2X10X1)	1	Rp9.500
24-2	45311-96303-0EP	BRACKET, RELEASE LEVER (BLACK)	1	Rp146.000	MODEL:02%
24-1	DISCONTINUE SUB: 45311-96302-0ED	BRACKET, RELEASE LEVER (GRAY)	1	-
25	DISCONTINUE SUB: 09116-05010-000	BOLT (5X12)	2	-
26	DISCONTINUE SUB: 09111-10034-000	BOLT (10X16.5)	2	-
27	09140-10032-000	NUT	2	Rp15.000
28	DISCONTINUE SUB: 09200-05011-000	PIN	1	-
29	09204-01002-000	COTTER PIN	1	Rp13.000
30	09319-04001-000	BUSH	1	Rp13.000
31	09440-04021-000	SPRING	1	Rp9.500
32	DISCONTINUE SUB: 09443-05013-000	SPRING	1	-
33	09443-09036-000	SPRING	1	Rp96.000
34	09205-02006-000	PIN	1	Rp11.000
35	09250-33001-000	CAP	1	Rp25.000	DT30R
36	45700-96313-000	SHALLOW DRIVE ASSY	1	Rp529.500
37	DISCONTINUE SUB: 45255-95500-000	•KNOB	1	-
38	45731-96312-000	•PLATE	1	Rp43.500
39	09117-06030-000 SUB: 09117-06038-000	•BOLT (6X16)	1	Rp18.000
40	09111-10045-000	•BOLT (10X20.8)	2	Rp52.500
41	09443-08031-000	•SPRING	1	Rp50.000
42	DISCONTINUE SUB: 67100-96300-000	ATTACHMENT, STEERING ROPE END	1	-	OPT
43	09140-08023-XC0	•NUT	2	Rp22.500	OPT,?09140-08016
44	DISCONTINUE SUB: 43755-96320-000	•ATTACHMENT, STEERING BRACKET	1	-	OPT,?43755-96310
45	29101-93J00-000	•BOLT (8X35)	2	Rp21.000	OPT
46	29162-93J10-000	•LOCK WASHER	2	Rp16.000	OPT
47	DISCONTINUE SUB: 67110-99710-000	ATTACHMENT SET, STRG ROPE END	1	-	OPT
48	29116-93J10-000	•BOLT	2	Rp29.500	OPT
49	DISCONTINUE SUB: 09159-08059-000	•NUT	2	-	OPT
50	09160-08082-000	•WASHER	2	Rp12.000	OPT
