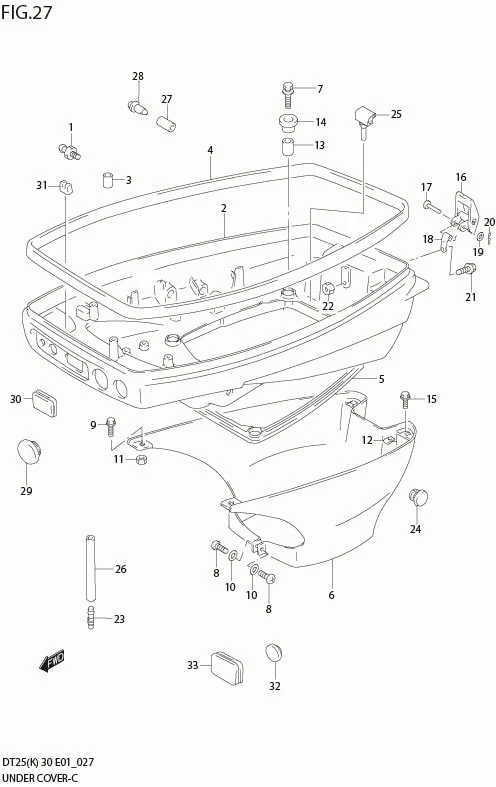

FIG 27 UNDER COVER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	22511-99011-000	NIPPLE	1	Rp39.500
2-1	61110-96341-0ED	COVER, ENGINE LOWER (GRAY)	1	-
2-2	61110-96342-0EP	COVER, ENGINE LOWER (BLACK)	1	Rp2.249.500	MODEL:02%
3	09205-10006-000	•PIN	1	Rp32.000
4	61112-96320-000	RUBBER, UNDER COVER	1	Rp526.000
5	DISCONTINUE SUB: 61113-96300-000	SEAL, UNDER COVER	1	-
6-1	61131-96301-0ED	COVER, ENGINE HOLDER (GRAY)	1	Rp1.013.500
6-2	61131-96301-0EP	COVER, ENGINE HOLDER (BLACK)	1	Rp2.114.000	MODEL:02%
7	09116-06133-000	BOLT (6X25)	4	Rp14.000
8	09125-05046-000	SCREW (5X12)	2	Rp14.000
9-1	09136-06146-000	BOLT (6X12)	2	Rp17.000
9-2	DISCONTINUE SUB: 29103-93J00-000	BOLT (6X12)	2	-	MODEL:06%
10	09160-05029-000	WASHER (5.5X12X0.8)	2	Rp14.000
11	09140-06020-000	NUT	2	Rp13.500
12	09148-06017-000 SUB: 09148B06017N000	NUT	2	Rp15.500
13	09180-06289-000	SPACER	4	Rp18.000
14	09320-10031-000	CUSHION	4	Rp25.500
15	09136-06145-000	BOLT (6X20)	2	Rp11.500
16	61610-90L00-000 SUB: 61610-93901-000	FASTENER	1	Rp198.000
17	61616-93EL0-000 SUB: 61616-93E00-000	PIN, LEVER	1	Rp59.000
18	61642-90L00-000 SUB: 61642-93902-000	HOLDER, FASTENER LEVER	1	Rp69.500
19	09161-04012-000	WASHER (4.2X11X1.0)	1	Rp15.500
20	09385-04003-000	PIN, SNAP	1	Rp18.000
21	01550-06167-000	BOLT	1	Rp16.500
22	08310-00067-000	NUT	1	Rp13.000
23	61155-94500-000	TUBE, WATER INSPECTION	1	Rp26.500
24	09250-08007-000	CAP	2	Rp9.500
25	DISCONTINUE SUB: 61138-94410-000	COVER, WATER	1	-
26	09352-50006-600 SUB: 09352-50903-600	HOSE	1	Rp46.000	L:600!40
27	09352-70121-600	HOSE (L:600!15)	1	Rp155.000	DT25(K)/DT30:E13,E40,E36
28	09409-08308-5ES	CAP (BLACK)	1	Rp15.000	DT25(K)/DT30:E13,E40,E36
29	DISCONTINUE SUB: 09250-21003-000	PLUG	1	-	MANUAL STARTER
30	39669-94400-000	PLUG, LOWER COVER	1	Rp37.500	MANUAL STARTER
31	DISCONTINUE SUB: 13625-94300-000	CAP, CHOKE ROD GUIDE	1	-
32	DISCONTINUE SUB: 09250-13005-000	PLUG	1	-	DT30R
33	63625-94300-000	CAP, THROTTLE CABLE	1	Rp21.000	DT30R
