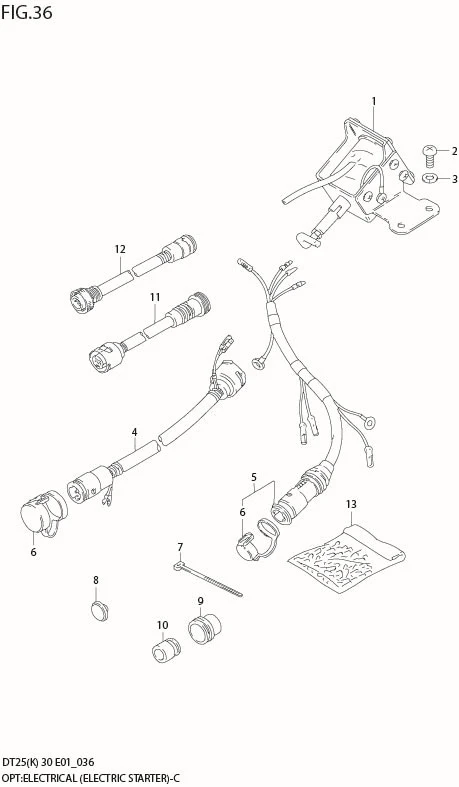

FIG 36 OPT:ELECTRICAL (ELECTRIC STARTER)

FIG 36 OPT:ELECTRICAL (ELECTRIC STARTER)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	38600-96301-000	SOLENOID, CHOKE	1	Rp726.500
2	02112-05127-000	SCREW	2	Rp14.000
3	08321-0105B-000 SUB: 08321-01057-000	WASHER	2	Rp13.500
4-1	36620-87D20-000	WIRING HARNESS, REMO-CON	1	Rp1.420.500	L:5000
4-2	36620-95302-000	WIRING HARNESS, REMO-CON	1	Rp1.027.000	L:2000
4-3	36620-95D00-000	WIRING HARNESS, REMO-CON	1	Rp1.952.000
5-1	36630-96321-000	WIRING HARNESS, REMO-CON	1	Rp666.000
5-2	36630-96311-000	WIRING HARNESS, REMO-CON	1	Rp195.500
6	36631-94300-000	•CAP, REMO-CON HARNESS	1	Rp32.000
7	09407-19401-000 SUB: 09407-25402-000	CLAMP, CONNECTOR GROMMET	1	Rp31.500
8	09250-12006-000	CAP, PANEL	2	Rp9.500	MODEL:01%04
9	36612-94301-000	GROMMET, 1	1	Rp42.500
10	36613-94300-000	GROMMET, 2	1	Rp36.500
11	36641-94701-000	ADAPTER (OLD!NEW)	1	Rp512.500	MODEL:01%04
12	36642-94703-000	ADAPTER (NEW!OLD)	1	Rp507.000	MODEL:01%04
13	36990-87D00-000	TERMINAL & SLEEVE SET	1	Rp126.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
