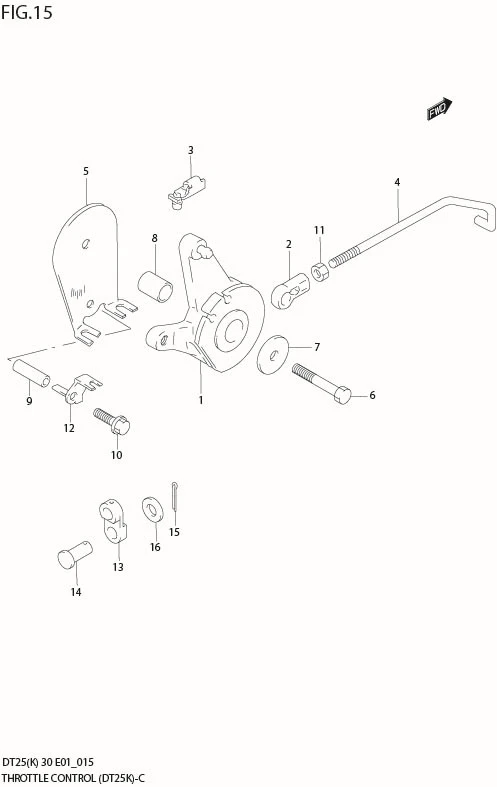

FIG 15 THROTTLE CONTROL (DT25K)

FIG 15 THROTTLE CONTROL (DT25K)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 19121-96301-000	LEVER, THROTTLE CONTROL	1	-
2	19131-95502-000	CONNECTOR	1	Rp39.000
3	19132-96300-000	CONNECTOR, THROTTLE ROD	1	Rp17.000
4	DISCONTINUE SUB: 19135-96350-000	ROD (TH LEVER TO CARB)	1	-
5-1	DISCONTINUE SUB: 19761-96350-000	STAY, THROTTLE CABLE	1	-
5-2	19761-96351-000	STAY, THROTTLE CABLE	1	Rp91.000	MODEL:08%
6	09116-06232-000 SUB: 09100-06121-000	BOLT (TH LEVER)	1	Rp17.500
7	09160-06006-000 SUB: 09160-06084-000	WASHER	1	Rp11.000
8	DISCONTINUE SUB: 09180-06105-000	SPACER	1	-
9	09180-06186-000	SPACER	1	Rp41.500
10	01550-06357-000	BOLT	1	Rp18.500
11	09140-05005-000	NUT	1	Rp20.000
12-1	18642-96300-000	HOLDER, INTERLOCK CABLE	1	Rp32.000
12-2	18642-96301-000	HOLDER, INTERLOCK CABLE	1	Rp42.000	MODEL:06%
13	18652-96300-000	CONNECTOR, INTERLOCK CABLE	1	Rp37.500
14	DISCONTINUE SUB: 09200-05006-000	PIN	1	-
15	09204-01002-000	PIN, COTTER	1	Rp13.000
16	09160-05029-000	WASHER (5.5X12X0.8)	1	Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
