DT25(K) 30 E01

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 1 CYLINDERFIG 2 CRANKSHAFTFIG 3 INLET CASE (DT25/30)FIG 4 INLET CASE (DT25K)FIG 5 CARBURETOR (DT25/30)FIG 6 CARBURETOR (DT25K)FIG 7 OIL SEAL HOUSINGFIG 8 EXHAUST TUBEFIG 9 FUEL PUMP (DT25/30)FIG 10 FUEL PUMP (DT25K)FIG 11 WATER PUMPFIG 12 RECOIL STARTERFIG 13 THROTTLE CONTROL (DT25/30)FIG 14 THROTTLE CONTROL (DT25/30:E40)FIG 15 THROTTLE CONTROL (DT25K)FIG 16 CLUTCHFIG 17 TRANSMISSIONFIG 18 STARTING MOTORFIG 19 MAGNETOFIG 20 IGNITIONFIG 21 HARNESSFIG 22 SWITCHFIG 23 CLAMP BRACKETFIG 24 SWIVEL BRACKETFIG 25 DRIVE SHAFT HOUSINGFIG 26 GEAR CASEFIG 27 UNDER COVERFIG 28 ENGINE COVER (MODEL:01)FIG 29 ENGINE COVER (MODEL:02%10)FIG 29A ENGINE COVER (DT25K:010001%,DT30:010902%)FIG 30 HANDLEFIG 31 FUEL TANK (STEEL)FIG 32 FUEL TANK (RESIN,12L)FIG 33 FUEL TANK (RESIN,25L)FIG 34 REMOCON PARTS (DT30R)FIG 35 OPT:ELECTRICAL (MANUAL STARTER)FIG 36 OPT:ELECTRICAL (ELECTRIC STARTER)FIG 37 OPT:REGULATORFIG 38 OPT:METERFIG 39 OPT:SWITCH PANELFIG 40 OPT:REMOCON PARTSFIG 41 OPT : REMOCON PARTS (DT25K E13)FIG 42 OPT : REMOTE CONTROLFIG 43 OPT:REMOTE CONTROL (MODEL:04%)FIG 44 OPT:DRAG LINKFIG 45 OPT:GASKET SET

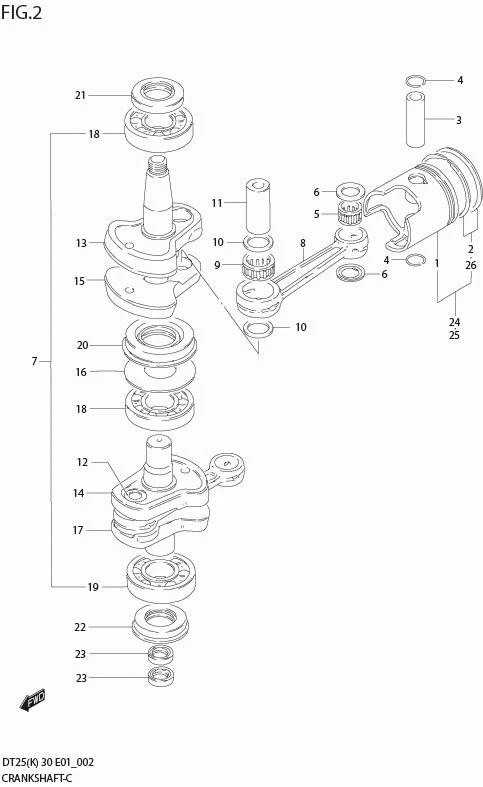

FIG 2 CRANKSHAFT

FIG 2 CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 12110-96353-000 PISTON 2 Rp990.000
2 12140-96361-000 RING SET, PISTON 2 Rp382.500
3 12151-92502-000 PIN, PISTON 2 Rp121.500
4 09381-18002-000
SUB: 09381B18002N000		 SNAP RING 4 Rp2.500
5 09263-18016-000 BEARING (18X23X22) 2 Rp134.000
6 09169-18001-000 WASHER 4 Rp31.500
7 12200-91L20-000
SUB: 12200-96367-000		 CRANKSHAFT ASSY 1 Rp5.723.500
8 12161-96300-000 •ROD, CONNECTING 2 Rp1.540.000
9 09263-24018-000 •BEARING (24X32X20) 2 Rp592.000
10 09181-24001-000 •WASHER (24X31.5X1) 4 Rp18.000
11 12211-96311-000 •PIN, CRANK UPPER 1 Rp297.000
12 12211-96311-000 •PIN, CRANK LOWER 1 Rp297.000
13 12221-96307-000 •CRANKSHAFT, UPPER 1 Rp934.000
14 DISCONTINUE
SUB: 12232-96306-000		 •WHEEL, MIDDLE UNDER 1 -
15 DISCONTINUE
SUB: 12231-96304-000		 •WHEEL, MIDDLE UPPER 1 -
16 DISCONTINUE
SUB: 09160-50002-000		 •WASHER (50X77X1) 1 -
17 12240-91L30-000
SUB: 12240-96306-000		 •CRANKSHAFT, UNDER 1 Rp1.478.500
18 09262-30055-000 •BEARING 2 Rp365.500 ?09262-30092
19 09262-30055-000 •BEARING 1 Rp365.500
20 09289-39L01-000
SUB: 09289-38013-000		 •OIL SEAL (38X72X12) 1 Rp392.000
21 09283-30064-000 OIL SEAL (30X55X10) 1 Rp90.000
22 09283-30077-000
SUB: 09283-30062-000		 OIL SEAL (28.5X59X10) 1 Rp114.000
23 09282-15010-000
SUB: 09282-15008-000		 OIL SEAL (14.7X25X6.5) 2 Rp52.000
24 12100-96353-025 PISTON/RING SET (OS:0.25) 2 Rp1.008.000 OPT
25 DISCONTINUE
SUB: 12100-96353-050		 PISTON/RING SET (OS:0.50) 2 - OPT
26 DISCONTINUE
SUB: 12140-96351-050		 •RING SET, PISTON (OS:0.50) 2 - OPT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
