  5. FIG.54 REAR MASTER CYLINDER

SHOGUN (FL125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 FOOTRESTFIG.31 FUEL TANKFIG.32 FRAME COVERFIG.33 FRONT LEG SHIELDFIG.34 CENTER LEG SHIELDFIG.35 FRONT FENDERFIG.36 HANDLE BARFIG.37 HANDLE COVERFIG.38 HANDLE LEVERFIG.39 REAR FENDERFIG.40 LUGGAGE BOXFIG.41 LABELFIG.42 SEATFIG.43 FRONT FORK DAMPER (FL125SDK7/SCK7/SDK8/RCDFK8)FIG.43A FRONT FORK DAMPER (FL125RCDMK7/RDK8/RMDK8)FIG.44 FRONT FORK BRACKETFIG.45 FRONT WHEEL (FL125SD)FIG.46 FRONT WHEEL (FL125SC/RCDF)FIG.46A FRONT WHEEL (FL125RCDM/RD/RMD)FIG.47 FRONT CALIPER (FL125SD/SC/RCDF)FIG.47A FRONT CALIPER (FL125RCDM/RD/RMD)FIG.48 FRONT MASTER CYLINDER (FL125SD/SC/RCDF)FIG.48A FRONT MASTER CYLINDER (FL125RCDM/RD/RMD)FIG.49 REAR SWINGING ARM (FL125SD/SC)FIG.49A REAR SWINGING ARM (FL125RCDM/RD/RMD/RCDF)FIG.50 CHAINCASEFIG.51 REAR WHELL (FL125SD)FIG.52 REAR WHELL (FL125SC)FIG.52A REAR WHELL (FL125RCDM/RD/RMD/RCDF)FIG.53 REAR CALIPER (FL125RCDM/RD/RMD/RCDF)FIG.54 REAR MASTER CYLINDER

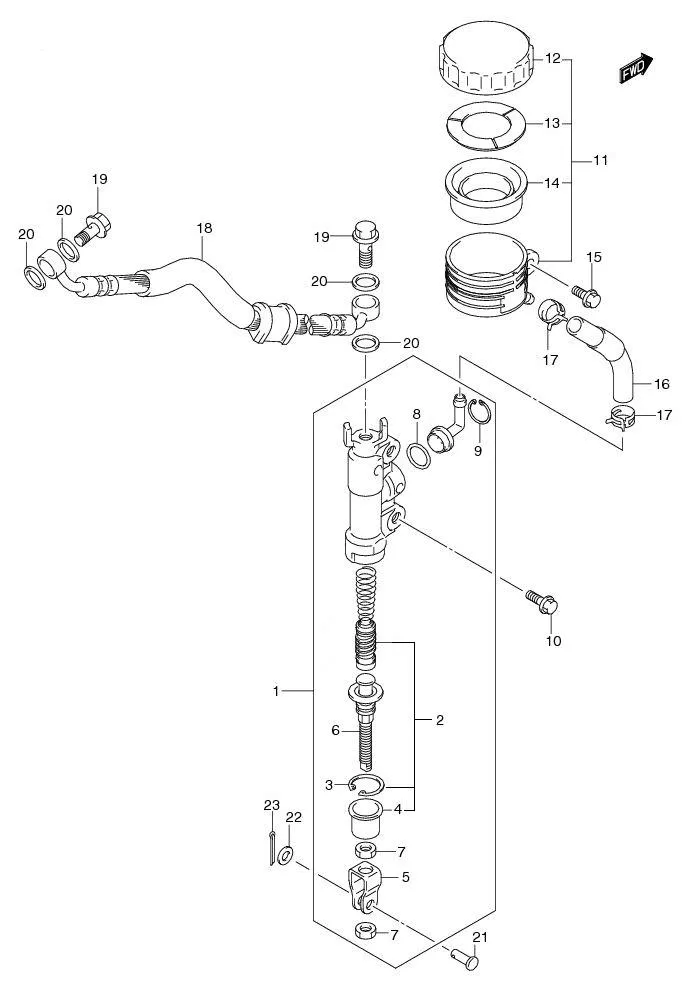

FIG.54 REAR MASTER CYLINDER

FIG.54 REAR MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 69600-16H00-000
SUB: 69600B16H00N000		 CYLINDER ASSY, REAR MASTER 1 Rp331.000
2 69600-04A00-000
SUB: 69600B04A00N000		 •PISTON 1 Rp76.500
3 DISCONTINUE
SUB: 51162-70040-000		 CIRCLIP 1 -
4 69691-00A00-000
SUB: 69691-00A00L000		 •BOOT 1 Rp13.500
5 69692-27A30-000
SUB: 69692-27A30L000		 •YOKE 1 Rp43.000
6 DISCONTINUE
SUB: 69670B16H00N000		 •ROD, PUSH 1 -
7 69693-05A00-000
SUB: 69693-05A00L000		 •NUT 2 Rp5.500
8 69686-34200-000
SUB: 69686-34200L000		 •O RING 1 Rp8.000
9 DISCONTINUE
SUB: 69674-00B20L000		 •CIRCLIP 1 -
10 01550-0620B-000
SUB: 01550B0620BN000		 BOLT 2 Rp3.500
11 69740-20G00-000
SUB: 69740B20G00N000		 TANK ASSY, RESERVOIR 1 Rp82.500
12 DISCONTINUE
SUB: 69669B20G00N000		 •CAP 1 -
13 59668-18441-000
SUB: 59668B18441N000		 •PLATE 1 Rp3.000
14 59667-18441-000
SUB: 59667B18441N000		 •DIAPHRAGM 1 Rp13.500
15 01550B0612BN000 SCREW, RESERVOIR TANK 1 Rp2.500
16 DISCONTINUE
SUB: 69730B16H00N000		 HOSE, RESERVOIR TANK 1 -
17 69735-38D00-000
SUB: 69735B38D00N000		 CLAMP, HOSE 2 Rp9.000
18 69480-16H00-000
SUB: 69480B16H00N000		 HOSE, REAR BRAKE 1 Rp91.500
19 09360-10062-000
SUB: 09360B10062N000		 BOLT 2 Rp13.000
20 09168-10033-000
SUB: 09168B10033N000		 WASHER 4 Rp8.500
21 09200-06037-000
SUB: 09200-06068-000		 PIN 1 Rp3.500
22 08322-0106B-000
SUB: 08322B0106BN000		 WASHER 1 Rp6.000
23 04111-2015A-000
SUB: 04111B2015AN000		 PIN, COTTER 1 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
