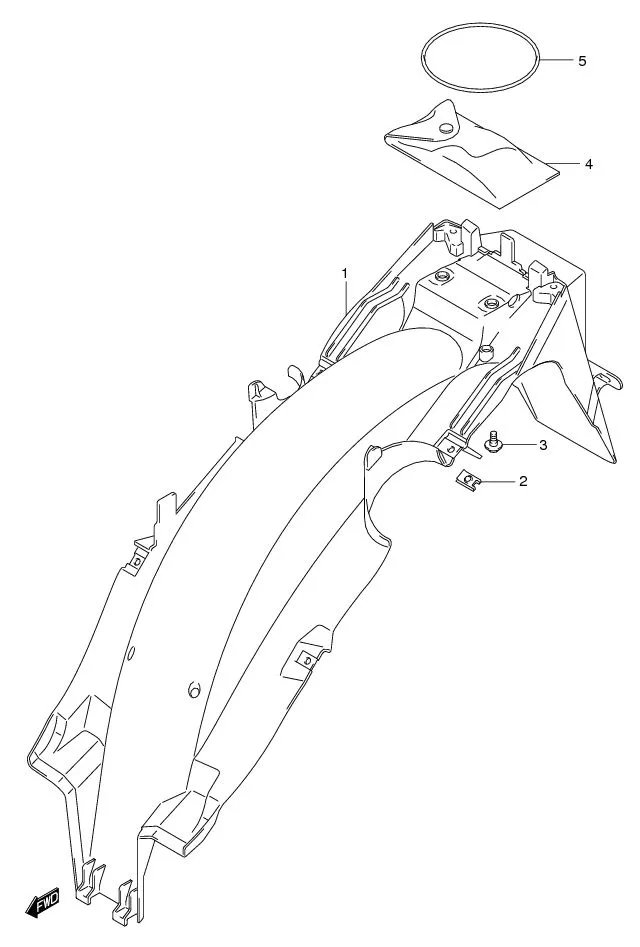

FIG.39 REAR FENDER

FIG.39 REAR FENDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	63111-16H20-000 SUB: 63111B16H20N000	FENDER, REAR	1	Rp61.500	FL125SC/SD
1-2	63111-16H30-000 SUB: 63111B16H30N000	FENDER, REAR	1	Rp59.500	FL125RCDM/RD/RMD/RCDF
2	09148-05038-000 SUB: 09148B05038N000	NUT	4	Rp4.000
3	61361-09G20-000 SUB: 61361B09G20N000	BOLT	2	Rp4.000
4	DISCONTINUE SUB: 09800B21005N000	TOOL ASSY	1	-
5-1	DISCONTINUE SUB: 47435B09G00N000	BAND, TOOL	1	-
5-2	DISCONTINUE SUB: 47435B16H00N000	BAND, TOOL	1	-	FL125RCDF ONLY

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
