SHOGUN (FL125)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.28 FRAME FIG.29 STAND FIG.30 FOOTREST FIG.31 FUEL TANK FIG.32 FRAME COVER FIG.33 FRONT LEG SHIELD FIG.34 CENTER LEG SHIELD FIG.35 FRONT FENDER FIG.36 HANDLE BAR FIG.37 HANDLE COVER FIG.38 HANDLE LEVER FIG.39 REAR FENDER FIG.40 LUGGAGE BOX FIG.41 LABEL FIG.42 SEAT FIG.43 FRONT FORK DAMPER (FL125SDK7/SCK7/SDK8/RCDFK8)FIG.43A FRONT FORK DAMPER (FL125RCDMK7/RDK8/RMDK8)FIG.44 FRONT FORK BRACKET FIG.45 FRONT WHEEL (FL125SD)FIG.46 FRONT WHEEL (FL125SC/RCDF)FIG.46A FRONT WHEEL (FL125RCDM/RD/RMD)FIG.47 FRONT CALIPER (FL125SD/SC/RCDF)FIG.47A FRONT CALIPER (FL125RCDM/RD/RMD)FIG.48 FRONT MASTER CYLINDER (FL125SD/SC/RCDF)FIG.48A FRONT MASTER CYLINDER (FL125RCDM/RD/RMD)FIG.49 REAR SWINGING ARM (FL125SD/SC)FIG.49A REAR SWINGING ARM (FL125RCDM/RD/RMD/RCDF)FIG.50 CHAINCASE FIG.51 REAR WHELL (FL125SD)FIG.52 REAR WHELL (FL125SC)FIG.52A REAR WHELL (FL125RCDM/RD/RMD/RCDF)FIG.53 REAR CALIPER (FL125RCDM/RD/RMD/RCDF)FIG.54 REAR MASTER CYLINDER

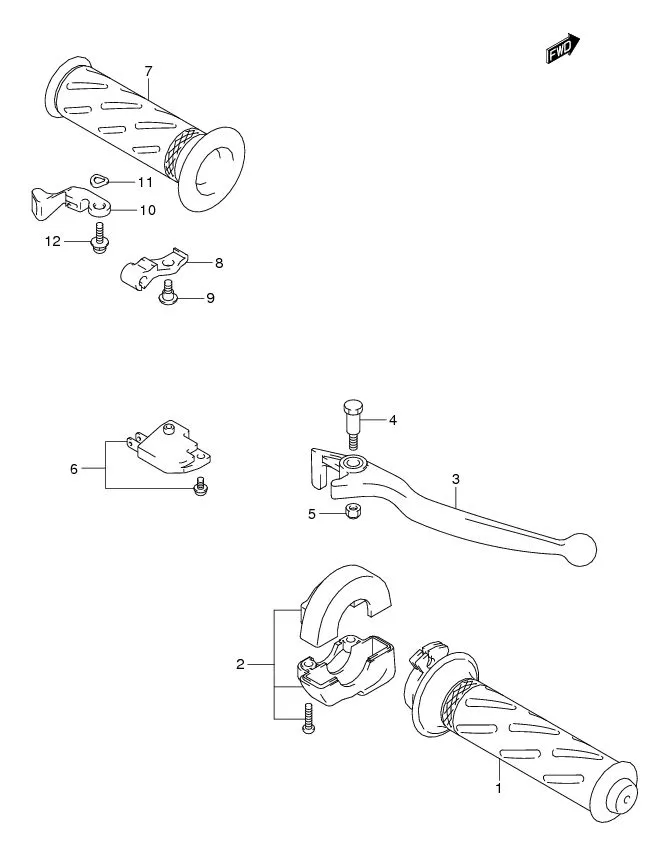

FIG.38 HANDLE LEVER

FIG.38 HANDLE LEVER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	57110-23F10-000 SUB: 57110-23F10L000	GRIP, THROTTLE	1	Rp32.500
2	57100-09G01-000 SUB: 57100B09G01N000	CASE ASSY, THROTTLE	1	Rp49.000
3	57300-46G10-000 SUB: 57300B46G10N000	LEVER, BRAKE	1	Rp44.000
4	DISCONTINUE SUB: 57431B29C10N000	•BOLT	1	-
5	08319-2106B-000 SUB: 08319B2106BN000	•NUT	1	Rp4.000
6	57460-41H00-000 SUB: 57460B17C01N000	SWITCH, STOP	1	Rp69.500
7	57211-22D01-000 SUB: 57211-22D01L000	GRIP, LH	1	Rp38.500
8	DISCONTINUE SUB: 58711B09G00N000	HOLDER, STARTER CABLE	1	-
9	09139-05057-000 SUB: 09139B05057N000	SCREW	1	Rp6.500
10	58721-23F00L000	LEVER, STARTER	1	Rp14.500
11	DISCONTINUE SUB: 09164B07001N000	WASHER	1	-
12	02112-7516A-000 SUB: 02112B7516AN000	SCREW	1	Rp7.000
13	57500-16H10-000 SUB: 57500B16H00N000	LEVER ASSY, CLUTCH	1	Rp100.500	FL125RCDM/RMD DRAWING NOT SHOWN

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
