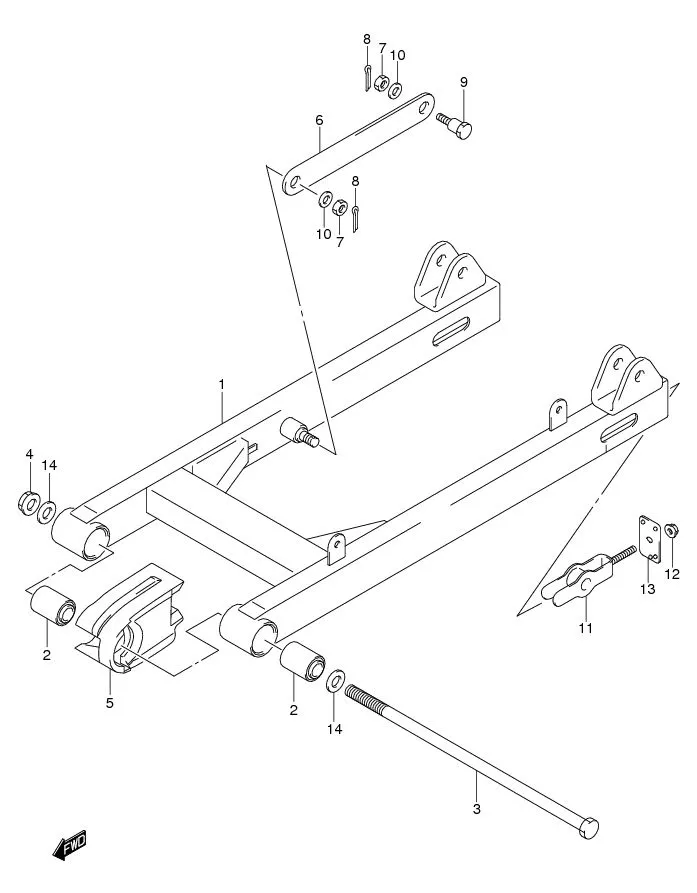

FIG.49 REAR SWINGING ARM (FL125SD/SC)

FIG.49 REAR SWINGING ARM (FL125SD/SC)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	61100-16H20-000 SUB: 61100B16H20N000	SWINGING ARM SET, REAR	1	Rp356.500
2	61230-16H00-000 SUB: 61230B16H00N000	BUSHING (10X23X35)	2	Rp22.500
3	61211-16H20-000 SUB: 61211B16H20N000	SHAFT, REAR SWINGING ARM	1	Rp28.000
4	08319-3112A-000 SUB: 08319B3112AN000	NUT	1	Rp7.000
5	61273-16H00-000 SUB: 61273B16H00N000	BUFFER, CHAIN TOUCH DEFENSE	1	Rp20.000
6	DISCONTINUE SUB: 64311B31C10N000	TORQUE LINK, REAR	1	-
7	09140-08008-000	NUT	2	Rp10.500
8	04111-2020A-000 SUB: 04111B2020AN000	COTTER PIN	2	Rp5.000
9	09111-08013-000 SUB: 09111B08013N000	BOLT (8X26.5)	1	Rp5.500
10	08322M0108A-000 SUB: 08322-0108B-000	WASHER	2	Rp5.500
11	61410-16H00-000 SUB: 61410B16H00N000	ADJUSTER, CHAIN	2	Rp36.000
12	08319-3106A-000 SUB: 08319B3106AN000	NUT	2	Rp6.500
13	61421-16H00-000 SUB: 61421B16H00N000	GUIDE, CHAIN ADJUSTER	2	Rp29.000
14	DISCONTINUE SUB: 09160B12118N000	WASHER	2	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
