SHOGUN (FL125)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.28 FRAME FIG.29 STAND FIG.30 FOOTREST FIG.31 FUEL TANK FIG.32 FRAME COVER FIG.33 FRONT LEG SHIELD FIG.34 CENTER LEG SHIELD FIG.35 FRONT FENDER FIG.36 HANDLE BAR FIG.37 HANDLE COVER FIG.38 HANDLE LEVER FIG.39 REAR FENDER FIG.40 LUGGAGE BOX FIG.41 LABEL FIG.42 SEAT FIG.43 FRONT FORK DAMPER (FL125SDK7/SCK7/SDK8/RCDFK8)FIG.43A FRONT FORK DAMPER (FL125RCDMK7/RDK8/RMDK8)FIG.44 FRONT FORK BRACKET FIG.45 FRONT WHEEL (FL125SD)FIG.46 FRONT WHEEL (FL125SC/RCDF)FIG.46A FRONT WHEEL (FL125RCDM/RD/RMD)FIG.47 FRONT CALIPER (FL125SD/SC/RCDF)FIG.47A FRONT CALIPER (FL125RCDM/RD/RMD)FIG.48 FRONT MASTER CYLINDER (FL125SD/SC/RCDF)FIG.48A FRONT MASTER CYLINDER (FL125RCDM/RD/RMD)FIG.49 REAR SWINGING ARM (FL125SD/SC)FIG.49A REAR SWINGING ARM (FL125RCDM/RD/RMD/RCDF)FIG.50 CHAINCASE FIG.51 REAR WHELL (FL125SD)FIG.52 REAR WHELL (FL125SC)FIG.52A REAR WHELL (FL125RCDM/RD/RMD/RCDF)FIG.53 REAR CALIPER (FL125RCDM/RD/RMD/RCDF)FIG.54 REAR MASTER CYLINDER

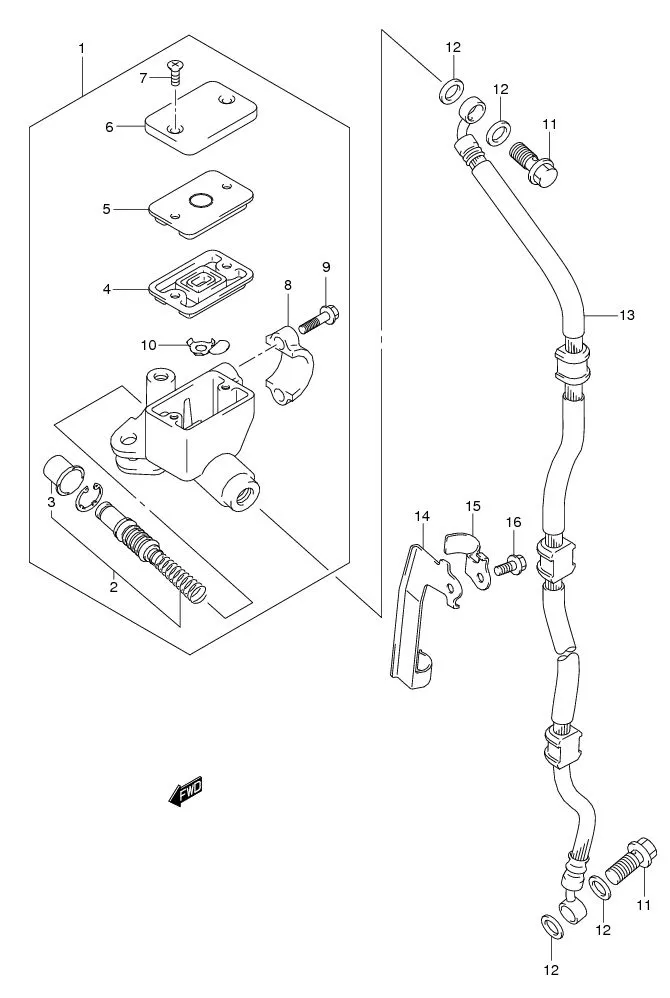

FIG.48A FRONT MASTER CYLINDER (FL125RCDM/RD/RMD)

FIG.48A FRONT MASTER CYLINDER (FL125RCDM/RD/RMD)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	59600-07H00-000 SUB: 59600B07H00N000	CYLINDER ASSY, FRONT MASTER	1	Rp897.000
2	59600-21810-000 SUB: 59600-21810L000	•PISTON/CUP SET	1	Rp73.500
3	59666-44300-000 SUB: 59666B44300N000	••BOOT	1	Rp16.000
4	59667-44B00-000 SUB: 59667-44B00L000	•DIAPHRAGM	1	Rp13.000
5	59668-21D20-000 SUB: 59668B21D20N000	•PLATE	1	Rp3.000
6	59669-21D20-000 SUB: 59669B21D20N000	•CAP	1	Rp40.000
7	69689-49300-000 SUB: 69689-49300L000	•SCREW	2	Rp3.000
8	59671-36500-000 SUB: 59671B36500N000	•HOLDER	1	Rp23.000
9	59675-02FA0-000 SUB: 59675B02FA0N000	•BOLT	2	Rp9.000
10	59664-32F00-000 SUB: 59664B32F00N000	•PROTECTOR	1	Rp20.500
11	09360-10062-000 SUB: 09360B10062N000	BOLT, BRAKE FLUID	2	Rp13.000
12	09168-10033-000 SUB: 09168B10033N000	WASHER, BRAKE FLUID	4	Rp8.500
13	DISCONTINUE SUB: 59480B16H20N000	HOSE, FRONT BRAKE	1	-
14	DISCONTINUE SUB: 59245B16H00N000	CLAMP, FR BRAKE HOSE NO.1	1	-
15	DISCONTINUE SUB: 59246B16H00N000	CLAMP, FR BRAKE HOSE NO.2	1	-
16	01550B0612BN000	BOLT, BRAKE HOSE CLAMP	1	Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
