SHOGUN (FL125)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.28 FRAME FIG.29 STAND FIG.30 FOOTREST FIG.31 FUEL TANK FIG.32 FRAME COVER FIG.33 FRONT LEG SHIELD FIG.34 CENTER LEG SHIELD FIG.35 FRONT FENDER FIG.36 HANDLE BAR FIG.37 HANDLE COVER FIG.38 HANDLE LEVER FIG.39 REAR FENDER FIG.40 LUGGAGE BOX FIG.41 LABEL FIG.42 SEAT FIG.43 FRONT FORK DAMPER (FL125SDK7/SCK7/SDK8/RCDFK8)FIG.43A FRONT FORK DAMPER (FL125RCDMK7/RDK8/RMDK8)FIG.44 FRONT FORK BRACKET FIG.45 FRONT WHEEL (FL125SD)FIG.46 FRONT WHEEL (FL125SC/RCDF)FIG.46A FRONT WHEEL (FL125RCDM/RD/RMD)FIG.47 FRONT CALIPER (FL125SD/SC/RCDF)FIG.47A FRONT CALIPER (FL125RCDM/RD/RMD)FIG.48 FRONT MASTER CYLINDER (FL125SD/SC/RCDF)FIG.48A FRONT MASTER CYLINDER (FL125RCDM/RD/RMD)FIG.49 REAR SWINGING ARM (FL125SD/SC)FIG.49A REAR SWINGING ARM (FL125RCDM/RD/RMD/RCDF)FIG.50 CHAINCASE FIG.51 REAR WHELL (FL125SD)FIG.52 REAR WHELL (FL125SC)FIG.52A REAR WHELL (FL125RCDM/RD/RMD/RCDF)FIG.53 REAR CALIPER (FL125RCDM/RD/RMD/RCDF)FIG.54 REAR MASTER CYLINDER

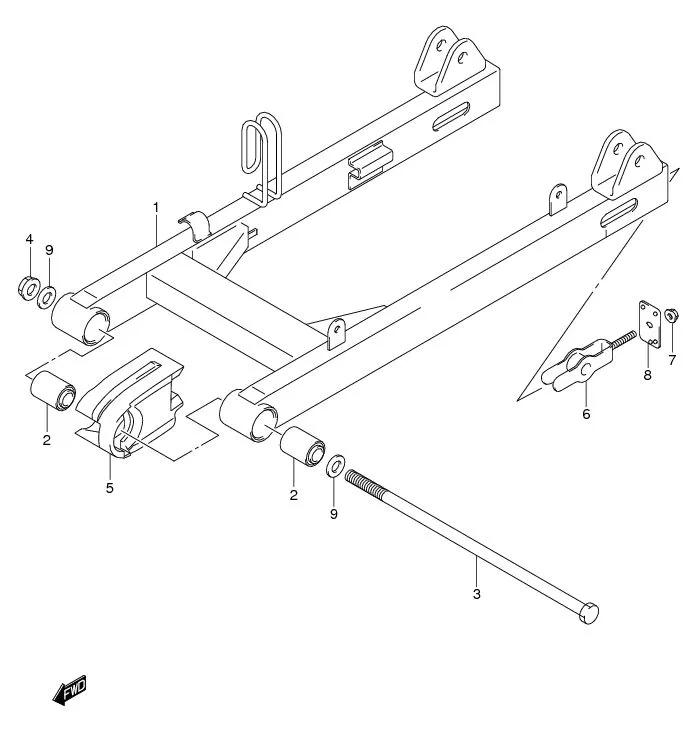

FIG.49A REAR SWINGING ARM (FL125RCDM/RD/RMD/RCDF)

FIG.49A REAR SWINGING ARM (FL125RCDM/RD/RMD/RCDF)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	61100-16H00-000 SUB: 61100B16H00N000	SWINGING ARM SET, REAR	1	Rp279.500
2	61230-16H00-000 SUB: 61230B16H00N000	BUSHING (10X23X35)	2	Rp22.500
3	61211-16H20-000 SUB: 61211B16H20N000	SHAFT, REAR SWINGING ARM	1	Rp28.000
4	08319-3112A-000 SUB: 08319B3112AN000	NUT	1	Rp7.000
5	61273-16H00-000 SUB: 61273B16H00N000	BUFFER, CHAIN TOUCH DEFENSE	1	Rp20.000
6	61410-16H00-000 SUB: 61410B16H00N000	ADJUSTER, CHAIN	2	Rp36.000
7	08319-3106A-000 SUB: 08319B3106AN000	NUT	2	Rp6.500
8	61421-16H00-000 SUB: 61421B16H00N000	GUIDE, CHAIN ADJUSTER	2	Rp29.000
9	DISCONTINUE SUB: 09160B12118N000	WASHER	2	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
