SHOGUN (FL125)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.28 FRAME FIG.29 STAND FIG.30 FOOTREST FIG.31 FUEL TANK FIG.32 FRAME COVER FIG.33 FRONT LEG SHIELD FIG.34 CENTER LEG SHIELD FIG.35 FRONT FENDER FIG.36 HANDLE BAR FIG.37 HANDLE COVER FIG.38 HANDLE LEVER FIG.39 REAR FENDER FIG.40 LUGGAGE BOX FIG.41 LABEL FIG.42 SEAT FIG.43 FRONT FORK DAMPER (FL125SDK7/SCK7/SDK8/RCDFK8)FIG.43A FRONT FORK DAMPER (FL125RCDMK7/RDK8/RMDK8)FIG.44 FRONT FORK BRACKET FIG.45 FRONT WHEEL (FL125SD)FIG.46 FRONT WHEEL (FL125SC/RCDF)FIG.46A FRONT WHEEL (FL125RCDM/RD/RMD)FIG.47 FRONT CALIPER (FL125SD/SC/RCDF)FIG.47A FRONT CALIPER (FL125RCDM/RD/RMD)FIG.48 FRONT MASTER CYLINDER (FL125SD/SC/RCDF)FIG.48A FRONT MASTER CYLINDER (FL125RCDM/RD/RMD)FIG.49 REAR SWINGING ARM (FL125SD/SC)FIG.49A REAR SWINGING ARM (FL125RCDM/RD/RMD/RCDF)FIG.50 CHAINCASE FIG.51 REAR WHELL (FL125SD)FIG.52 REAR WHELL (FL125SC)FIG.52A REAR WHELL (FL125RCDM/RD/RMD/RCDF)FIG.53 REAR CALIPER (FL125RCDM/RD/RMD/RCDF)FIG.54 REAR MASTER CYLINDER

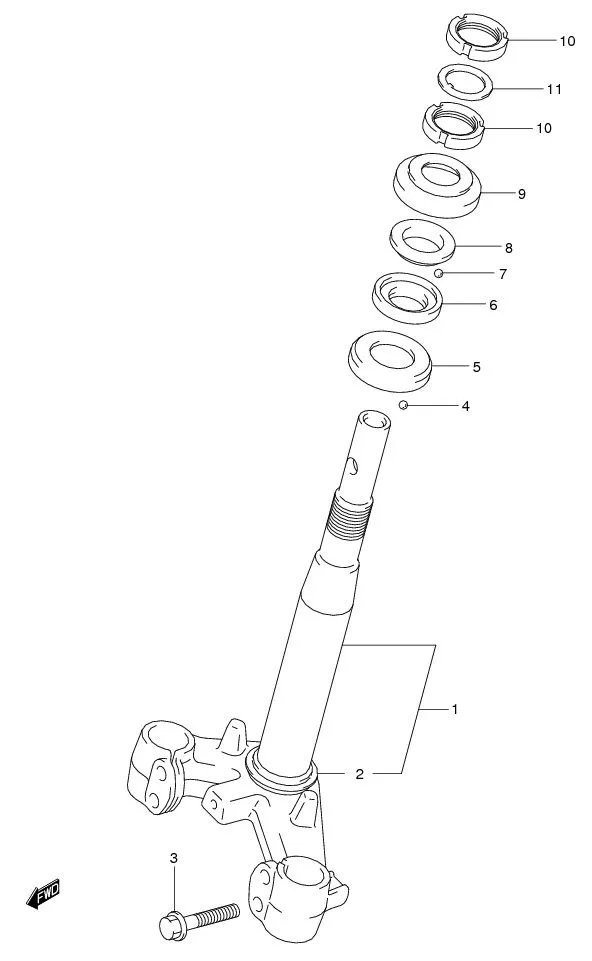

FIG.44 FRONT FORK BRACKET

FIG.44 FRONT FORK BRACKET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 51410B16H10N000	BRACKET, FRONT FORK UNDER	1	-
2	51622-41H00-000 SUB: 51622B35400N000	•RACE, OUTER LOWER	1	Rp56.500
3	DISCONTINUE SUB: 51451B42G00N000	BOLT	4	-
4	06111-06004-000 SUB: 06111B06003N000	BALL, LOWER	27	Rp1.000
5	51612-09G00-000 SUB: 51612B09G00N000	RACE, INNDER LOWER	1	Rp36.000
6	51611-09G00-000 SUB: 51611B09G10N000	RACE, INNER UPPER	1	Rp29.000
7	06111-06004-000 SUB: 06111B06003N000	BALL, UPPER	22	Rp1.000
8	51621-07H00-000 SUB: 51621B07H00N000	RACE, OUTER UPPER	1	Rp22.000
9	51643-06001-000 SUB: 51643-06001L000	SEAL, DUST UPPER	1	Rp3.000
10	51631-05000-000 SUB: 51631B05000N000	NUT, STEERING STEM	2	Rp20.000
11	09166-24001-000 SUB: 09166B24001N000	WASHER	1	Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
