SHOGUN (FL125)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.28 FRAME FIG.29 STAND FIG.30 FOOTREST FIG.31 FUEL TANK FIG.32 FRAME COVER FIG.33 FRONT LEG SHIELD FIG.34 CENTER LEG SHIELD FIG.35 FRONT FENDER FIG.36 HANDLE BAR FIG.37 HANDLE COVER FIG.38 HANDLE LEVER FIG.39 REAR FENDER FIG.40 LUGGAGE BOX FIG.41 LABEL FIG.42 SEAT FIG.43 FRONT FORK DAMPER (FL125SDK7/SCK7/SDK8/RCDFK8)FIG.43A FRONT FORK DAMPER (FL125RCDMK7/RDK8/RMDK8)FIG.44 FRONT FORK BRACKET FIG.45 FRONT WHEEL (FL125SD)FIG.46 FRONT WHEEL (FL125SC/RCDF)FIG.46A FRONT WHEEL (FL125RCDM/RD/RMD)FIG.47 FRONT CALIPER (FL125SD/SC/RCDF)FIG.47A FRONT CALIPER (FL125RCDM/RD/RMD)FIG.48 FRONT MASTER CYLINDER (FL125SD/SC/RCDF)FIG.48A FRONT MASTER CYLINDER (FL125RCDM/RD/RMD)FIG.49 REAR SWINGING ARM (FL125SD/SC)FIG.49A REAR SWINGING ARM (FL125RCDM/RD/RMD/RCDF)FIG.50 CHAINCASE FIG.51 REAR WHELL (FL125SD)FIG.52 REAR WHELL (FL125SC)FIG.52A REAR WHELL (FL125RCDM/RD/RMD/RCDF)FIG.53 REAR CALIPER (FL125RCDM/RD/RMD/RCDF)FIG.54 REAR MASTER CYLINDER

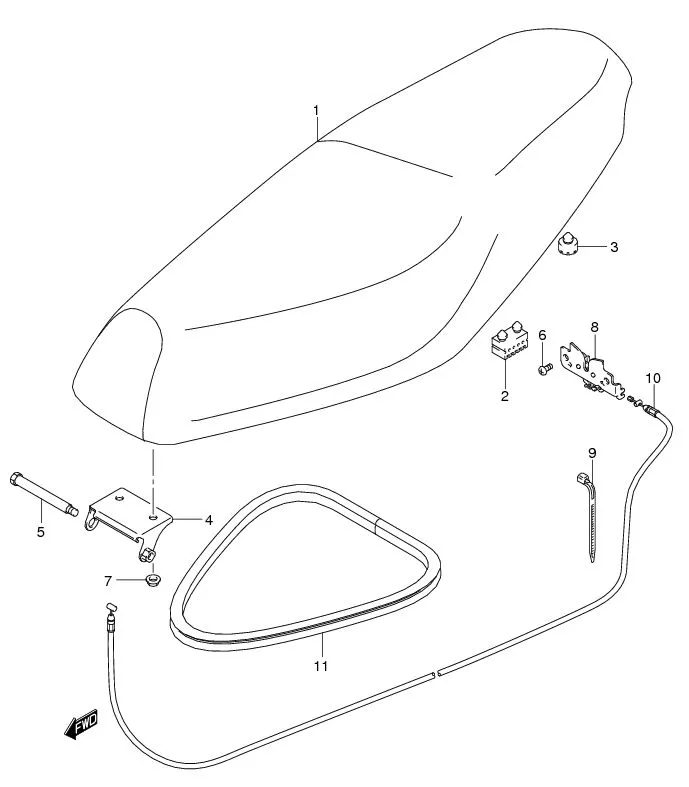

FIG.42 SEAT

FIG.42 SEAT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	45100-16H00-000 SUB: 45100B16H00N000	SEAT ASSY	1	Rp282.500	FL125SDK7/SCK7/SDK8/RCDFK8
1-2	45100-16H20-000 SUB: 45100B16H20N000	SEAT ASSY	1	Rp250.000	FL125RCDMK7/RMDK8
1-3	45100-16H10-000 SUB: 45100B16H10N000	SEAT ASSY	1	Rp255.500	FL125RDK8
2	45149-09G00-000 SUB: 45149B09G00N000	•CUSHION, FRONT	2	Rp9.500
3	DISCONTINUE SUB: 45148B20G00N000	•CUSHION, REAR	4	-
4	DISCONTINUE SUB: 45250B16H00N000	BRACKET, SEAT HINGE	1	-
5	DISCONTINUE SUB: 45231B16H00N000	BOLT, SEAT HINGE	1	-
6	02112-0610B-000 SUB: 02112B0610BN000	SCREW	2	Rp5.500
7	08310-0006B-000 SUB: 08310B0006BN000	NUT	2	Rp4.500
8	45700-47G00-000 SUB: 45700B47G00N000	BRACKET, STRIKER SUPPORT	1	Rp31.500
9	09407-18402-000 SUB: 09407B18402N000	GUIDE, SEAT LOCK CABLE	3	Rp8.000
10	45280-16H21-000 SUB: 45280B16H20N000	CABLE, SEAT LOCK	1	Rp54.500
11	DISCONTINUE SUB: 45211B47G00N000	MOLDING, SEAT	1	-
12-1	45160-16H00-000 SUB: 45160B16H00N000	COVER SEAT ASSY (VACUM)	1	Rp117.000	FL125SDK7/SCK7/SDK8/RCDFK8
12-2	45160-16H10-000 SUB: 45160B16H10N000	COVER SEAT ASSY (BLACK GRAY)	1	Rp119.500	FL125RCMDK7/RMDK8
12-3	45160-16H20-000 SUB: 45160B16H20N000	COVER SEAT ASSY (BLACK GRAY LOGO SUZUKI)	1	Rp119.500	FL125RDK8

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
