SHOGUN (FL125)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.28 FRAME FIG.29 STAND FIG.30 FOOTREST FIG.31 FUEL TANK FIG.32 FRAME COVER FIG.33 FRONT LEG SHIELD FIG.34 CENTER LEG SHIELD FIG.35 FRONT FENDER FIG.36 HANDLE BAR FIG.37 HANDLE COVER FIG.38 HANDLE LEVER FIG.39 REAR FENDER FIG.40 LUGGAGE BOX FIG.41 LABEL FIG.42 SEAT FIG.43 FRONT FORK DAMPER (FL125SDK7/SCK7/SDK8/RCDFK8)FIG.43A FRONT FORK DAMPER (FL125RCDMK7/RDK8/RMDK8)FIG.44 FRONT FORK BRACKET FIG.45 FRONT WHEEL (FL125SD)FIG.46 FRONT WHEEL (FL125SC/RCDF)FIG.46A FRONT WHEEL (FL125RCDM/RD/RMD)FIG.47 FRONT CALIPER (FL125SD/SC/RCDF)FIG.47A FRONT CALIPER (FL125RCDM/RD/RMD)FIG.48 FRONT MASTER CYLINDER (FL125SD/SC/RCDF)FIG.48A FRONT MASTER CYLINDER (FL125RCDM/RD/RMD)FIG.49 REAR SWINGING ARM (FL125SD/SC)FIG.49A REAR SWINGING ARM (FL125RCDM/RD/RMD/RCDF)FIG.50 CHAINCASE FIG.51 REAR WHELL (FL125SD)FIG.52 REAR WHELL (FL125SC)FIG.52A REAR WHELL (FL125RCDM/RD/RMD/RCDF)FIG.53 REAR CALIPER (FL125RCDM/RD/RMD/RCDF)FIG.54 REAR MASTER CYLINDER

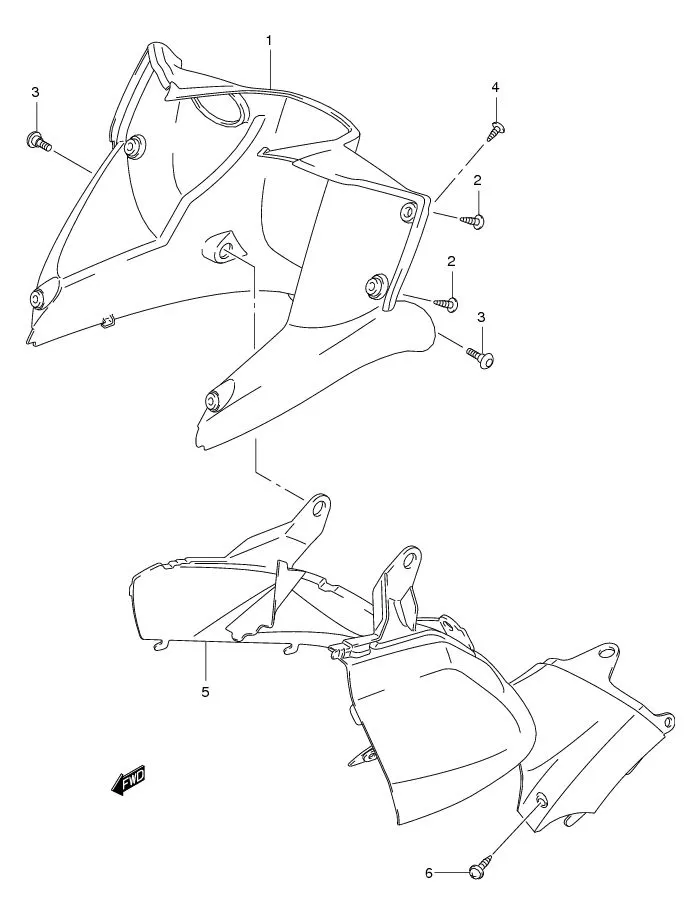

FIG.34 CENTER LEG SHIELD

FIG.34 CENTER LEG SHIELD

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	48131-16H00-334 SUB: 48131B16H00N334	SHIELD LEG CTR FR (M BLUE PEARL)	1	Rp86.000	FL125SD
1-2	DISCONTINUE SUB: 48131B16H00NX0G	SHIELD LEG CTR FR (BRILIANT WHITE)	1	-	FL125SD
1-3	48131-16H00-X0H SUB: 48131B16H00NX0H	SHIELD LEG CTR FR (TITAN BLACK)	1	Rp86.000	FL125SD
1-4	48131-16H00-X1J SUB: 48131B16H00NX1J	SHIELD LEG CTR FR (AUTUMN RED)	1	Rp86.000	FL125SD
1-5	48131-16H00-X0N SUB: 48131B16H00NX0N	SHIELD LEG CTR FR (BLUE SHINE BLACK)	1	Rp86.000	FL125RD
1-6	48131-16H00-X2J SUB: 48131B16H00NX2J	SHIELD LEG CTR FR (MACHO BRIGHT BLUE)	1	Rp86.000	FL125RD
1-7	DISCONTINUE SUB: 48131B16H00NX8D	SHIELD LEG CTR FR (ICE SILVER MET)	1	-	FL125RD
1-8	48131-16H00-X4D SUB: 48131B16H00NX4D	SHIELD LEG CTR FR (DARK GREY MET)	1	Rp86.000	FL125RMD
2	03541-1516A-000 SUB: 03541B1516AN000	SCREW, UPPER	6	Rp5.500
3	09139-06145-000 SUB: 09139B06145N000	SCREW, SIDE CENTER	2	Rp6.500
4	53274-09G00-000 SUB: 53274B09G00N000	SCREW, LOWER	1	Rp7.000
5-1	48132-16H20-000 SUB: 48132B16H20N000	SHIELD, LEG CENTER REAR	1	Rp54.500
5-2	48132-16H10-000 SUB: 48132B16H10N000	SHIELD, LEG CENTER REAR	1	Rp54.500	FL125RCDF ONLY
6	03541-0516A-000 SUB: 03541B0516AN000	SCREW	2	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
