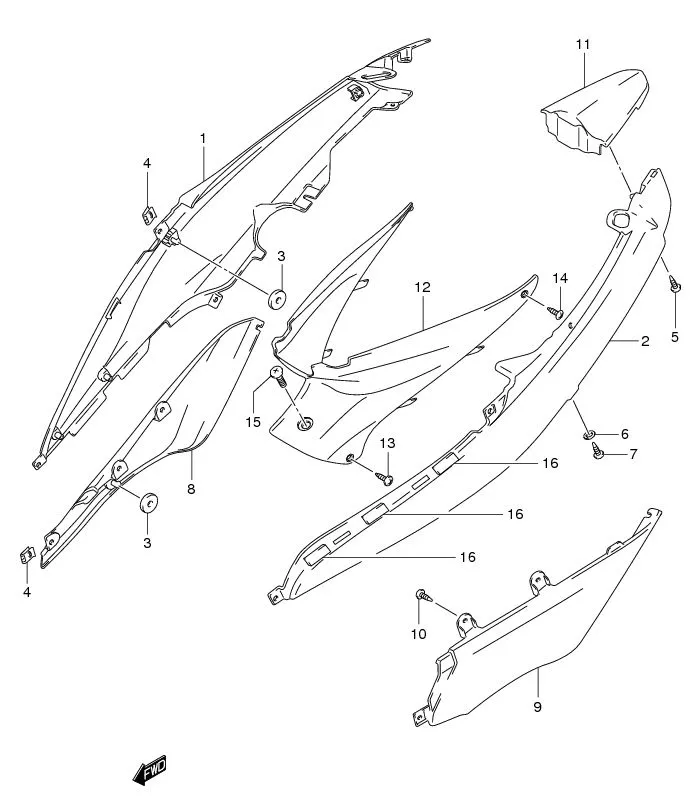

FIG.32 FRAME COVER

FIG.32 FRAME COVER
No No. Part Description Qty Price Per Pcs Remarks
1-2 47111-16H10-X0G
SUB: 47111B16H10NX0G		 COVER FRAME RH (BRILIANT WHITE) 1 Rp135.000 FL125SD
1-1 47111-16H10-334
SUB: 47111B16H10N334		 COVER FRAME RH (M BLUE PEARL) 1 Rp137.500 FL125SD
1-13 47111-16H10-YVE
SUB: 47111B16H10NYVE		 COVER FRAME RH (MARINE BLUE) 1 Rp137.500 FL125SD ; FL125RD ; FL125RMD
1-12 DISCONTINUE
SUB: 47111B16H10NX9C		 COVER FRAME RH (MAJESTY GOLD) 1 - FL125RMD
1-11 DISCONTINUE
SUB: 47111B16H10NX6F		 COVER FRAME RH (MAX ORANGE MET) 1 - FL125RMD
1-10 DISCONTINUE
SUB: 47111B16H10NX4D		 COVER FRAME RH (DARK GREY MET) 1 - FL125RMD
1-9 DISCONTINUE
SUB: 47111B16H10NX6G		 COVER FRAME RH (MIDNIGHT ORANGE) 1 - FL125RCDF
1-8 DISCONTINUE
SUB: 47111B16H10NYTB		 COVER FRAME RH (SUMMER RED) 1 - FL125RD
1-7 DISCONTINUE
SUB: 47111B16H10NX8D		 COVER FRAME RH (ICE SILVER MET) 1 - FL125RD
1-6 47111-16H10-X2J
SUB: 47111B16H10NX2J		 COVER FRAME RH (MACHO BLUE BRIGHT) 1 Rp137.500 FL125RD
1-5 DISCONTINUE
SUB: 47111B16H10NX0N		 COVER FRAME RH (BLUE SHINE BLACK) 1 - FL125RD
1-4 47111-16H10-X1J
SUB: 47111B16H10NX1J		 COVER FRAME RH (AUTUMN RED) 1 Rp137.500 FL125SD
1-3 47111-16H10-X0H
SUB: 47111B16H10NX0H		 COVER FRAME RH (TITAN BLACK) 1 Rp137.500 FL125SD
2-6 47211-16H00-X2J
SUB: 47211B16H00NX2J		 COVER FRAME LH (MACHO BLUE BRIGHT) 1 Rp137.500 FL125RD
2-13 47211B16H00NYVE COVER FRAME LH (MARINE BLUE) 1 - FL125SD ; FL125RD ; FL125RMD
2-12 DISCONTINUE
SUB: 47211B16H00NX9C		 COVER FRAME LH (MAJESTY GOLD) 1 - FL125RMD
2-11 DISCONTINUE
SUB: 47211B16H00NX6F		 COVER FRAME LH (MAX ORANGE MET) 1 - FL125RMD
2-10 47211-16H00-X4D
SUB: 47211B16H00NX4D		 COVER FRAME LH (DARK GREY MET) 1 Rp135.000 FL125RMD
2-9 47211-16H00-X6G
SUB: 47211B16H00NX6G		 COVER FRAME LH (MIDNIGHT ORANGE) 1 Rp135.000 FL125RCDF
2-8 47211B16H00NYTB COVER FRAME LH (SUMMER RED) 1 - FL125RD
2-7 DISCONTINUE
SUB: 47211B16H00NX8D		 COVER FRAME LH (ICE SILVER MET) 1 - FL125RD
2-5 DISCONTINUE
SUB: 47211B16H00NX0N		 COVER FRAME LH (BLUE SHINE BLACK) 1 - FL125RD
2-4 47211-16H00-X1J
SUB: 47211B16H00NX1J		 COVER FRAME LH (AUTUMN RED) 1 Rp137.500 FL125SD
2-3 47211-16H00-X0H
SUB: 47211B16H00NX0H		 COVER FRAME LH (TITAN BLACK) 1 Rp137.500 FL125SD
2-2 DISCONTINUE
SUB: 47211B16H00NX0G		 COVER FRAME LH (BRILIANT WHITE) 1 - FL125SD
2-1 47211-16H00-334
SUB: 47211B16H00N334		 COVER FRAME LH (M BLUE PEARL) 1 Rp137.500 FL125SD
3 48169-12JA0-000
SUB: 09320B08018N000		 CUSHION 4 Rp15.000
4 09148-05038-000
SUB: 09148B05038N000		 NUT 6 Rp4.000
5 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 4 Rp3.500
6 47245-07H00-000 WASHER 2 Rp40.000
7 03541-0520A-000
SUB: 03541B0520AN000		 SCREW 2 Rp3.500
8-4 DISCONTINUE
SUB: 47112B16H10NX0N		 COVER FRAME LWR RH (BLUE SHINE BLACK) 1 - FL125RCDM/RD/RMD/RCDF
8-9 DISCONTINUE
SUB: 47112B16H10NYVE		 COVER FRAME LWR RH (MARINE BLUE) 1 - FL125RCDM/RD/RMD/RCDF
8-8 47112-16H10-YUL
SUB: 47112B16H10NYUL		 COVER FRAME LWR RH (SUMMER RED) 1 Rp109.500 FL125RCDM/RD/RMD/RCDF
8-7 47112-16H10-X4D
SUB: 47112B16H10NX4D		 COVER FRAME LWR RH (DARK GREY) 1 Rp107.500 FL125RCDM/RD/RMD/RCDF
8-6 47112-16H10-X2J
SUB: 47112B16H10NX2J		 COVER FRAME LWR RH (MACHO BRIGHT BLUE) 1 Rp109.500 FL125RCDM/RD/RMD/RCDF
8-3 47112-16H10-X0H
SUB: 47112B16H10NX0H		 COVER FRAME LWR RH (TITAN BLACK) 1 Rp109.500 FL125RCDM/RD/RMD/RCDF
8-2 47112-16H10-X0G
SUB: 47112B16H10NX0G		 COVER FRAME LWR RH (BRILIANT WHITE) 1 Rp109.500 FL125RCDM/RD/RMD/RCDF
8-1 47112-16H00-X0H
SUB: 47112B16H00NX0H		 COVER FRAME LWR RH (TITAN BLACK) 1 Rp109.500 FL125SC/SD
8-5 47112-16H10-X1J
SUB: 47112B16H10NX1J		 COVER FRAME LWR RH (AUTUMN RED MET) 1 Rp115.500 FL125RCDM/RD/RMD/RCDF
9-7 47212-16H10-YUL
SUB: 47212B16H10NYUL		 COVER FRAME LWR LH (SUMMER RED) 1 Rp109.500
9-8 DISCONTINUE
SUB: 47212B16H10NYVE		 COVER FRAME LWR LH (MARINE BLUE) 1 -
9-6 DISCONTINUE
SUB: 47212B16H10NX4D		 COVER FRAME LWR LH (DARK GREY MET) 1 -
9-5 47212-16H10-X2J
SUB: 47212B16H10NX2J		 COVER FRAME LWR LH (MACHO BRIGHT BLUE) 1 Rp109.500
9-4 47212-16H10-X1J
SUB: 47212B16H10NX1J		 COVER FRAME LWR LH (AUTUMN RED MET) 1 Rp115.500
9-3 47212-16H10-X0N
SUB: 47212B16H10NX0N		 COVER FRAME LWR LH (BLUE SHINE BLACK) 1 Rp107.500
9-2 47212-16H10-X0H
SUB: 47212B16H10NX0H		 COVER FRAME LWR LH (TITAN BLACK) 1 Rp109.500
9-1 47212-16H10-X0G
SUB: 47212B16H10NX0G		 COVER FRAME LWR LH (BRILIANT WHITE) 1 Rp109.500
10 03541-0512A-000
SUB: 03541B0512AN000		 SCREW 4 Rp3.500
11-4 47311-16H00-X1J
SUB: 47311B16H00NX1J		 COVER FRAME CTR (AUTUMN RED) 1 Rp45.000 FL125SD
11-13 DISCONTINUE
SUB: 47311B16H00NYVE		 COVER FRAME CTR (MARINE BLUE) 1 - FL125SD ; FL125RD ; FL125RMD
11-12 47311-16H00-X6G
SUB: 47311B16H00NX6G		 COVER FRAME CTR (MIDNIGHT ORANGE) 1 Rp45.000 FL125RCDF
11-11 DISCONTINUE
SUB: 47311B16H00NX9C		 COVER FRAME CTR (MAJESTY GOLD) 1 - FL125RMD
11-10 47311-16H00-X6F
SUB: 47311B16H00NX6F		 COVER FRAME CTR (MAX ORANGE MET) 1 Rp45.000 FL125RMD
11-9 DISCONTINUE
SUB: 47311B16H00NX4D		 COVER FRAME CTR (DARK GREY MET) 1 - FL125RMD
11-8 DISCONTINUE
SUB: 47311B16H00NYTB		 COVER FRAME CTR (SUMMER RED) 1 - FL125RD
11-7 DISCONTINUE
SUB: 47311B16H00NX8D		 COVER FRAME CTR (ICE SILVER MET) 1 - FL125RD
11-6 47311-16H00-X2J
SUB: 47311B16H00NX2J		 COVER FRAME CTR (MACHO BRIGHT BLUE) 1 Rp45.000 FL125RD
11-5 47311-16H00-X0N
SUB: 47311B16H00NX0N		 COVER FRAME CTR (BLUE SHINE BLACK) 1 Rp45.000 FL125RD
11-3 47311-16H00-X0H
SUB: 47311B16H00NX0H		 COVER FRAME CTR (TITAN BLACK) 1 Rp45.000 FL125SD
11-2 47311-16H00-X0G
SUB: 47311B16H00NX0G		 COVER FRAME CTR (BRILAINT WHITE) 1 Rp45.000 FL125SD
11-1 47311-16H00-334
SUB: 47311B16H00N334		 COVER FRAME CTR (M BLUE PEARL 1 Rp45.000 FL125SD
12-1 47511-16H20-000
SUB: 47511B16H20N000		 COVER, FRONT 1 Rp42.000
12-2 47511-16H10-000
SUB: 47511B16H10N000		 COVER, FRONT 1 Rp43.000 FL125RCDF ONLY
13 03541-0516A-000
SUB: 03541B0516AN000		 SCREW, FRONT 2 Rp3.500
14 03541-0512A-000
SUB: 03541B0512AN000		 SCREW, REAR 2 Rp3.500
15 53274-09G00-000
SUB: 53274B09G10N000		 SCREW, CENTER 1 Rp7.000
16 DISCONTINUE
SUB: 48135B47G00N000		 CUSHION, COVER FRONT 12 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
