SHOGUN (FL125)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.28 FRAME FIG.29 STAND FIG.30 FOOTREST FIG.31 FUEL TANK FIG.32 FRAME COVER FIG.33 FRONT LEG SHIELD FIG.34 CENTER LEG SHIELD FIG.35 FRONT FENDER FIG.36 HANDLE BAR FIG.37 HANDLE COVER FIG.38 HANDLE LEVER FIG.39 REAR FENDER FIG.40 LUGGAGE BOX FIG.41 LABEL FIG.42 SEAT FIG.43 FRONT FORK DAMPER (FL125SDK7/SCK7/SDK8/RCDFK8)FIG.43A FRONT FORK DAMPER (FL125RCDMK7/RDK8/RMDK8)FIG.44 FRONT FORK BRACKET FIG.45 FRONT WHEEL (FL125SD)FIG.46 FRONT WHEEL (FL125SC/RCDF)FIG.46A FRONT WHEEL (FL125RCDM/RD/RMD)FIG.47 FRONT CALIPER (FL125SD/SC/RCDF)FIG.47A FRONT CALIPER (FL125RCDM/RD/RMD)FIG.48 FRONT MASTER CYLINDER (FL125SD/SC/RCDF)FIG.48A FRONT MASTER CYLINDER (FL125RCDM/RD/RMD)FIG.49 REAR SWINGING ARM (FL125SD/SC)FIG.49A REAR SWINGING ARM (FL125RCDM/RD/RMD/RCDF)FIG.50 CHAINCASE FIG.51 REAR WHELL (FL125SD)FIG.52 REAR WHELL (FL125SC)FIG.52A REAR WHELL (FL125RCDM/RD/RMD/RCDF)FIG.53 REAR CALIPER (FL125RCDM/RD/RMD/RCDF)FIG.54 REAR MASTER CYLINDER

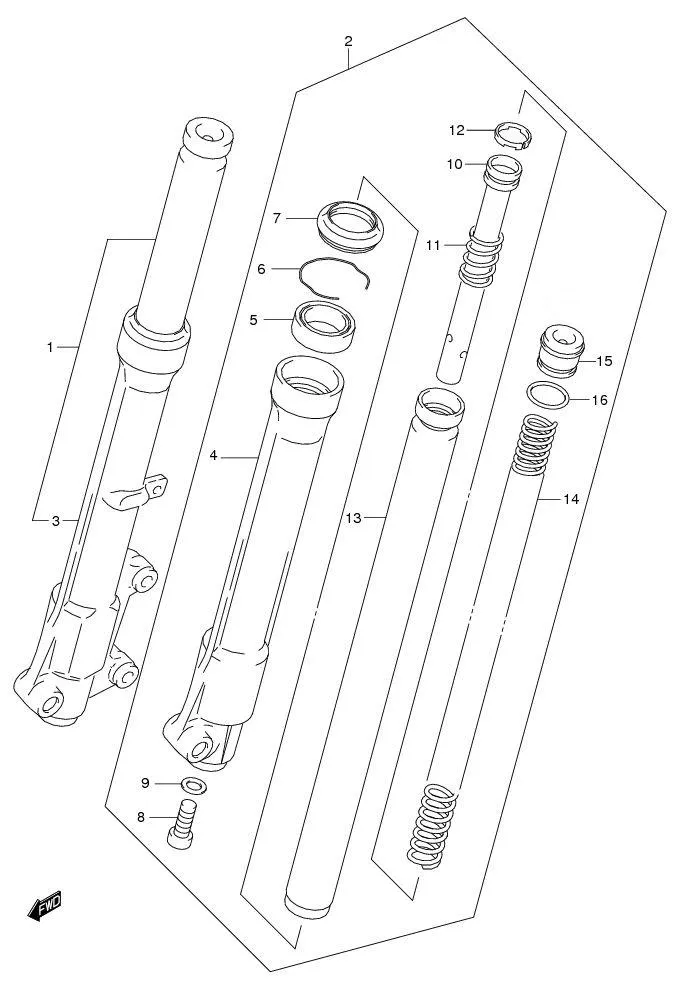

FIG.43 FRONT FORK DAMPER (FL125SDK7/SCK7/SDK8/RCDFK8)

FIG.43 FRONT FORK DAMPER (FL125SDK7/SCK7/SDK8/RCDFK8)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 51103B16H10N000	DAMPER ASSY, FRONT FORK RH (SILVER)	1	-
2	DISCONTINUE SUB: 51104B16H10N000	DAMPER ASSY, FRONT FORK LH (SILVER)	1	-
3	DISCONTINUE SUB: 51130B16H10N000	•TUBE, OUTER RH	1	-
4	DISCONTINUE SUB: 51140B16H10N000	•TUBE, OUTER LH	1	-
5	51153-23F00-000 SUB: 51153-23F00L000	••SEAL, OIL	2	Rp27.000
6	51156-43010-000 SUB: 51156B43010N000	••RING, SNAP	2	Rp6.000
7	51173-23F00-000 SUB: 51173-23F00L000	••SEAL, DUST	2	Rp41.500
8	51147-16510-000 SUB: 51147-16510L000	•BOLT	2	Rp10.500
9	51148-41310-000 SUB: 51148B41310N000	•PACKING	2	Rp8.500
10	51194-16H10-000 SUB: 51194B16H10N000	•CYLINDER	2	Rp52.000
11	51177-35400L000	•SPRING	2	Rp9.500
12	51196-39140-000 SUB: 51196B39140N000	•RING, PISTON	2	Rp7.500
13	51110-16H10-000 SUB: 51110B16H10N000	•TUBE, INNER	2	Rp283.000
14	51171-16H10-000 SUB: 51171B16H10N000	•SPRING, FRONT	2	Rp31.500
15	DISCONTINUE SUB: 51351B09G10N000	•CAP	2	-
16	51181-37B00-000 SUB: 09280B17002N000	•O RING	2	Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
