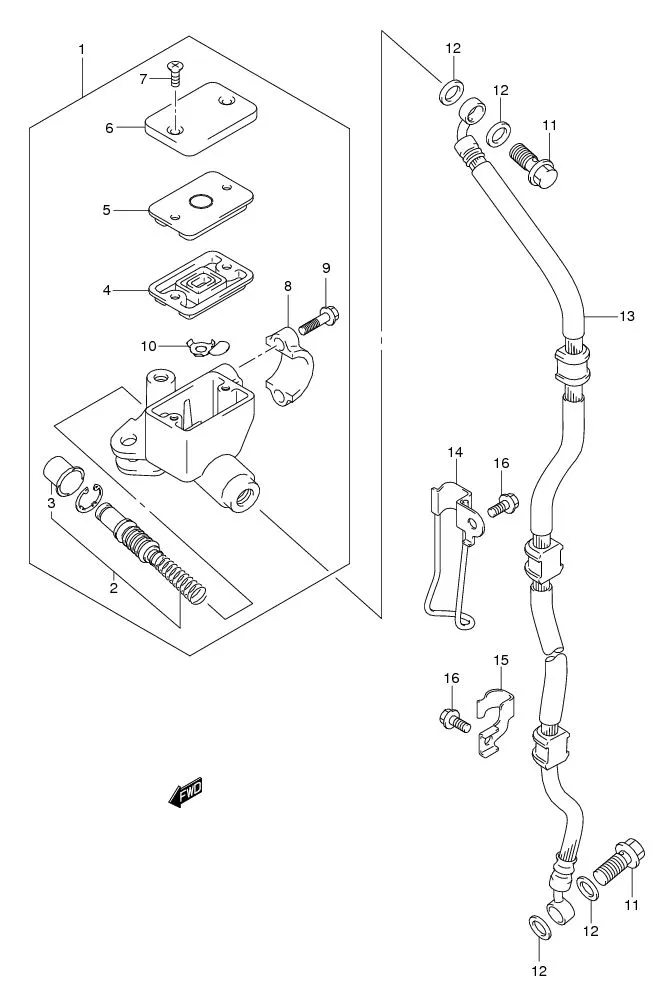

FIG.48 FRONT MASTER CYLINDER (FL125SD/SC/RCDF)

FIG.48 FRONT MASTER CYLINDER (FL125SD/SC/RCDF)
No No. Part Description Qty Price Per Pcs Remarks
1 59600-07H00-000
SUB: 59600B07H00N000		 CYLINDER ASSY, FRONT MASTER 1 Rp897.000
2 59600-21810-000
SUB: 59600-21810L000		 •PISTON/CUP SET 1 Rp73.500
3 59666-44300-000
SUB: 59666B44300N000		 ••BOOT 1 Rp16.000
4 59667-44B00-000
SUB: 59667-44B00L000		 •DIAPHRAGM 1 Rp13.000
5 59668-21D20-000
SUB: 59668B21D20N000		 •PLATE 1 Rp3.000
6 59669-21D20-000
SUB: 59669B21D20N000		 •CAP 1 Rp40.000
7 69689-49300-000
SUB: 69689-49300L000		 •SCREW 2 Rp3.000
8 59671-36500-000
SUB: 59671B36500N000		 •HOLDER 1 Rp23.000
9 59675-02FA0-000
SUB: 59675B02FA0N000		 •BOLT 2 Rp9.000
10 59664-32F00-000
SUB: 59664B32F00N000		 •PROTECTOR 1 Rp20.500
11 09360-10062-000
SUB: 09360B10062N000		 BOLT, BRAKE FLUID 2 Rp13.000
12 09168-10033-000
SUB: 09168B10033N000		 WASHER, BRAKE FLUID 4 Rp8.500
13 DISCONTINUE
SUB: 59480B16H00N000		 HOSE, FRONT BRAKE 1 -
14 DISCONTINUE
SUB: 59260B09G00N000		 CLAMP, FR BRAKE HOSE NO.1 1 -
15 DISCONTINUE
SUB: 59245B09G00N000		 CLAMP, FR BRAKE HOSE NO.2 1 -
16 01550-0610B-000
SUB: 01550B0610BN000		 BOLT, BRAKE HOSE CLAMP 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
