SHOGUN (FL125)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.28 FRAME FIG.29 STAND FIG.30 FOOTREST FIG.31 FUEL TANK FIG.32 FRAME COVER FIG.33 FRONT LEG SHIELD FIG.34 CENTER LEG SHIELD FIG.35 FRONT FENDER FIG.36 HANDLE BAR FIG.37 HANDLE COVER FIG.38 HANDLE LEVER FIG.39 REAR FENDER FIG.40 LUGGAGE BOX FIG.41 LABEL FIG.42 SEAT FIG.43 FRONT FORK DAMPER (FL125SDK7/SCK7/SDK8/RCDFK8)FIG.43A FRONT FORK DAMPER (FL125RCDMK7/RDK8/RMDK8)FIG.44 FRONT FORK BRACKET FIG.45 FRONT WHEEL (FL125SD)FIG.46 FRONT WHEEL (FL125SC/RCDF)FIG.46A FRONT WHEEL (FL125RCDM/RD/RMD)FIG.47 FRONT CALIPER (FL125SD/SC/RCDF)FIG.47A FRONT CALIPER (FL125RCDM/RD/RMD)FIG.48 FRONT MASTER CYLINDER (FL125SD/SC/RCDF)FIG.48A FRONT MASTER CYLINDER (FL125RCDM/RD/RMD)FIG.49 REAR SWINGING ARM (FL125SD/SC)FIG.49A REAR SWINGING ARM (FL125RCDM/RD/RMD/RCDF)FIG.50 CHAINCASE FIG.51 REAR WHELL (FL125SD)FIG.52 REAR WHELL (FL125SC)FIG.52A REAR WHELL (FL125RCDM/RD/RMD/RCDF)FIG.53 REAR CALIPER (FL125RCDM/RD/RMD/RCDF)FIG.54 REAR MASTER CYLINDER

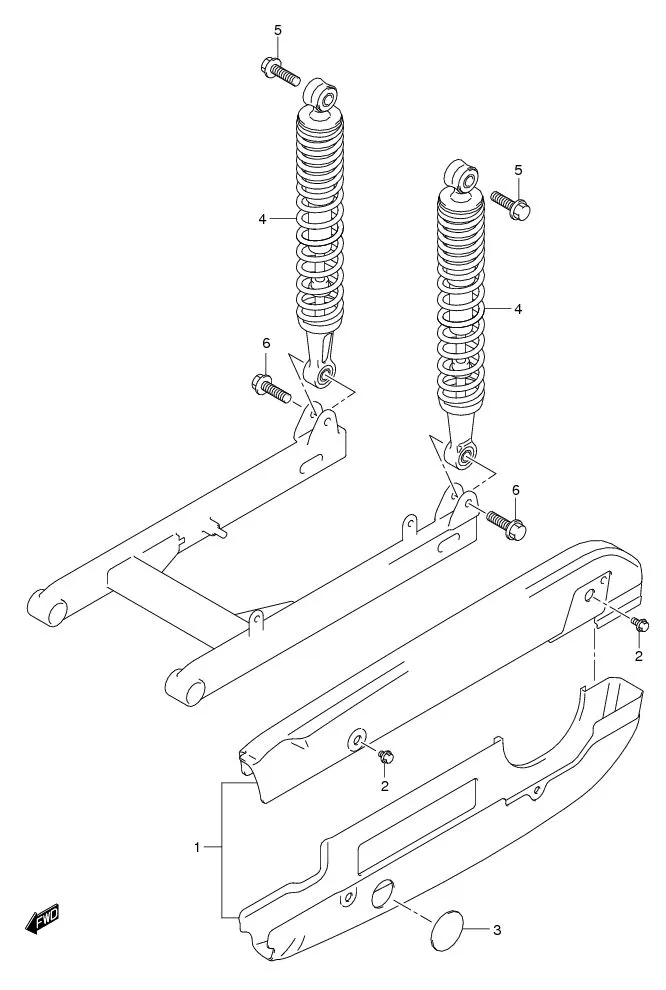

FIG.50 CHAINCASE

FIG.50 CHAINCASE

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	61310-23F00-000 SUB: 61310B23F00N000	CASE, CHAIN UPPER	1	Rp63.500
2	09111-06065-000 SUB: 09111B06065N000	BOLT, FRONT	2	Rp4.000
3	DISCONTINUE SUB: 61338B09G00N000	SPACER, CHAIN CASE	1	-
4-1	62100-16H10-000 SUB: 62100B16H10N000	ABSORBER ASSY, REAR SHOCK	2	Rp315.000	FL125SD/SC
4-2	62100-16H30-X1K SUB: 62100B16H20N000	ABSORBER ASSY, REAR SHOCK	2	Rp315.000	FL125RCDM
4-3	62100-16H30-X1K SUB: 62100B16H30NX1K	ABSORBER ASSY, REAR SHOCK	2	Rp315.000	FL125RD/RMD
4-4	DISCONTINUE SUB: 62100B16H40N000	ABSORBER ASSY, REAR SHOCK	2	-	FL125RCDF
5	01550-1035B-000 SUB: 01550B1035BN000	BOLT, UPPER	2	Rp5.000
6	09103-10229-000 SUB: 09103B10229N000	BOLT, LOWER	2	Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
