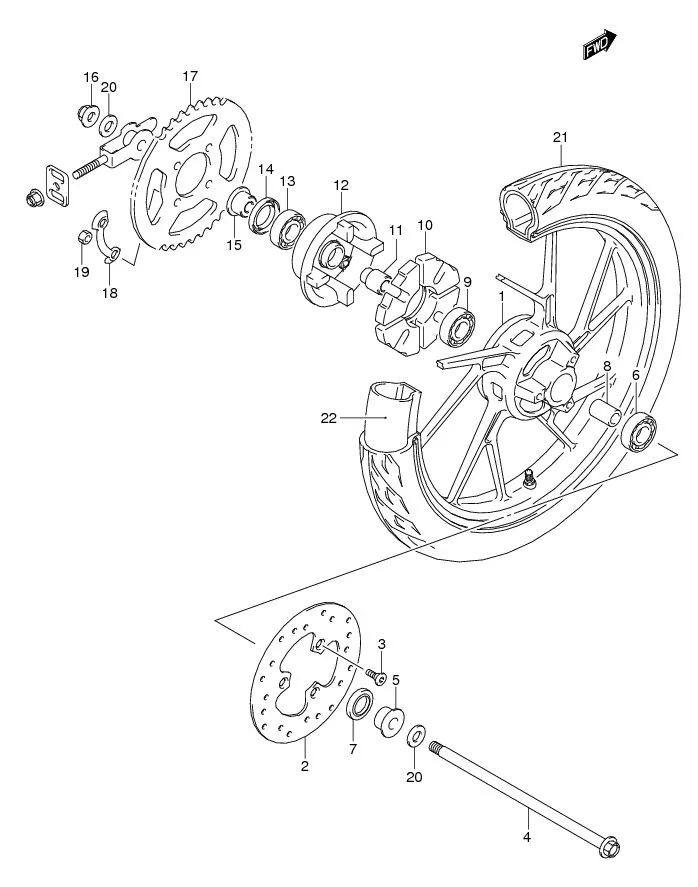

FIG.52A REAR WHELL (FL125RCDM/RD/RMD/RCDF)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	64111-16H00-000 SUB: 64111B16H00N000	WHEEL, REAR (17X1.85)	1	Rp964.000	FL125RCDF
1-1	DISCONTINUE SUB: 64111B25G20N000	WHEEL, REAR (17X1.85)	1	-	FL125RCDM/RD/RMD
2-1	69211-16H00-000 SUB: 69211B16H00N000	DISC, REAR BRAKE	1	Rp209.000	FL125RCDM/RD/RMD
2-2	69211-16H10-000 SUB: 69211B16H10N000	DISC, REAR BRAKE	1	Rp235.500	FL125RCDF
3	59218-09G10-000 SUB: 59218B09G00N000	BOLT	3	Rp7.000
4	64711-16H00-000 SUB: 64711B16H00N000	AXLE, REAR	1	Rp24.500
5	64721-20G00-000 SUB: 64721B20G00N000	SPACER, REAR AXLE	1	Rp23.500
6	08123-62017-000 SUB: 08133B62017N000	BEARING, RH	1	Rp29.000
7	09285-25008-000 SUB: 09285-25003L000	SEAL, OIL (25X40X6)	1	Rp8.000
8	09180-12086-000 SUB: 09180B12086N000	SPACER, BEARING	1	Rp44.000
9	08113-62037L000	BEARING, LH	1	Rp34.000
10	64651-30D60-000 SUB: 64651-30D00L000	ABSORBER, REAR HUB SHOCK	1	Rp25.000
11	64733-16H00-000 SUB: 64733B16H00N000	RETAINER, REAR SPROCKET DRUM	1	Rp12.000
12	64610-16H01-000 SUB: 64610B16H00N000	DRUM, SPROCKET MOUNTING	1	Rp147.500
13	08123-62017-000 SUB: 08133B62017N000	BEARING	1	Rp29.000
14	09285-25008-000 SUB: 09285-25003L000	OIL SEAL (25X40X6)	1	Rp8.000
15	64721-20G00-000 SUB: 64721B20G00N000	SPACER, REAR AXLE	1	Rp23.500
16	08319-3112A-000 SUB: 08319B3112AN000	NUT	1	Rp7.000
17-1	64511-09G20-000 SUB: 64511B09G20N000	SPROCKET, REAR (NT:35)	1	Rp115.500	FL125RCDM/RMD/RCDF
17-2	64511-16H30-000 SUB: 64511B16H00N000	SPROCKET, REAR (NT:34)	1	Rp100.000	FL125RD
18	09169-08011-000 SUB: 09169B08011N000	LOCK WASHER	2	Rp3.500
19	08310-0008B-000 SUB: 08310B0008BN000	NUT	4	Rp15.500
20	09160-12085-000 SUB: 09160B12085N000	WASHER	2	Rp6.500
21	DISCONTINUE SUB: 65110B16H20N000	TIRE, REAR (80/90-17 44P)	1	-
22	65200B16H20N000	TUBE ASSY, WHEEL INNER	1	-
