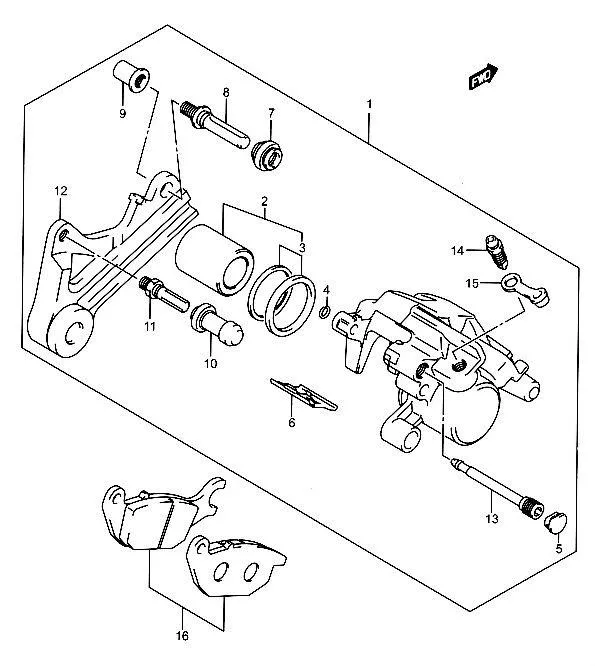

FIG.53 REAR CALIPER (FL125RCDM/RD/RMD/RCDF)

FIG.53 REAR CALIPER (FL125RCDM/RD/RMD/RCDF)
No No. Part Description Qty Price Per Pcs Remarks
1-2 69100-16H10-000
SUB: 69100B16H10N000		 CALIPER ASSY, REAR 1 Rp989.000 FL125RCDF
1-1 69100-16H10-000
SUB: 69100B16H00N000		 CALIPER ASSY, REAR 1 Rp989.000 FL125RCDM/RD/RMD
2 69104-20G00-000
SUB: 69104B20G00N000		 •PISTON 1 Rp169.000
3 59100-27E50-000
SUB: 59100B27E50N000		 •SEAL, PISTON 1 Rp36.500
4 59145-37F00-000 •RING, STOPPER 1 Rp27.000
5 59146-20G00-000
SUB: 59146B20G00N000		 •PLUG, PIN 1 Rp5.500
6 69115-20G01-000
SUB: 69115B20G01N000		 •SPRING 1 Rp35.000
7 59303-14500-000
SUB: 59303-14500L000		 •BOOT 1 Rp12.500
8 59387-46G00-000
SUB: 59387B46G00N000		 •PIN 1 Rp23.500
9 59388-00B20-000
SUB: 59388-00B20L000		 •NUT 1 Rp28.500
10 59386-13A00-000
SUB: 59386-13A00L000		 •BOOT 1 Rp14.000
11 59382-14500-000
SUB: 59382B14500N000		 •PIN 1 Rp13.500
12 69720-16H00-000
SUB: 69720B16H00N000		 •BRACKET 1 Rp75.500
13 69345-20G00-000
SUB: 69345B20G00N000		 •PIN, HANGER 2 Rp25.000
14 59121-01A00-000
SUB: 59121-01A00L000		 •BLEEDER 1 Rp14.500
15 59122-01A00-000
SUB: 59122-01A00L000		 •CAP 1 Rp3.000
16 69100-20840-000
SUB: 69100B20840N000		 PAD SET 1 Rp90.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
