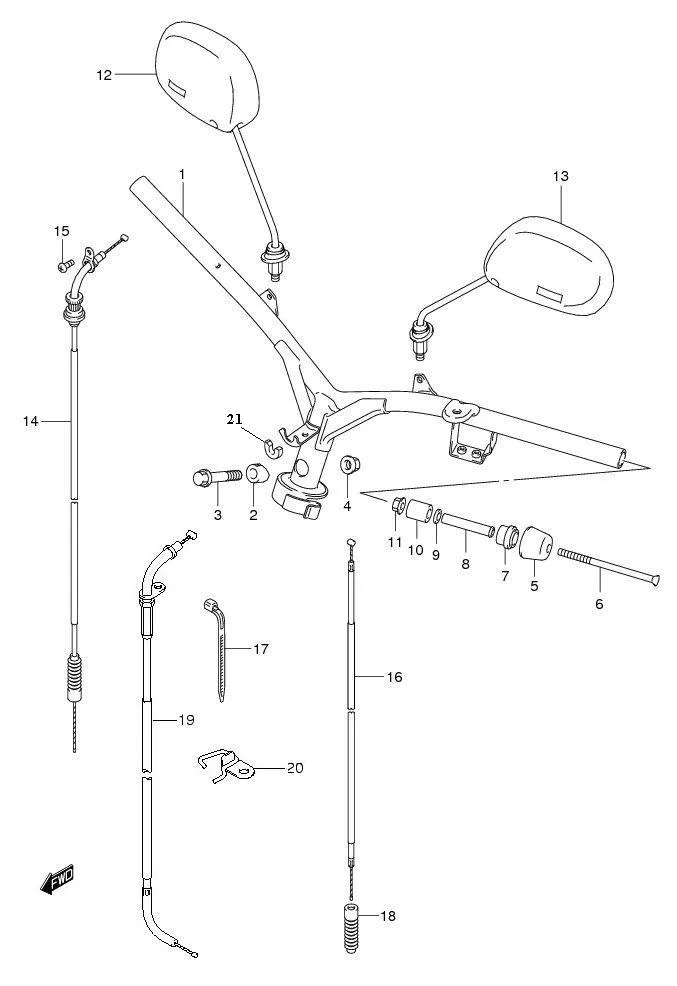

FIG.36 HANDLE BAR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 56110B16H20N000	HANDLEBAR	1	-	FL125RCDM/RDM
1-3	DISCONTINUE SUB: 56110B16H30N000	HANDLEBAR	1	-	FL125RCDF
1-1	DISCONTINUE SUB: 56110B16H00N000	HANDLEBAR	1	-	FL125SC/SD/RD
2	51358-09G00-000 SUB: 51358B09G00N000	STOPPER, HANDLE	1	Rp8.000
3	09103-10126-000 SUB: 09103B10126N000	BOLT	1	Rp28.500
4	08319-3110A-000 SUB: 08319B3110AN000	NUT	1	Rp4.500
5	56278-28F00-000 SUB: 56278B28F00N000	BALANCER	2	Rp105.000
6	56277-16H00-000 SUB: 56277B16H00N000	SCREW	2	Rp10.500
7	56272-28F00-000 SUB: 56272B28F00N000	EXPANDER, OUTER	2	Rp11.500
8-1	56276-17D00-000 SUB: 56276B17D00N000	SPACER	2	Rp9.000	FL125SC/SD
8-2	56276-16H00-000	SPACER	2	Rp10.000	FL125RCDM/RD/RDM/RCDF
9	09160-06126-000 SUB: 09160B06126N000	WASHER	2	Rp3.000
10	56272-23F10-000 SUB: 56272B23F10N000	EXPANDER, INNER	2	Rp4.500
11	09159-06024-000 SUB: 09159B06024N000	NUT	2	Rp4.000
12	56500-09G50-000 SUB: 56500B09G50N000	MIRROR ASSY, REAR VIEW RH	1	Rp86.500
13	56600-09G50-000 SUB: 56600B09G50N000	MIRROR ASSY, REAR VIEW LH	1	Rp86.500
14-1	58300-20G00-000 SUB: 58300B20G00N000	CABLE ASSY, THROTTLE	1	Rp42.000
14-2	DISCONTINUE SUB: 58300B16H30N000	CABLE ASSY, THROTTLE	1	-	FL125RCDF ONLY
15	02112-0512A-000 SUB: 02112B0512AN000	SCREW	1	Rp2.500
16-1	58410-20G00-000 SUB: 58410B20G00N000	CABLE, STARTER	1	Rp20.000	MODEL K7
16-2	58410-16H10-000 SUB: 58410B16H10N000	CABLE, STARTER	1	Rp22.500	MODEL K8
17-1	DISCONTINUE SUB: 09407-25401L000	CLAMP	1	-
17-2	DISCONTINUE SUB: 09407M19401-000	CLAMP	1	-
18	58333-35401-000	SEAL, DUST	1	Rp35.500
19	58200-16H00-001 SUB: 58200B16H00N000	CABLE ASSY, CLUTCH	1	Rp49.000	FL125RCDM/RMD DRAWING NOT SHOWN
20	DISCONTINUE SUB: 58634B16H00N000	STOPPER, CLUTCH CABLE	1	-	FL125RCDM/RMD DRAWING NOT SHOWN
