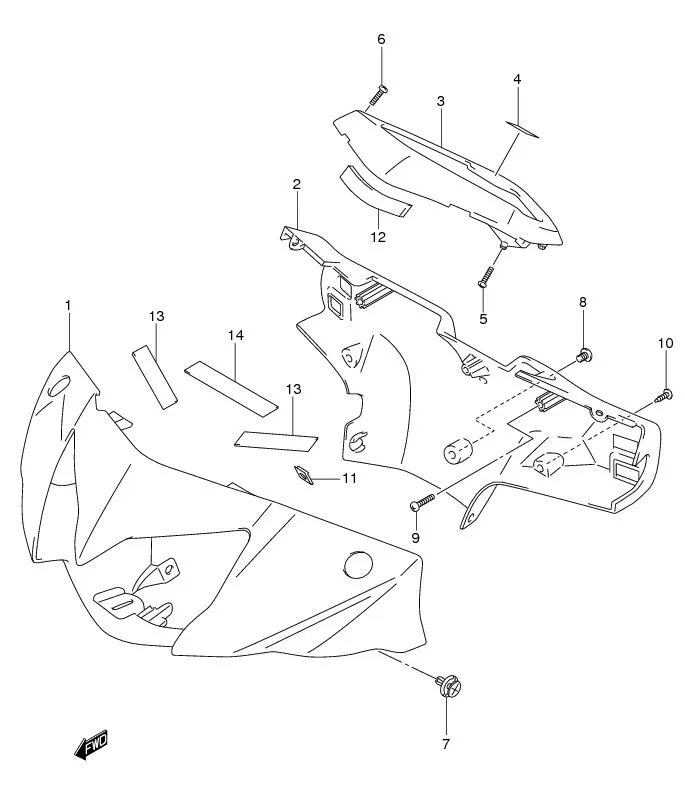

FIG.37 HANDLE COVER

FIG.37 HANDLE COVER
No No. Part Description Qty Price Per Pcs Remarks
1-13 56311-16H20-X6F
SUB: 56311B16H20NX6F		 COVER HANDLE FR (MAX ORANGE MET) 1 Rp104.000 FL125RCDM/RMD
1-1 56311-16H00-334
SUB: 56311B16H00N334		 COVER HANDLE FR (M BLUE PEARL) 1 Rp105.500 FL125SC/SD/RD
1-19 DISCONTINUE
SUB: 56311B16H40NX2J		 COVER HANDLE FR (MACHO BRIGHT BLUE) 1 - FL125RCDF
1-18 56311-16H40-X1J
SUB: 56311B16H40NX1J		 COVER HANDLE FR (AUTUMN RED) 1 Rp105.500 FL125RCDF
1-17 56311-16H40-X0H
SUB: 56311B16H40NX0H		 COVER HANDLE FR (TITAN BLACK) 1 Rp105.500 FL125RCDF
1-16 56311-16H20-YVE
SUB: 56311B16H20NYVE		 COVER HANDLE FR (MARINE BLUE) 1 Rp101.500 FL125RCDM/RMD
1-15 56311-16H20-YUL
SUB: 56311B16H20NYUL		 COVER HANDLE FR (SUMMER RED) 1 Rp99.500 FL125RCDM/RMD
1-14 56311-16H20-X8D
SUB: 56311B16H20NX8D		 COVER HANDLE FR (ICE SILVER MET) 1 Rp105.500 FL125RCDM/RMD
1-12 56311-16H20-X0H
SUB: 56311B16H20NX0H		 COVER HANDLE FR (TITAN BLACK) 1 Rp99.500 FL125RCDM/RMD
1-11 56311-16H20-334
SUB: 56311B16H20N334		 COVER HANDLE FR (MEDIUM BLUE PEARL) 1 Rp101.500 FL125RCDM/RMD
1-10 56311-16H00-YUL
SUB: 56311B16H00NYUL		 COVER HANDLE FR (SUMMER RED) 1 Rp105.500 FL125SC/SD/RD
1-9 56311-16H00-X8D
SUB: 56311B16H00NX8D		 COVER HANDLE FR (ICE SILVER MET) 1 Rp105.500 FL125SC/SD/RD
1-8 56311-16H00-X6F
SUB: 56311B16H00NX6F		 COVER HANDLE FR (MAX ORANGE MET) 1 Rp108.000 FL125SC/SD/RD
1-7 56311-16H00-X2L
SUB: 56311B16H00NX2L		 COVER HANDLE FR (MARINE BLUE) 1 Rp105.500 FL125SC/SD/RD
1-6 56311-16H00-X2J
SUB: 56311B16H00NX2J		 COVER HANDLE FR (MACHO BRIGHT BLUE) 1 Rp105.500 FL125SC/SD/RD
1-5 56311-16H00-X1J
SUB: 56311B16H00NX1J		 COVER HANDLE FR (AUTUMN RED) 1 Rp105.500 FL125SC/SD/RD
1-4 56311-16H00-X0N
SUB: 56311B16H00NX0N		 COVER HANDLE FR (BLUE SHINE BLACK) 1 Rp105.500 FL125SC/SD/RD
1-3 56311-16H00-X0H
SUB: 56311B16H00NX0H		 COVER HANDLE FR (TITAN BLACK) 1 Rp105.500 FL125SC/SD/RD
1-2 56311-16H00-X0G
SUB: 56311B16H00NX0G		 COVER HANDLE FR (BRILIANT WHITE) 1 Rp105.500 FL125SC/SD/RD
2-7 56321-16H10-X4D
SUB: 56321B16H10NX4D		 COVER HANDLE RR (DARK GREY MET) 1 Rp63.000 FL125RMD
2-11 DISCONTINUE
SUB: 56321B16H30NX2J		 COVER HANDLE RR (MACHO BRIGHT BLUE) 1 - FL125RCDF ONLY
2-10 DISCONTINUE
SUB: 56321B16H30NX1J		 COVER HANDLE RR (AUTUMN RED) 1 - FL125RCDF ONLY
2-9 56321-16H30-X0H
SUB: 56321B16H30NX0H		 COVER HANDLE RR (TITAN BLACK) 1 Rp63.000 FL125RCDF ONLY
2-8 56321-16H10-X8D
SUB: 56321B16H10NX8D		 COVER HANDLE RR (ICE SILVER MET) 1 Rp63.000 FL125RMD
2-5 56321-16H10-X1J
SUB: 56321B16H10NX1J		 COVER HANDLE RR (AUTUMN RED) 1 Rp63.000 FL125SD
2-4 56321-16H10-X0N
SUB: 56321B16H10NX0N		 COVER HANDLE RR (BLUE SHINE BLACK) 1 Rp63.000 FL125RD
2-3 56321-16H10-X0H
SUB: 56321B16H10NX0H		 COVER HANDLE RR (TITAN BLACK) 1 Rp63.000 FL125SD
2-2 56321-16H10-X0G
SUB: 56321B16H10NX0G		 COVER HANDLE RR (BRILIANT WHITE) 1 Rp63.000 FL125SD
2-1 56321-16H10-334
SUB: 56321B16H10N334		 COVER HANDLE RR (M BLUE PEARL) 1 Rp64.000 FL125SD
2-6 56321-16H10-X2J
SUB: 56321B16H10NX2J		 COVER HANDLE RR (MACHO BRIGHT BLUE) 1 Rp63.000 FL125RD
3-8 56322-16H00-X9C
SUB: 56322B16H00NX9C		 COVER HANDLE UPPER (MAJESTY GOLD) 1 Rp55.000 FL125RMD
3-10 56322-16H00-X6F
SUB: 56322B16H00NX6F		 COVER HANDLE UPPER (MAX ORANGE MET) 1 Rp55.000 FL125RD ; FL125RMD
3-9 56322-16H00-X2L
SUB: 56322B16H00NX2L		 COVER HANDLE UPPER (MARINE BLUE) 1 Rp55.000 FL125RD ; FL125RMD
3-7 56322-16H00-X4D
SUB: 56322B16H00NX4D		 COVER HANDLE UPPER (DARK GREY MET) 1 Rp55.000 FL125RMD
3-6 56322-16H00-YTB
SUB: 56322B16H00NYTB		 COVER HANDLE UPPER (SUMMER RED) 1 Rp56.000 FL125RD
3-5 56322-16H00-X0N
SUB: 56322B16H00NX0N		 COVER HANDLE UPPER (BLUE SHINE BLACK) 1 Rp56.000 FL125RD
3-4 56322-16H00-X1J
SUB: 56322B16H00NX1J		 COVER HANDLE UPPER (AUTUMN RED) 1 Rp55.000 FL125SD
3-3 56322-16H00-X0H
SUB: 56322B16H00NX0H		 COVER HANDLE UPPER (TITAN BLACK) 1 Rp55.000 FL125SD
3-2 56322-16H00-X0G
SUB: 56322B16H00NX0G		 COVER HANDLE UPPER (BRILIANT WHITE) 1 Rp55.000 FL125SD
3-1 DISCONTINUE
SUB: 56322B16H00N334		 COVER HANDLE UPPER (M BLUE PEARL) 1 - FL125SD
4 DISCONTINUE
SUB: 68281B25G00N000		 EMBLEM 1 -
5 03541-0412A-000
SUB: 03541B0412AN000		 SCREW, UPPER COVER 4 Rp3.500
6 03512-05209-000
SUB: 03512B05209N000		 SCREW, FRONT UPPER 2 Rp43.500
7 09409-06322-5PK
SUB: 09409-06322-000		 CLIP 2 Rp19.000
8 02142-0512A-000
SUB: 02142B0512AN000		 SCREW, LOWER 1 Rp3.500
9 03511-0516A-000
SUB: 03511B0516AN000		 SCREW, UPPER 2 Rp5.500
10 03541-0416A-000
SUB: 03541B0416AN000		 SCREW, SIDE 2 Rp3.500
11 09148-05038-000
SUB: 09148B05038N000		 NUT 2 Rp4.000
12 56314-16H00-000
SUB: 56314B16H00N000		 CUSHION, NO.1 1 Rp9.000
13 56315-16H00-000
SUB: 56315B16H00N000		 CUSHION, NO.2 2 Rp9.000
14 56316-16H00-000 CUSHION, NO.3 1 Rp27.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
