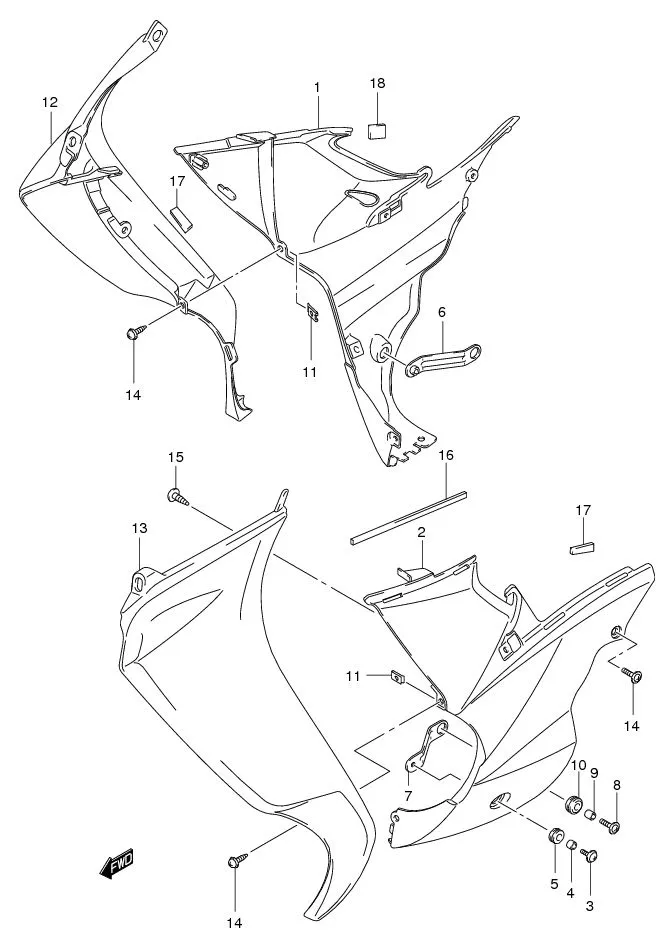

FIG.33 FRONT LEG SHIELD

FIG.33 FRONT LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 48111B16H00NX2J		 SHIELD LEG RH NO.1 (MACHO BRIGHT BLUE) 1 - FL125SD
1-3 48111-16H00-X2L
SUB: 48111B16H00NX2L		 SHIELD LEG RH NO.1 (MARINE BLUE) 1 Rp94.000 FL125SD
1-4 DISCONTINUE
SUB: 48111B16H00NYTB		 SHIELD LEG RH NO.1 (SUMMER RED) 1 - FL125SD
1-5 48111-16H00-X0N
SUB: 48111B16H00NX0N		 SHIELD LEG RH NO.1 (BLUE SHINE BLACK) 1 Rp95.500 FL125RD
1-6 48111-16H00-X1J
SUB: 48111B16H00NX1J		 SHIELD LEG RH NO.1 (AUTUMN RED MET) 1 Rp95.500 FL125RD
1-7 48111-16H00-X4D
SUB: 48111B16H00NX4D		 SHIELD LEG RH NO.1 (DARK GREY MET) 1 Rp95.500 FL125RMD
1-8 48111-16H00-X0G
SUB: 48111B16H00NX0G		 SHIELD LEG RH NO.1 (BRILIANT WHITE) 1 Rp95.500 FL125RMD
1-9 48111-16H10-X0H
SUB: 48111B16H10NX0H		 SHIELD LEG RH NO.1 (TITAN BLACK) 1 Rp95.500 FL125RCDF ONLY
1-1 48111-16H00-X0H
SUB: 48111B16H00NX0H		 SHIELD LEG RH NO.1 (TITAN BLACK) 1 Rp95.500 FL125SD
2-10 DISCONTINUE
SUB: 48121B16H10NX4D		 SHIELD LEG LH NO.1 (DARK GREY MET) 1 - FL125RMD
2-11 48121-16H10-X0H
SUB: 48121B16H10NX0H		 SHIELD LEG LH NO.1 (TITAN BLACK) 1 Rp95.500 FL125RCDF ONLY
2-9 DISCONTINUE
SUB: 48121B16H10NX0G		 SHIELD LEG LH NO.1 (BRILIANT WHITE) 1 - FL125RMD
2-8 48121-16H00-X0G
SUB: 48121B16H00NX0G		 SHIELD LEG LH NO.1 (BRILIANT WHITE) 1 Rp95.500 FL125RMD
2-7 48121-16H00-X4D
SUB: 48121B16H00NX4D		 SHIELD LEG LH NO.1 (DARK GREY MET) 1 Rp95.500 FL125RMD
2-5 48121-16H00-X0N
SUB: 48121B16H00NX0N		 SHIELD LEG LH NO.1 (BLUE SHINE BLACK) 1 Rp95.500 FL125RD
2-4 DISCONTINUE
SUB: 48121B16H00NYTB		 SHIELD LEG LH NO.1 (SUMMER RED) 1 - FL125SD
2-3 DISCONTINUE
SUB: 48121B16H00NX2L		 SHIELD LEG LH NO.1 (MARINE BLUE) 1 - FL125SD
2-1 48121-16H00-X0H
SUB: 48121B16H00NX0H		 SHIELD LEG LH NO.1 (TITAN BLACK) 1 Rp95.500 FL125SD
2-2 DISCONTINUE
SUB: 48121B16H00NX2J		 SHIELD LEG LH NO.1 (MACHO BRIGHT BLUE) 1 - FL125SD
2-6 48121-16H00-X1J
SUB: 48121B16H00NX1J		 SHIELD LEG LH NO.1 (AUTUMN RED MET) 1 Rp95.500 FL125RD
3 48116-07H00-000
SUB: 48116B07H00N000		 SCREW, SIDE 2 Rp10.000
4 48211-09G00-000
SUB: 48211B09G00N000		 SPACER 2 Rp3.000
5 09320-09026-000
SUB: 09320B09026N000		 CUSHION 2 Rp12.500
6 DISCONTINUE
SUB: 48140B16H00N000		 BRACE, RH 1 -
7-2 DISCONTINUE
SUB: 48150B16H00N000		 BRACE, LH 1 - FL125RCDF ONLY
7-1 48150-16H10-000
SUB: 48150B16H10N000		 BRACE, LH 1 Rp9.000
8 09136-06062-000
SUB: 09136B06062N000		 SCREW, BRACE 2 Rp7.000
9 09180-06256-000
SUB: 48212B16H00N000		 SPACER 2 Rp3.000
10 48278-16H00-000
SUB: 48278B16H00N000		 CUSHION 2 Rp38.000
11 09148-05038-000
SUB: 09148B05038N000		 NUT 8 Rp4.000
12-1 DISCONTINUE
SUB: 48112B16H00N334		 SHIELD LEG RH NO.2 (M BLUE PEARL) 1 - FL125SC
12-12 DISCONTINUE
SUB: 48112B16H00NYTB		 SHIELD LEG RH NO.2 (SUMMER RED) 1 - FL125SD ; FL125RD
12-11 48112-16H00-X2L
SUB: 48112B16H00NX2L		 SHIELD LEG RH NO.2 (MARINE BLUE) 1 Rp155.500 FL125SD ; FL125RMD
12-10 DISCONTINUE
SUB: 48112B16H00NX6G		 SHIELD LEG RH NO.2 (MIDNIGHT ORANGE) 1 - FL125RCDF
12-9 DISCONTINUE
SUB: 48112B16H00NX9C		 SHIELD LEG RH NO.2 (MAJESTY GOLD) 1 - FL125RMD
12-8 DISCONTINUE
SUB: 48112B16H00NX6F		 SHIELD LEG RH NO.2 (MAX ORANGE MET) 1 - FL125RMD
12-6 48112-16H00-X0N
SUB: 48112B16H00NX0N		 SHIELD LEG RH NO.2 (BLUE SHINE BLACK) 1 Rp155.500 FL125RD
12-5 48112-16H00-X2J
SUB: 48112B16H00NX2J		 SHIELD LEG RH NO.2 (MACHO BRIGHT BLUE) 1 Rp155.500 FL125SD
12-4 48112-16H00-X1J
SUB: 48112B16H00NX1J		 SHIELD LEG RH NO.2 (AUTUMN RED) 1 Rp155.500 FL125SD
12-3 48112-16H00-X0H
SUB: 48112B16H00NX0H		 SHIELD LEG RH NO.2 (TITAN BLACK) 1 Rp155.500 FL125SD
12-2 48112-16H00-X0G
SUB: 48112B16H00NX0G		 SHIELD LEG RH NO.2 (BRILIANT WHITE) 1 Rp155.500 FL125SD
12-7 48112-16H00-X4D
SUB: 48112B16H00NX4D		 SHIELD LEG RH NO.2 (DARK GREY MET) 1 Rp155.500 FL125RMD
13-7 48122-16H00-X4D
SUB: 48122B16H00NX4D		 SHIELD LEG RH NO.2 (DARK GREY MET) 1 Rp155.500 FL125RMD
13-12 DISCONTINUE
SUB: 48122B16H00NYTB		 SHIELD LEG RH NO.2 (SUMMER RED) 1 - FL125SD ; FL125RD
13-11 48122-16H00-X2L
SUB: 48122B16H00NX2L		 SHIELD LEG RH NO.2 (MARINE BLUE) 1 Rp155.500 FL125SD ; FL125RMD
13-10 DISCONTINUE
SUB: 48122B16H00NX6G		 SHIELD LEG RH NO.2 (MIDNIGHT ORANGE) 1 - FL125RCDF
13-9 DISCONTINUE
SUB: 48122B16H00NX9C		 SHIELD LEG RH NO.2 (MAJESTY GOLD) 1 - FL125RMD
13-8 DISCONTINUE
SUB: 48122B16H00NX6F		 SHIELD LEG RH NO.2 (MAX ORANGE MET) 1 - FL125RMD
13-6 48122-16H00-X0N
SUB: 48122B16H00NX0N		 SHIELD LEG RH NO.2 (BLUE SHINE BLACK) 1 Rp155.500 FL125RD
13-5 48122-16H00-X2J
SUB: 48122B16H00NX2J		 SHIELD LEG RH NO.2 (MACHO BRIGHT BLUE) 1 Rp155.500 FL125SD
13-4 48122-16H00-X1J
SUB: 48122B16H00NX1J		 SHIELD LEG RH NO.2 (AUTUMN RED) 1 Rp155.500 FL125SD
13-3 48122-16H00-X0H
SUB: 48122B16H00NX0H		 SHIELD LEG RH NO.2 (TITAN BLACK) 1 Rp155.500 FL125SD
13-2 48122-16H00-X0G
SUB: 48122B16H00NX0G		 SHIELD LEG RH NO.2 (BRILIANT WHITE) 1 Rp155.500 FL125SD
13-1 48122-16H00-334
SUB: 48122B16H00N334		 SHIELD LEG RH NO.2 (M BLUE PEARL) 1 Rp152.000 FL125SC
14 03541-1516A-000
SUB: 03541B1516AN000		 SCREW 8 Rp5.500
15 03541-0412A-000
SUB: 03541B0412AN000		 SCREW 2 Rp3.500
16-1 DISCONTINUE
SUB: 48113B16H00N000		 CUSHION, UPPER 2 -
16-2 DISCONTINUE
SUB: 48113B16H10N000		 CUSHION, UPPER 2 - FL125RCDF ONLY
17 48136-20G00-000
SUB: 48136B20G00N000		 CUSHION, LEG SHIELD 14 Rp4.000
18 48114-16H00-000
SUB: 48114B16H00N000		 CUSHION, INNER 4 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
