SHOGUN (FL125)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.28 FRAME FIG.29 STAND FIG.30 FOOTREST FIG.31 FUEL TANK FIG.32 FRAME COVER FIG.33 FRONT LEG SHIELD FIG.34 CENTER LEG SHIELD FIG.35 FRONT FENDER FIG.36 HANDLE BAR FIG.37 HANDLE COVER FIG.38 HANDLE LEVER FIG.39 REAR FENDER FIG.40 LUGGAGE BOX FIG.41 LABEL FIG.42 SEAT FIG.43 FRONT FORK DAMPER (FL125SDK7/SCK7/SDK8/RCDFK8)FIG.43A FRONT FORK DAMPER (FL125RCDMK7/RDK8/RMDK8)FIG.44 FRONT FORK BRACKET FIG.45 FRONT WHEEL (FL125SD)FIG.46 FRONT WHEEL (FL125SC/RCDF)FIG.46A FRONT WHEEL (FL125RCDM/RD/RMD)FIG.47 FRONT CALIPER (FL125SD/SC/RCDF)FIG.47A FRONT CALIPER (FL125RCDM/RD/RMD)FIG.48 FRONT MASTER CYLINDER (FL125SD/SC/RCDF)FIG.48A FRONT MASTER CYLINDER (FL125RCDM/RD/RMD)FIG.49 REAR SWINGING ARM (FL125SD/SC)FIG.49A REAR SWINGING ARM (FL125RCDM/RD/RMD/RCDF)FIG.50 CHAINCASE FIG.51 REAR WHELL (FL125SD)FIG.52 REAR WHELL (FL125SC)FIG.52A REAR WHELL (FL125RCDM/RD/RMD/RCDF)FIG.53 REAR CALIPER (FL125RCDM/RD/RMD/RCDF)FIG.54 REAR MASTER CYLINDER

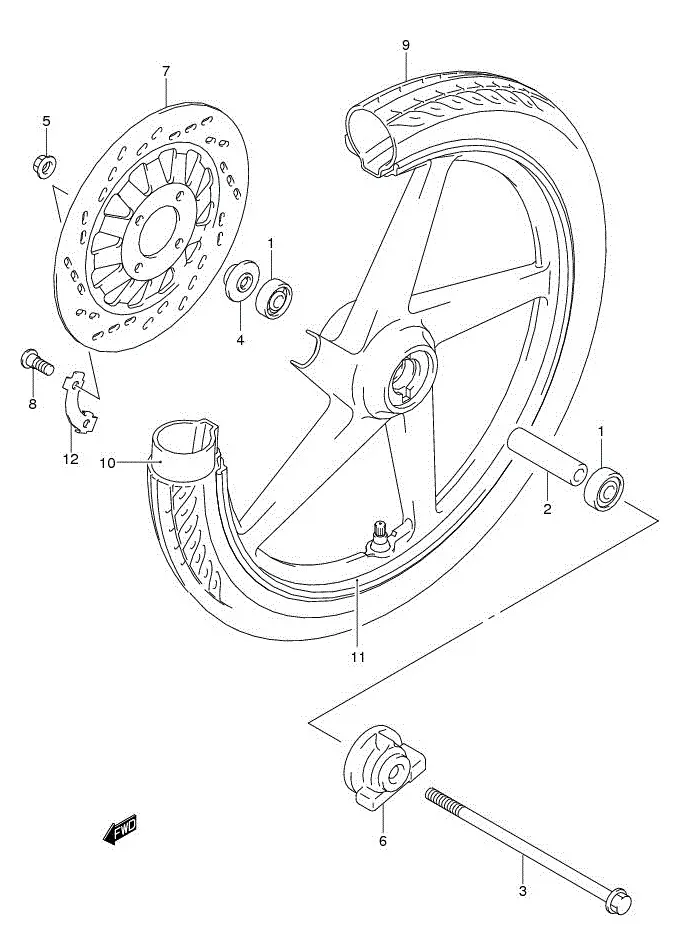

FIG.46A FRONT WHEEL (FL125RCDM/RD/RMD)

FIG.46A FRONT WHEEL (FL125RCDM/RD/RMD)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 54111B25G30N000	WHEEL, FRONT (17X1.40)	1	-
2	08123-63007-000 SUB: 08123-63007L000	BEARING	2	Rp32.500
3	DISCONTINUE SUB: 09180-10148L000	SPACER, FRONT HUB	1	-
4	54133-16H00-000 SUB: 54133B16H00N000	SEAL, FR WHEEL BEARING	2	Rp11.000
5	DISCONTINUE SUB: 54600B07H10N000	BOX ASSY, SPEEDOMETER GEAR	1	-
6	54711-13H00-000 SUB: 54711-04701L000	AXLE, FRONT	1	Rp13.000
7	54750-46100-000 SUB: 54750-46100L000	SPACER, FRONT AXLE RH	2	Rp12.500
8	08319-3110A-000 SUB: 08319B3110AN000	NUT	1	Rp4.500
9	59211-16H10-000 SUB: 59211B16H10N000	DISC, FRONT BRAKE	1	Rp317.500
10	59218-09G10-000 SUB: 59218B09G00N000	BOLT	5	Rp7.000
11	DISCONTINUE SUB: 55110B16H20N000	TIRE, FRONT (70/90-17 38P)	1	-
12	DISCONTINUE SUB: 55200B16H30N000	TUBE ASSY, WHEEL INNER	1	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
