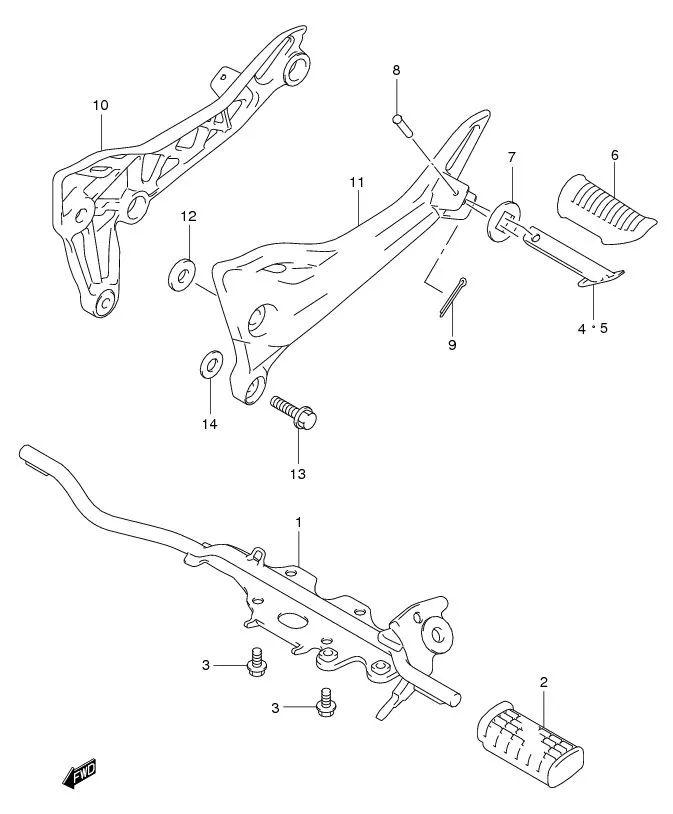

FIG.30 FOOTREST

FIG.30 FOOTREST
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 43510B16H01N000		 BAR, FRONT FOOTREST 1 -
2-1 43551-35560-000
SUB: 43551-35500L000		 RUBBER 2 Rp18.500
2-2 43551-35540-000
SUB: 43551B35540N000		 RUBBER 2 Rp22.000 FL125RCDF ONLY
3 01550-0816A-000
SUB: 01550B0816BN000		 BOLT 4 Rp6.000
4 43610-34A00-000
SUB: 43610-34A00L000		 BAR, PILLION RH 1 Rp15.000
5 43710-34A00-000
SUB: 43710-34A00L000		 BAR, PILLION LH 1 Rp15.000
6 43612-09G00-000
SUB: 43612B09G00N000		 RUBBER 2 Rp14.000
7 43631-09G00-000
SUB: 43631B09G00N000		 WASHER 2 Rp7.500
8 09200-06041-000
SUB: 09200B06041N000		 PIN 2 Rp4.000
9 04111-2515A-000
SUB: 04111B2515AN000		 COTTER PIN 2 Rp8.500
10-1 DISCONTINUE
SUB: 43811B16H00N000		 BRACKET, PILLION RH 1 - FL125SC/SD
10-2 DISCONTINUE
SUB: 43811B16H10N000		 BRACKET, PILLION RH 1 - FL125RCDM/RD/RMD/RCDF
11-1 DISCONTINUE
SUB: 43821B16H00N000		 BRACKET, PILLION LH 1 - FL125SC/SD
11-2 DISCONTINUE
SUB: 43821B16H10N000		 BRACKET, PILLION LH 1 - FL125RCDM/RD/RMD/RCDF
12 DISCONTINUE
SUB: 09160B10079N000		 WASHER, LOWER 2 -
13 01550-1025A-000
SUB: 01550B1025AN000		 BOLT 2 Rp3.500
14 DISCONTINUE
SUB: 09160B12118N000		 WASHER, UPPER 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
