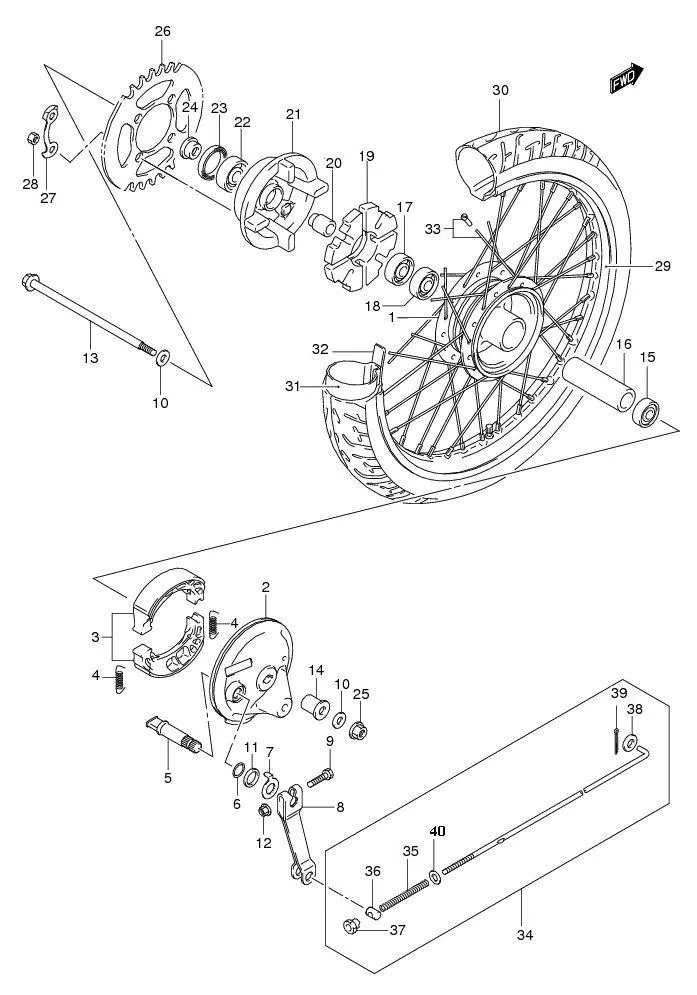

FIG.51 REAR WHELL (FL125SD)

No	No. Part	Description	Qty	Price Per Pcs
1	64110-35355-000 SUB: 64110B35355N000	DRUM, REAR WHEEL	1	Rp206.000
2	64210-46005-000 SUB: 64210-46005L000	PANEL, REAR BRAKE ANCHOR	1	Rp71.000
3	DISCONTINUE SUB: 54410B23F10N000	SHOE, BRAKE	2	-
4	09443-07025-000 SUB: 09443B07025N000	SPRING	2	Rp3.500
5	DISCONTINUE SUB: 64441B21D10N000	SHAFT, BRAKE CAM	1	-
6	09280-14011-000 SUB: 09280B14011N000	O RING, REAR BRAKE CAM	1	Rp7.500
7	DISCONTINUE SUB: 54492B35400N000	PLATE, BRAKE LINING	1	-
8	64451-20G00-000 SUB: 64451B20G00N000	LEVER, BRAKE CAM	1	Rp9.500
9	DISCONTINUE SUB: 09103B06045N000	BOLT (6X33)	1	-
10	09160-12085-000 SUB: 09160B12085N000	WASHER	2	Rp6.500
11	09160-14054-000 SUB: 09160B14054N000	WASHER	1	Rp12.500
12	08316-1006A-000 SUB: 08316B1006BN000	NUT	1	Rp2.000
13	64711-16H00-000 SUB: 64711B16H00N000	AXLE, REAR	1	Rp24.500
14	64741-07H00-000 SUB: 64741B07H00N000	SPACER, REAR AXLE RH	1	Rp8.500
15	08140-63017-000 SUB: 08140B63017N000	BEARING, RH	1	Rp32.000
16	09180-12143-000 SUB: 09180-12143L000	SPACER, BEARING (12.5X19X58)	1	Rp9.000
17	08140-62017-000 SUB: 08140B62017N000	BEARING, LH	1	Rp25.000
18	08113-62017-000 SUB: 08110B62017N000	BEARING	1	Rp23.500
19	64651-30D60-000 SUB: 64651-30D00L000	ABSORBER, REAR HUB SHOCK	1	Rp25.000
20	64733-16H00-000 SUB: 64733B16H00N000	RETAINER, REAR SPROCKET DRUM	1	Rp12.000
21	64610-16H01-000 SUB: 64610B16H00N000	DRUM, SPROCKET MOUNTING	1	Rp147.500
22	08113-62037L000	BEARING	1	Rp34.000
23	09285-25008-000 SUB: 09285-25003L000	SEAL, OIL (25X40X6)	1	Rp8.000
24	64721-20G00-000 SUB: 64721B20G00N000	SPACER, RR SPROCKET DRUM	1	Rp23.500
25	08319-3112A-000 SUB: 08319B3112AN000	NUT	1	Rp7.000
26	64511-16H30-000 SUB: 64511B16H00N000	SPROCKET, REAR (NT:34)	1	Rp100.000
27	09169-08011-000 SUB: 09169B08011N000	LOCK WASHER	2	Rp3.500
28	08310-0008B-000 SUB: 08310B0008BN000	NUT	4	Rp15.500
29	65311-16H40-000 SUB: 65311B16H40N000	WHEEL RIM (17X1.60)	1	Rp348.500
30	DISCONTINUE SUB: 65110B16H20N000	TIRE, REAR, 80/90-17M/C 44P	1	-
31	65200B16H20N000	TUBE ASSY, INNER	1	-
32	65261B16H20N000	PROTECTOR, INNER TUBE	1	-
33	65320-03021-000 SUB: 65320-03021L000	SPOKE SET, REAR WHEEL	1	Rp43.500
34	DISCONTINUE SUB: 43300B16H00N000	ROD ASSY, REAR BRAKE	1	-
35	09440-09004-000 SUB: 09440-09004L000	•SPRING	1	Rp12.500
36	09209-11002-000 SUB: 09209B11002N000	•PIN	1	Rp7.500
37	09150-06010-000 SUB: 09150B06010N000	•NUT	1	Rp4.500
38	08322-0105A-000 SUB: 08322B0105AN000	•WASHER	1	Rp3.000
39	04111-2020A-000 SUB: 04111B2020AN000	•PIN, COTTER	1	Rp5.000
40	08322-0106B-000 SUB: 08322B0106BN000	•WASHER, REAR	1	Rp6.000
