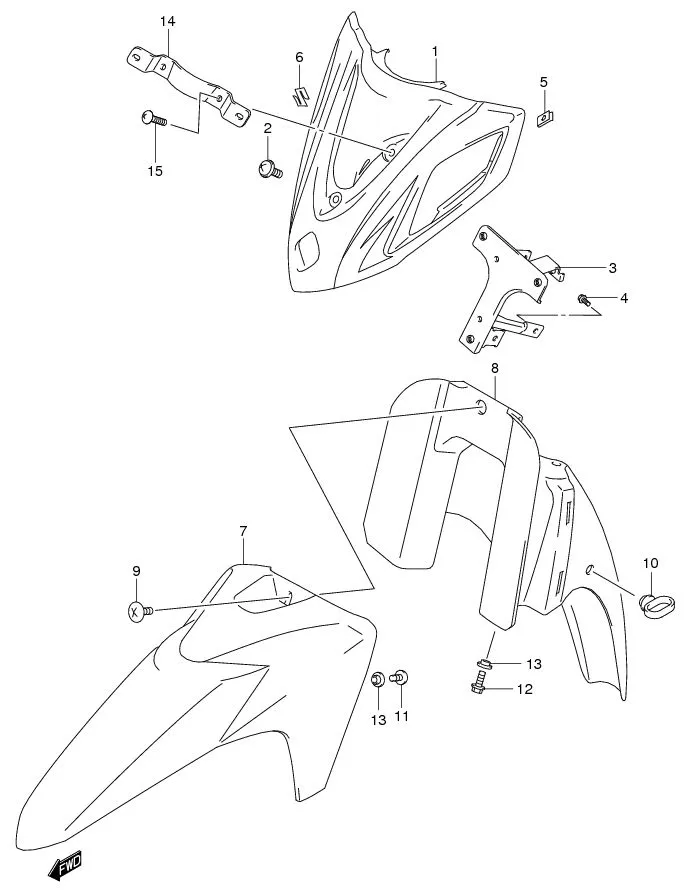

FIG.35 FRONT FENDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	51871-16H10-X0H SUB: 51871B16H10NX0H	COVER FRAME HEAD (TITAN BLACK)	0	Rp94.500	FL125SD
1-3	51871-16H10-X0N SUB: 51871B16H10NX0N	COVER FRAME HEAD (BLUE SHINE BLACK)	0	Rp94.500	FL125RD
1-4	51871-16H10-X1J SUB: 51871B16H10NX1J	COVER FRAME HEAD (AUTUMN RED)	0	Rp94.500	FL125SD
1-5	51871-16H10-X2J SUB: 51871B16H10NX2J	COVER FRAME HEAD (MACHO BRIGHT BLUE)	0	Rp94.500	FL125RD
1-6	51871-16H10-X2L SUB: 51871B16H10NX2L	COVER FRAME HEAD (MARINE BLUE)	0	Rp94.500	FL125RD
1-7	DISCONTINUE SUB: 51871B16H10NX4D	COVER FRAME HEAD (DARK GREY)	0	-	FL125RMD
1-8	51871-16H10-X6F SUB: 51871B16H10NX6F	COVER FRAME HEAD (MAX ORANGE MET)	0	Rp94.500	FL125RMD
1-9	51871-16H10-X8D SUB: 51871B16H10NX8D	COVER FRAME HEAD (ICE SILVER MET)	0	Rp94.500	FL125RD
1-10	51871-16H10-YUL SUB: 51871B16H10NYUL	COVER FRAME HEAD (SUMMER RED)	0	Rp94.500	FL125SD ; FL125RMD
1-11	51871-16H10-X0G SUB: 51871B16H10NX0G	COVER FRAME HEAD (BRILIANT WHITE)	0	Rp94.500	FL125SD ; FL125 RMD
1-1	51871-16H10-334 SUB: 51871B16H10N334	COVER FRAME HEAD (M BLUE PEARL)	1	Rp94.500	FL125SD
2	51875-07H00-000 SUB: 51875B07H00N000	SCREW	1	Rp9.000
3-1	51860-16H00-000 SUB: 51860B16H00N000	BRACE, HEAD COVER	1	Rp71.000	FL125SC/SD
3-2	51860-16H30-000 SUB: 51860B16H30N000	BRACE, HEAD COVER	1	Rp48.500	FL125RD/RMD
3-3	DISCONTINUE SUB: 51860B16H40N000	BRACE, HEAD COVER	1	-	FL125RCDF
4	DISCONTINUE SUB: 01550B0612AN000	BOLT	2	-
5	09148-05038-000 SUB: 09148B05038N000	NUT	6	Rp4.000
6	68211-16H00-000 SUB: 68211B16H00N000	EMBLEM	1	Rp13.000
7-1	53111-16H00-334 SUB: 53111B16H00N334	FENDER FR NO.1 (M BLUE PEARL)	1	Rp150.000	FL125SD
7-10	DISCONTINUE SUB: 53111B16H00NX6G	FENDER FR NO.1 (MIDNIGHT ORANGE)	1	-	FL125RCDF
7-9	53111-16H00-X4D SUB: 53111B16H00NX4D	FENDER FR NO.1 (DARK GREY MET)	1	Rp150.000	FL125RD
7-8	53111-16H00-X0N SUB: 53111B16H00NX0N	FENDER FR NO.1 (BLUE SHINE BLACK)	1	Rp152.500	FL125RD
7-7	53111-16H00-YUL SUB: 53111B16H00NYUL	FENDER FR NO.1 (SUMMER RED)	1	Rp158.000	FL125SD
7-6	53111-16H00-X2L SUB: 53111B16H00NX2L	FENDER FR NO.1 (MARINE BLUE)	1	Rp150.000	FL125SD
7-5	53111-16H00-X2J SUB: 53111B16H00NX2J	FENDER FR NO.1 (MACHO BRIGHT BLUE)	1	Rp150.000	FL125SD
7-4	53111-16H00-X1J SUB: 53111B16H00NX1J	FENDER FR NO.1 (AUTUMN RED)	1	Rp150.000	FL125SD
7-3	53111-16H00-X0H SUB: 53111B16H00NX0H	FENDER FR NO.1 (TITAN BLACK)	1	Rp150.000	FL125SD
7-2	53111-16H00-X0G SUB: 53111B16H00NX0G	FENDER FR NO.1 (BRILIANT WHITE)	1	Rp152.500	FL125SD
8	53211-16H01-000 SUB: 53211B16H01N000	FENDER, FRONT NO.2	1	Rp35.500
9	53274-09G00-000 SUB: 53274B09G00N000	SCREW, UPPER	1	Rp7.000
10	58621-47E00-000 SUB: 58621B47E00N000	GUIDE, FRONT BRAKE CABLE	1	Rp4.000
11	02142-0616A-000 SUB: 02142B0616AN000	SCREW	2	Rp3.000
12	DISCONTINUE SUB: 01550B0612AN000	BOLT	1	-
13	09169-06071-000 SUB: 09169B06071N000	WASHER	3	Rp7.500
14	DISCONTINUE SUB: 48190B16H00N000	PLATE, LICENSE	1	-
15	02142-0635A-000 SUB: 02142B0635AN000	SCREW	2	Rp6.500
