SHOGUN (FL125)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.28 FRAME FIG.29 STAND FIG.30 FOOTREST FIG.31 FUEL TANK FIG.32 FRAME COVER FIG.33 FRONT LEG SHIELD FIG.34 CENTER LEG SHIELD FIG.35 FRONT FENDER FIG.36 HANDLE BAR FIG.37 HANDLE COVER FIG.38 HANDLE LEVER FIG.39 REAR FENDER FIG.40 LUGGAGE BOX FIG.41 LABEL FIG.42 SEAT FIG.43 FRONT FORK DAMPER (FL125SDK7/SCK7/SDK8/RCDFK8)FIG.43A FRONT FORK DAMPER (FL125RCDMK7/RDK8/RMDK8)FIG.44 FRONT FORK BRACKET FIG.45 FRONT WHEEL (FL125SD)FIG.46 FRONT WHEEL (FL125SC/RCDF)FIG.46A FRONT WHEEL (FL125RCDM/RD/RMD)FIG.47 FRONT CALIPER (FL125SD/SC/RCDF)FIG.47A FRONT CALIPER (FL125RCDM/RD/RMD)FIG.48 FRONT MASTER CYLINDER (FL125SD/SC/RCDF)FIG.48A FRONT MASTER CYLINDER (FL125RCDM/RD/RMD)FIG.49 REAR SWINGING ARM (FL125SD/SC)FIG.49A REAR SWINGING ARM (FL125RCDM/RD/RMD/RCDF)FIG.50 CHAINCASE FIG.51 REAR WHELL (FL125SD)FIG.52 REAR WHELL (FL125SC)FIG.52A REAR WHELL (FL125RCDM/RD/RMD/RCDF)FIG.53 REAR CALIPER (FL125RCDM/RD/RMD/RCDF)FIG.54 REAR MASTER CYLINDER

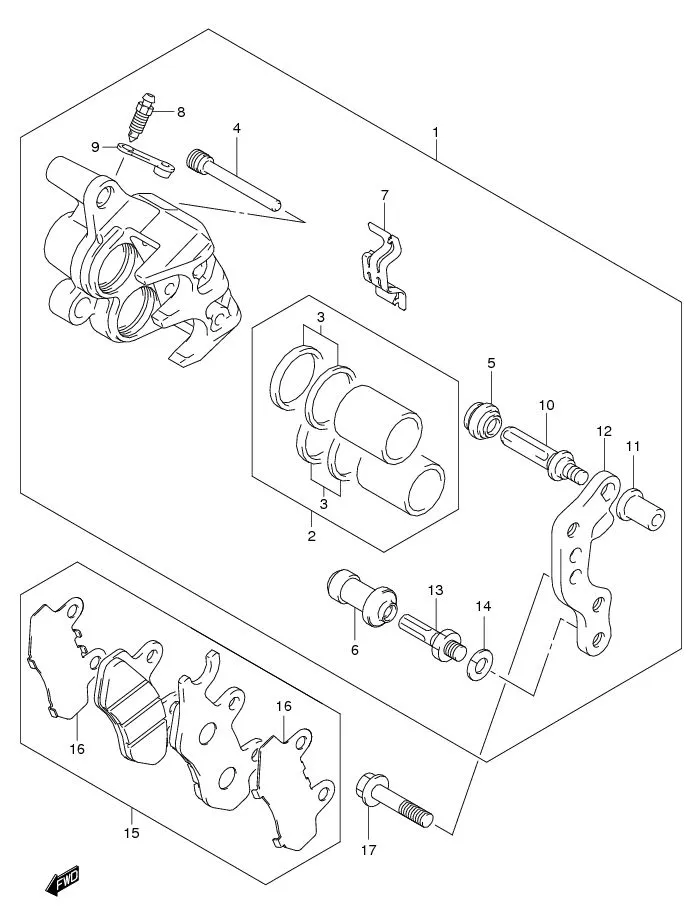

FIG.47A FRONT CALIPER (FL125RCDM/RD/RMD)

FIG.47A FRONT CALIPER (FL125RCDM/RD/RMD)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	59100-07H40-000 SUB: 59100B07H40N000	CALIPERS ASSY, FRONT RH	1	Rp981.500
2	59300-21810-000	•PISTON SET	1	Rp540.500
3	59300-21860-000	••SEAL SET, PISTON	1	Rp184.500
4	59345-14600-000 SUB: 59345-14600L000	•PIN	2	Rp35.000
5	59303-14500-000 SUB: 59303-14500L000	•BOOT	1	Rp12.500
6	59386-13A00-000 SUB: 59386-13A00L000	•BOOT	1	Rp14.000
7	69115-31D10-000 SUB: 69115-31D10L000	•SPRING	1	Rp26.500
8	59121-01A00-000 SUB: 59121-01A00L000	•BLEEDER	1	Rp14.500
9	59122-01A00-000 SUB: 59122-01A00L000	•CAP, BLEEDER	1	Rp3.000
10	59387-00B20-000 SUB: 59387-00B20L000	•PIN	1	Rp25.500
11	59388-00B20-000 SUB: 59388-00B20L000	•NUT	1	Rp28.500
12	59314-13A00-000 SUB: 59314-13A00L000	•WASHER	1	Rp3.000
13	59382-13A00-000 SUB: 59382-13A00L000	•BOLT	1	Rp13.500
14	59351-21D00-000 SUB: 59351-21D00L000	•BRACKET	1	Rp96.500
15	59100-07810-000 SUB: 59100B07810N000	PAD SET	1	Rp87.000
16	69132-31D00-000	•SHIM	2	Rp60.500
17	09103-08107-000 SUB: 09103B08107N000	BOLT (8X33)	2	Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
