SHOGUN (FL125)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.28 FRAME FIG.29 STAND FIG.30 FOOTREST FIG.31 FUEL TANK FIG.32 FRAME COVER FIG.33 FRONT LEG SHIELD FIG.34 CENTER LEG SHIELD FIG.35 FRONT FENDER FIG.36 HANDLE BAR FIG.37 HANDLE COVER FIG.38 HANDLE LEVER FIG.39 REAR FENDER FIG.40 LUGGAGE BOX FIG.41 LABEL FIG.42 SEAT FIG.43 FRONT FORK DAMPER (FL125SDK7/SCK7/SDK8/RCDFK8)FIG.43A FRONT FORK DAMPER (FL125RCDMK7/RDK8/RMDK8)FIG.44 FRONT FORK BRACKET FIG.45 FRONT WHEEL (FL125SD)FIG.46 FRONT WHEEL (FL125SC/RCDF)FIG.46A FRONT WHEEL (FL125RCDM/RD/RMD)FIG.47 FRONT CALIPER (FL125SD/SC/RCDF)FIG.47A FRONT CALIPER (FL125RCDM/RD/RMD)FIG.48 FRONT MASTER CYLINDER (FL125SD/SC/RCDF)FIG.48A FRONT MASTER CYLINDER (FL125RCDM/RD/RMD)FIG.49 REAR SWINGING ARM (FL125SD/SC)FIG.49A REAR SWINGING ARM (FL125RCDM/RD/RMD/RCDF)FIG.50 CHAINCASE FIG.51 REAR WHELL (FL125SD)FIG.52 REAR WHELL (FL125SC)FIG.52A REAR WHELL (FL125RCDM/RD/RMD/RCDF)FIG.53 REAR CALIPER (FL125RCDM/RD/RMD/RCDF)FIG.54 REAR MASTER CYLINDER

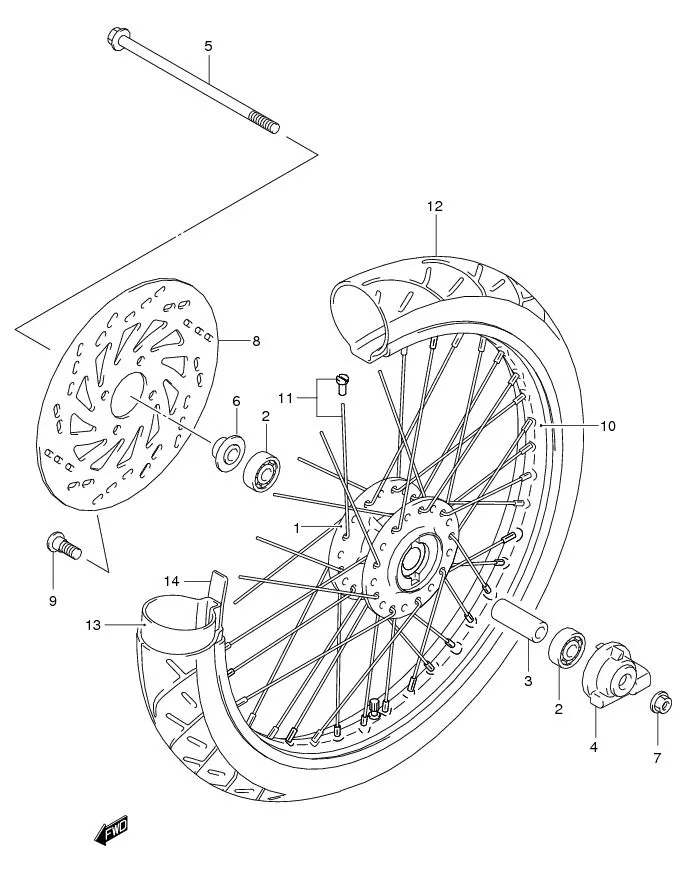

FIG.45 FRONT WHEEL (FL125SD)

FIG.45 FRONT WHEEL (FL125SD)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 54111B09G20N000	HUB, FRONT WHEEL	1	-
2	08123-63007-000 SUB: 08123-63007L000	BEARING	2	Rp32.500
3	DISCONTINUE SUB: 09180-10148L000	SPACER, FRONT HUB (10.2X16X51)	1	-
4	DISCONTINUE SUB: 54600B07H10N000	BOX ASSY, SPEEDOMETER GEAR	1	-
5	54711-13H00-000 SUB: 54711-04701L000	AXLE, FRONT	1	Rp13.000
6	54750-46100-000 SUB: 54750-46100L000	SPACER, FRONT AXLE	1	Rp12.500
7	08319-3110A-000 SUB: 08319B3110AN000	NUT	1	Rp4.500
8	DISCONTINUE SUB: 59211B07H10N000	DISC, FRONT BRAKE	1	-
9	59218-09G10-000 SUB: 59218B09G00N000	BOLT	4	Rp7.000
10	55311-09G40-000 SUB: 55311B09G40N000	RIM, FRONT WHEEL (17X1.40)	1	Rp351.000
11	55320-46100-000 SUB: 55320-46100L000	SPOKE ASSY, FRONT WHEEL	1	Rp44.500
12	DISCONTINUE SUB: 55110B16H20N000	TIRE, FRONT, 70/90-17M/C 38P	1	-
13	DISCONTINUE SUB: 55200B16H30N000	TUBE ASSY, WHEEL INNER	1	-
14	55261B16H30N000	PROTECTOR, WHEEL INNER	1	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
