SHOGUN (FL125)

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.28 FRAME FIG.29 STAND FIG.30 FOOTREST FIG.31 FUEL TANK FIG.32 FRAME COVER FIG.33 FRONT LEG SHIELD FIG.34 CENTER LEG SHIELD FIG.35 FRONT FENDER FIG.36 HANDLE BAR FIG.37 HANDLE COVER FIG.38 HANDLE LEVER FIG.39 REAR FENDER FIG.40 LUGGAGE BOX FIG.41 LABEL FIG.42 SEAT FIG.43 FRONT FORK DAMPER (FL125SDK7/SCK7/SDK8/RCDFK8)FIG.43A FRONT FORK DAMPER (FL125RCDMK7/RDK8/RMDK8)FIG.44 FRONT FORK BRACKET FIG.45 FRONT WHEEL (FL125SD)FIG.46 FRONT WHEEL (FL125SC/RCDF)FIG.46A FRONT WHEEL (FL125RCDM/RD/RMD)FIG.47 FRONT CALIPER (FL125SD/SC/RCDF)FIG.47A FRONT CALIPER (FL125RCDM/RD/RMD)FIG.48 FRONT MASTER CYLINDER (FL125SD/SC/RCDF)FIG.48A FRONT MASTER CYLINDER (FL125RCDM/RD/RMD)FIG.49 REAR SWINGING ARM (FL125SD/SC)FIG.49A REAR SWINGING ARM (FL125RCDM/RD/RMD/RCDF)FIG.50 CHAINCASE FIG.51 REAR WHELL (FL125SD)FIG.52 REAR WHELL (FL125SC)FIG.52A REAR WHELL (FL125RCDM/RD/RMD/RCDF)FIG.53 REAR CALIPER (FL125RCDM/RD/RMD/RCDF)FIG.54 REAR MASTER CYLINDER

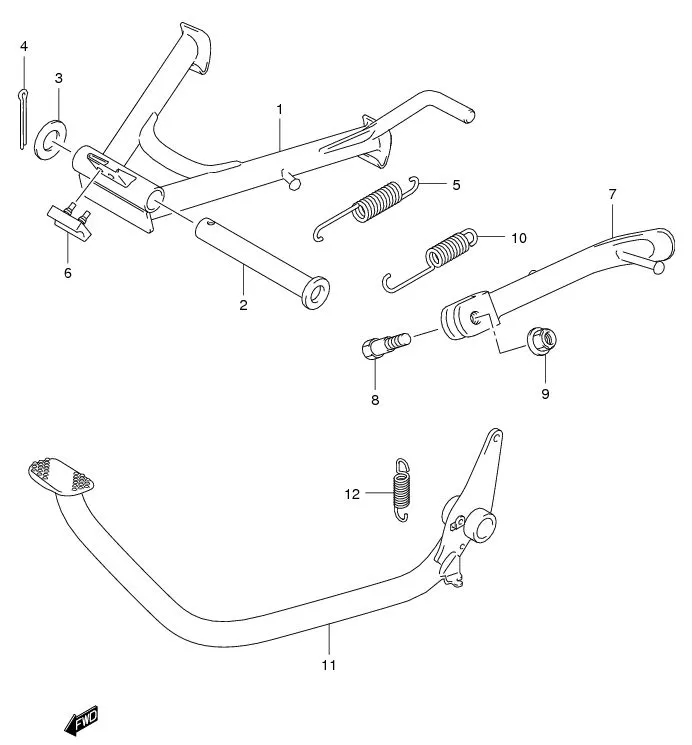

FIG.29 STAND

FIG.29 STAND

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	42100-16H20-000 SUB: 42100B16H10N000	STAND, CENTER	1	Rp150.500
2	42211-25G00-000 SUB: 42211B09G00N000	SHAFT	1	Rp23.500
3	08322-0116B-000 SUB: 08322B0116BN000	WASHER	1	Rp3.500
4	04111-3025A-000 SUB: 04111B3025AN000	COTTER PIN	1	Rp3.500
5	42241-09G00-000 SUB: 42241B09G00N000	SPRING	1	Rp9.000
6	42272-09G00-000 SUB: 42272B09G00N000	CUSHION	1	Rp4.500
7	42310-09G20-000 SUB: 42310B09G20N000	STAND, PROP	1	Rp114.500
8	42341-09G01-000 SUB: 42341B09G01N000	BOLT	1	Rp5.000
9	08319-3110A-000 SUB: 08319B3110AN000	NUT	1	Rp4.500
10	09443-14022-000 SUB: 09443-14022L000	SPRING	1	Rp5.000
11-1	DISCONTINUE SUB: 43110B16H00N000	PEDAL, BRAKE	1	-	FL125SC/SD
11-2	DISCONTINUE SUB: 43110B16H10N000	PEDAL, BRAKE	1	-	FL125RCDM/RD/RMD/RCDF
12	09443-12033-000 SUB: 09443B12033N000	SPRING, RETURN	1	Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
