KARIMUN WAGON R

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 64 FRONT HOOD PANEL FIG. 65 FRONT FENDER FIG. 66 FRONT BODY PANEL FIG. 67 FLOOR PANEL FIG. 68 SIDE BODY PANEL FIG. 69 ROOF PANEL FIG. 70 FRONT BUMPER FIG. 71 REAR BUMPER FIG. 72 INSTRUMENT PANEL FIG. 73 VENTILATOR FIG. 74 COOLING UNIT FIG. 75 HEATER CONTROL FIG. 76 CONSOLE BOX FIG. 77 FLOOR CARPET FIG. 78 INTERIOR TRIM FIG. 79 COVER/CAP FIG. 80 FUEL LID OPENER (GA)FIG. 81 FUEL LID OPENER (GL,GX)FIG. 82 ROOF LINING FIG. 83 ROOF MOLDING (GA)FIG. 84 ROOF MOLDING (GL,GX)FIG. 85 EMBLEM FIG. 86 WINDSHIELD FIG. 87 FRONT DOOR PANEL (GA)FIG. 88 FRONT DOOR PANEL (GL,GX)FIG. 89 FRONT DOOR REGULATOR (GA)FIG. 90 FRONT DOOR REGULATOR (GL,GX)FIG. 91 FRONT DOOR LOCK (GA,GL,GX)FIG. 92 REAR DOOR PANEL (GA,GL)FIG. 93 REAR DOOR PANEL (GX)FIG. 94 REAR DOOR REGULATOR FIG. 95 REAR DOOR LOCK (GA,GL,GX)FIG. 96 BACK DOOR PANEL FIG. 97 BACK DOOR LOCK (GA,GL,GX)FIG. 98 MIRROR/SUNVISOR (GA)FIG. 99 MIRROR/SUNVISOR (GL,GX)FIG. 100 SEAT BELT FIG. 101 FRONT RH SEAT FIG. 102 FRONT LH SEAT (GA,GL)FIG. 103 FRONT LH SEAT (GX)FIG. 104 REAR SEAT FIG. 105 FUEL TANK FIG. 106 TOOL FIG. 107 AIR CONDITIONER FIG. 108 COMPRESSOR

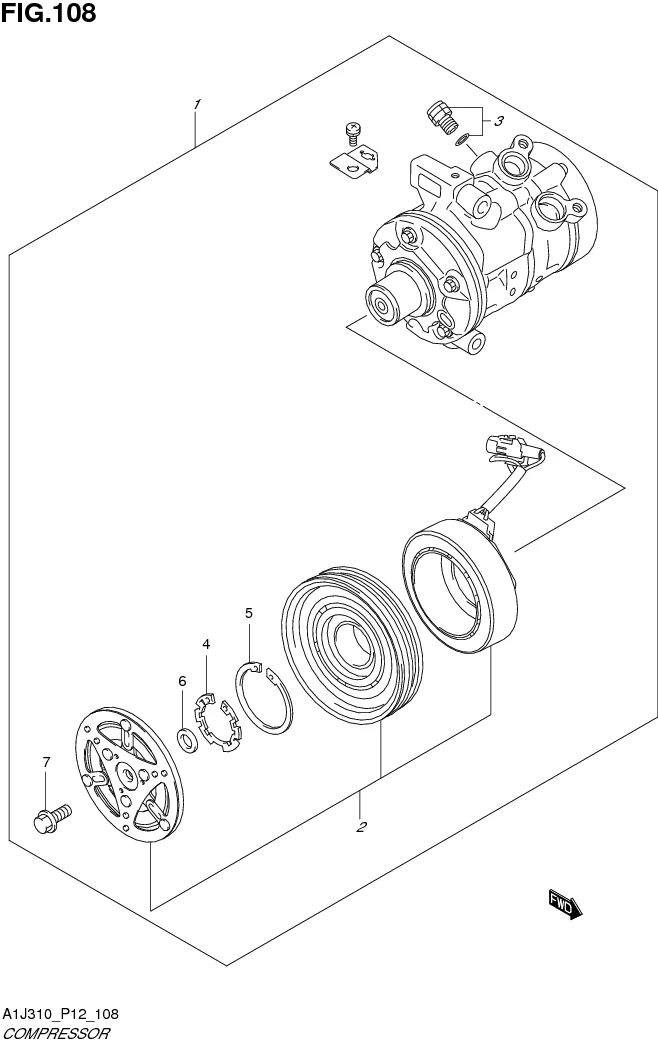

FIG. 108 COMPRESSOR

FIG. 108 COMPRESSOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	95200-68KE0-000 SUB: 95200B68KE0N000	COMPRESSOR ASSY	1	Rp4.550.500
2	95210-68KE0-000 SUB: 95210B68KE0N000	•MAGNET CLUTCH	1	Rp1.345.500
3	95271-68KA1-000 SUB: 95271B68KA1N000	•VALVE, RELIEF	1	Rp144.000
4	09380-77MA0-000 SUB: 09380B77MA0N000	•RING SNAP	1	Rp33.500
5	DISCONTINUE SUB: 09381B77MA0N000	•RING SNAP	1	-
6-1	09160-77MA0-T01 SUB: 09160B77MA0NT01	•WASHER,PLATE	1	Rp11.000	T:0.1
6-2	09160-77MA0-T03 SUB: 09160B77MA0NT03	•WASHER,PLATE	1	Rp11.000	T:0.3
6-3	09160-77MA0-T05 SUB: 09160B77MA0NT05	•WASHER,PLATE	1	Rp11.000	T:0.5
7	01550-77MA0-000 SUB: 01550B77MA0N000	•BOLT	0	Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
