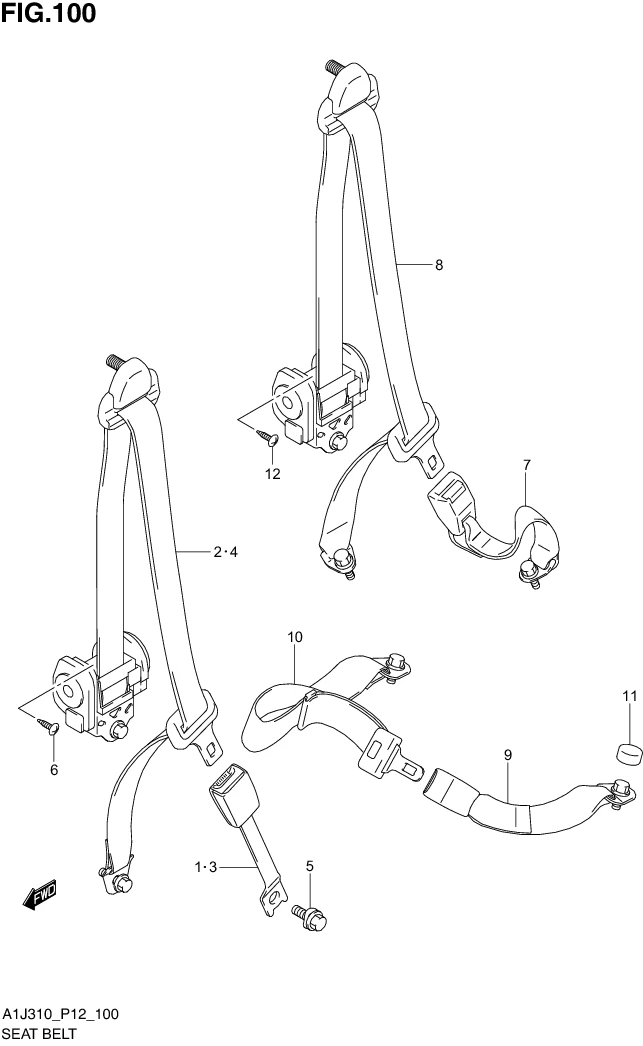

FIG. 100 SEAT BELT

FIG. 100 SEAT BELT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	84910-67LA0-000 SUB: 84910B67LA0N000	BUCKLE ASSY, FRONT BELT RH	1	Rp83.500
2	84920-67LB1-BHE SUB: 84920B67LA0NBHE	TONGUE ASSY, FRONT BELT RH (GRAY/BLACK)	1	Rp283.500
3	84910-67LA0-000 SUB: 84910B67LA0N000	BUCKLE ASSY, FRONT BELT LH	1	Rp83.500
4	84940-67LB1-BHE SUB: 84940B67LA0NBHE	TONGUE ASSY, FRONT BELT LH (GRAY/BLACK)	1	Rp283.500
5	09117M11002-000	BOLT (11X20)	2	Rp19.000
6	02162-0612A-000	SCREW	2	Rp11.000
7	DISCONTINUE SUB: 84950B67LA0N000	BUCKLE ASSY, REAR	2	-
8	84960-67LB1-BHE SUB: 84960B67LA0NBHE	TONGUE ASSY, REAR (GRAY/BLACK)	2	Rp294.000
9	84975-67LB0-000 SUB: 84975B67LA0N000	BUCKLE ASSY, REAR BELT CENTER	1	Rp56.500
10	DISCONTINUE SUB: 84985B67LA0N5PK	TONGUE ASSY, REAR BELT CENTER (BLACK)	1	-
11	84996-65DA0-000	CAP, SHOULDER ADJUSTER	2	Rp49.000
12	02162-0612A-000	SCREW	2	Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
