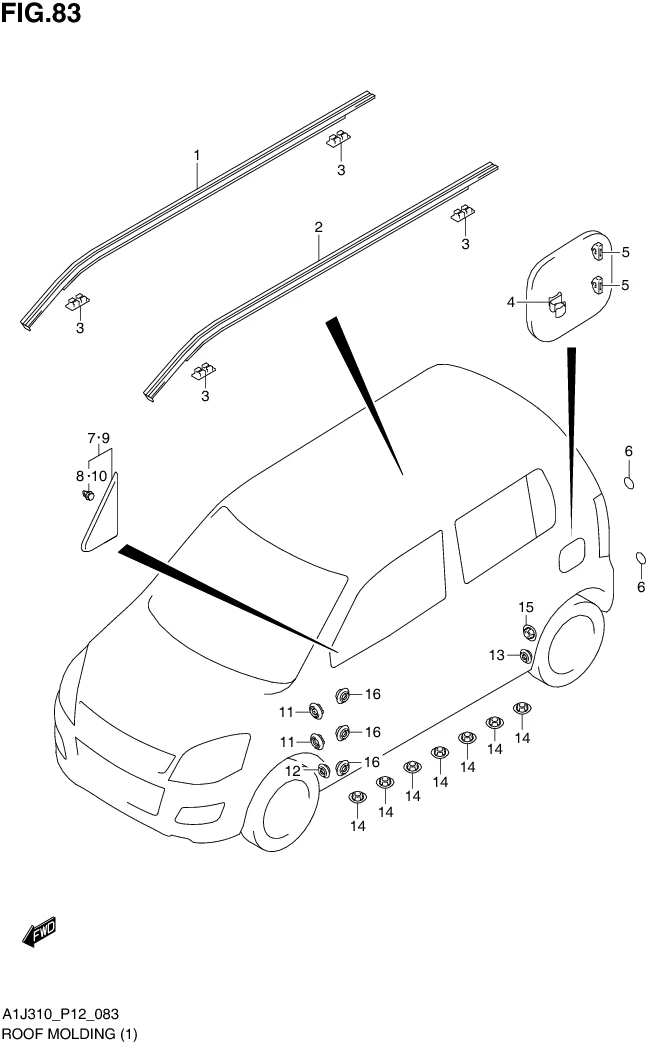

FIG. 83 ROOF MOLDING (GA)

FIG. 83 ROOF MOLDING (GA)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	78151-70K00-000	MOLDING, ROOF RH	1	Rp436.500
2	78161-70K00-000	MOLDING, ROOF LH	1	Rp436.500
3	78155-58J10-000	CLIP, ROOF MOLDING	4	Rp46.500
4	77121-63J00-000	SPRING, FUEL FILLER DOOR	1	Rp49.500
5	77116M60B00-000	CUSHION	2	Rp11.500
6	77191-64L00-000	FILM, BACK DOOR SIDE CUSHION	4	Rp30.500
7	77211-67L00-5PK SUB: 77211B67L00N5PK	GARNISH, FR PILLAR OUTER RH (BLACK)	1	Rp20.500
8	09409-10327-000 SUB: 09409B10312N000	•CLIP	2	Rp5.000
9	77221-67L00-5PK SUB: 77221B67L00N5PK	GARNISH, FR PILLAR OUTER LH (BLACK)	1	Rp20.500
10	09409-10327-000 SUB: 09409B10312N000	•CLIP	2	Rp5.000
11	09250-15012-000 SUB: 09250B15012N000	CAP	4	Rp5.000
12	09250-15012-000 SUB: 09250B15012N000	CAP	2	Rp5.000
13	09250-15012-000 SUB: 09250B15012N000	CAP	2	Rp5.000
14	09250-15L03-000 SUB: 09250B15015N000	CAP (OD:23.5)	14	Rp5.500
15	09250-15L03-000 SUB: 09250B15015N000	CAP (OD:23.5)	2	Rp5.500
16	09250-17001-000 SUB: 09250B17001N000	CAP (OD:25.5)	6	Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
