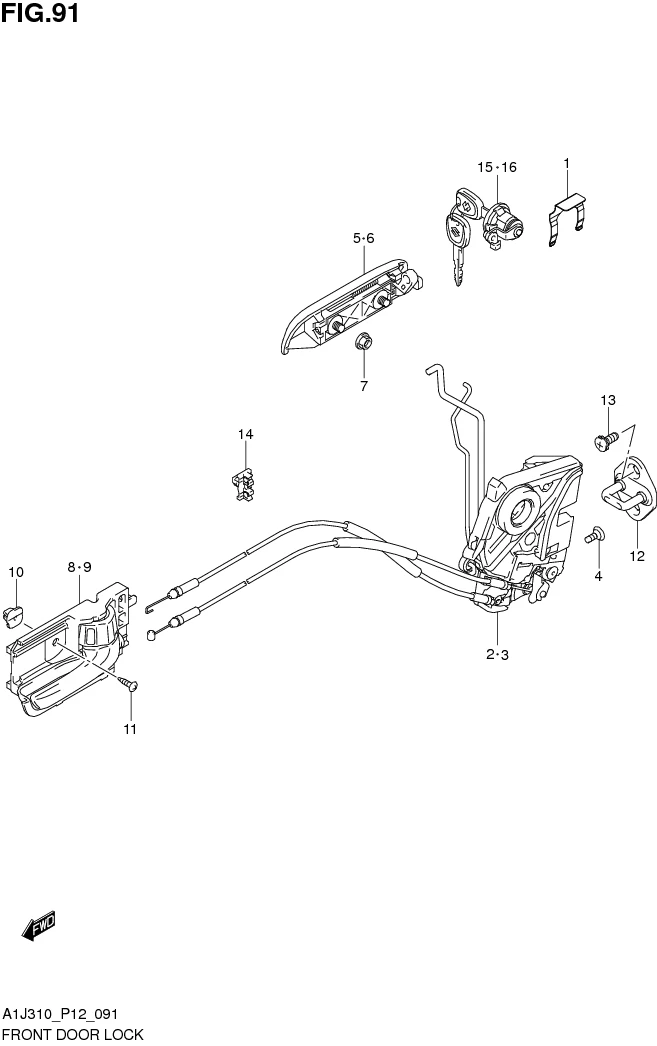

FIG. 91 FRONT DOOR LOCK (GA,GL,GX)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	82291-81A00-000 SUB: 82291B81A00N000	RETAINER, DOOR LATCH	2	Rp48.500
2-1	82201-67LA1-000 SUB: 82201B67LA0N000	LATCH ASSY, FRONT DOOR RH	1	Rp192.500	GA
2-2	82201-67LC1-000 SUB: 82201B67LC0N000	LATCH ASSY, FRONT DOOR RH	1	Rp304.000	GL
2-3	82201-67LB2-000 SUB: 82201B67LB0N000	LATCH ASSY, FRONT DOOR RH	1	Rp283.000	GX
3-1	82202-67LA1-000 SUB: 82202B67LA0N000	LATCH ASSY, FRONT DOOR LH	1	Rp197.500	GA
3-2	82202-67LB2-000 SUB: 82202B67LB0N000	LATCH ASSY, FRONT DOOR LH	1	Rp290.000	GL,GX
4	09137-06028-000	SCREW (6X18)	6	Rp18.500
5-1	82801-67LA1-5PK SUB: 82801B67LA0N5PK	HANDLE ASSY, SIDE DOOR OUT RH (BLACK)	1	Rp119.000	GA,GL
5-2	82801-67LB0-799 SUB: 82801B67LB0N799	HANDLE ASSY, SIDE DOOR OUT RH (BLACK)	1	Rp191.000	GX (PAINT TO MATCH)
6-1	82802-67LA1-5PK SUB: 82802B67LA0N5PK	HANDLE ASSY, SIDE DOOR OUT LH (BLACK)	1	Rp119.000	GA,GL
6-2	82802-67LB0-799 SUB: 82802B67LB0N799	HANDLE ASSY, SIDE DOOR OUT LH (BLACK)	1	Rp191.000	GX (PAINT TO MATCH)
7	08316-1006A-000 SUB: 08316B1006AN000	NUT	4	Rp2.000
8-1	83110M75J01-5PK SUB: 83110M75J00-5PK	HANDLE, SIDE DOOR INSIDE RH (BLACK)	1	Rp153.000	GA,GL
8-2	83110M75J31-GJL SUB: 83110M75J30-GJL	HANDLE, SIDE DOOR INSIDE RH (BLACK/SILVER)	1	Rp177.500	GX
9-1	83130M75J01-5PK SUB: 83130M75J00-5PK	HANDLE, SIDE DOOR INSIDE LH (BLACK)	1	Rp153.000	GA,GL
9-2	83130M75J31-GJL SUB: 83130M75J30-GJL	HANDLE, SIDE DOOR INSIDE LH (BLACK/SILVER)	1	Rp177.500	GX
10	09148-05031-000	NUT	2	Rp18.000
11	09132-05058-000	SCREW	2	Rp14.000
12	82610-67LA0-000 SUB: 82610B67LA0N000	STRIKER, DOOR LATCH	2	Rp21.500
13	09137-08014-000 SUB: 09137-08004-000	SCREW (8X18)	4	Rp23.000
14	83271M50E00-000	CLIP, DOOR HANDLE ROD	2	Rp6.500
15	82270-67830-000 SUB: 82270B67830N000	CYLINDER, FR DOOR LOCK RH	1	Rp889.000
16	82280-67830-000 SUB: 82280B67830N000	CYLINDER, FR DOOR LOCK LH	1	Rp1.109.000
