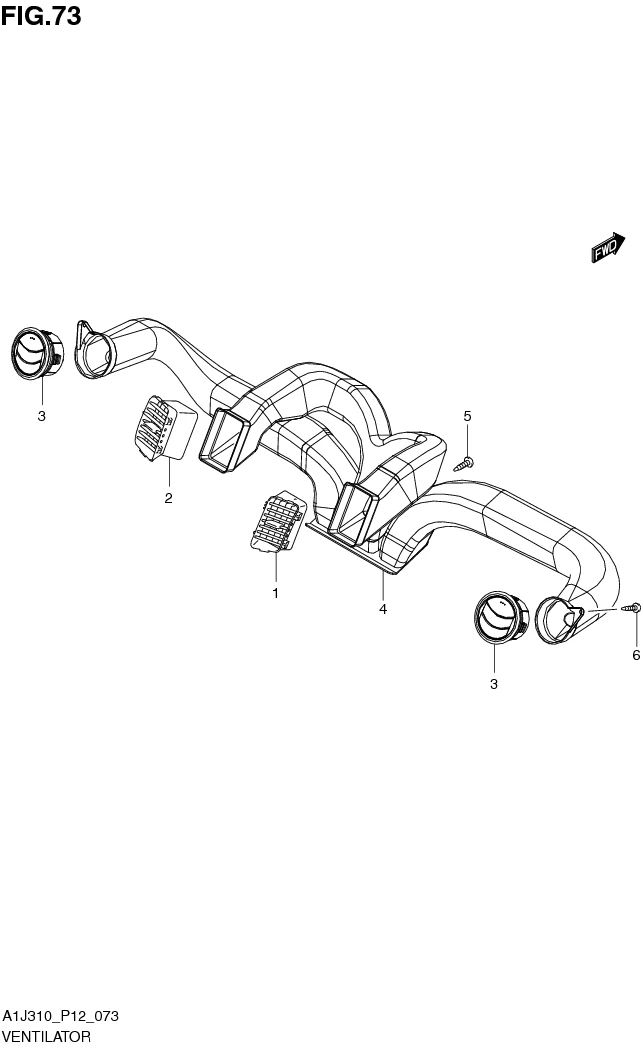

FIG. 73 VENTILATOR

FIG. 73 VENTILATOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	73610-67L10-5PK SUB: 73610B67L10N5PK	LOUVER, CTR VENT RH (BLACK)	1	Rp90.000
2	73620-67L10-5PK SUB: 73620B67L10N5PK	LOUVER, CTR VENT LH (BLACK)	1	Rp88.500
3-1	73630-67L10-5PK SUB: 73630B67L10N5PK	LOUVER, SIDE VENT (BLACK)	2	Rp71.500	GA,GL
3-2	73630-67L10-GJL SUB: 73630B67L10NGJL	LOUVER, SIDE VENT(BLACK/SILVER)	2	Rp155.500	GX
4	74620-67L10-000 SUB: 74620B67L10N000	DUCT, VENT	1	Rp130.500
5	03141-0516B-000 SUB: 03141M0512A-000	SCREW	1	Rp3.500
6	03541-0516A-000 SUB: 03541B0516AN000	SCREW	2	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
