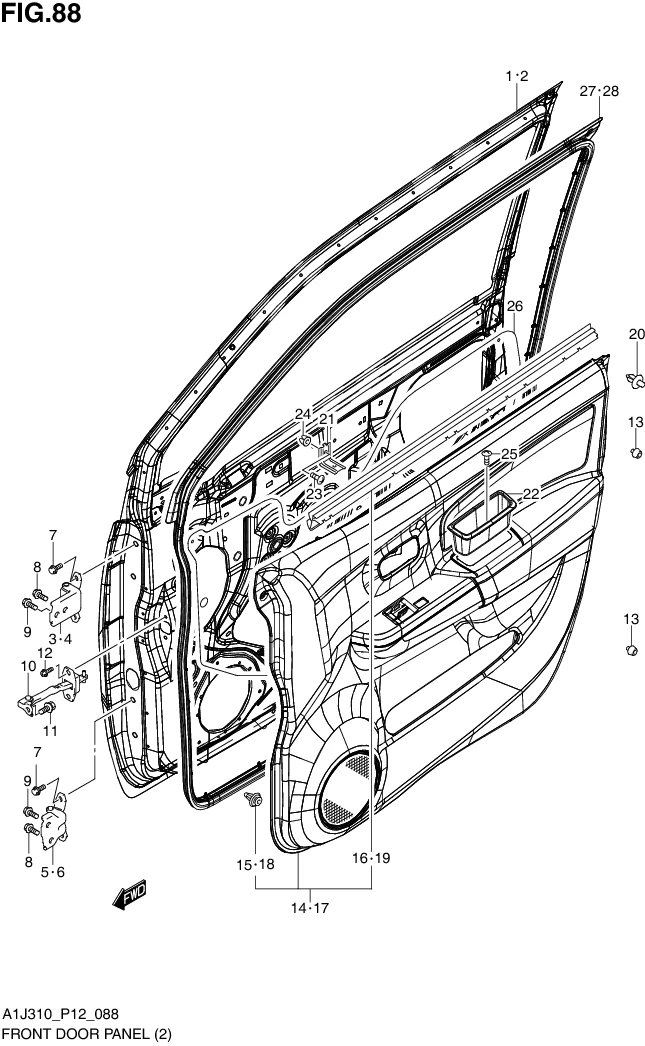

FIG. 88 FRONT DOOR PANEL (GL,GX)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	68001-67LA0-000 SUB: 68001B67L20N000	PANEL ASSY, FRONT DOOR RH	1	Rp2.545.500
2	68002-67LA0-000 SUB: 68002B67L20N000	PANEL ASSY, FRONT DOOR LH	1	Rp2.545.500
3	69310-72J00-000 SUB: 69310B72J00N000	HINGE, FRONT DOOR UPPER RH	1	Rp115.500
4	69320-72J00-000 SUB: 69320B72J00N000	HINGE, FRONT DOOR UPPER LH	1	Rp115.500
5	69330-81J00-000 SUB: 69330B81J00N000	HINGE, FRONT DOOR LOWER RH	1	Rp103.500
6	69340-81J00-000 SUB: 69340B81J00N000	HINGE, FRONT DOOR LOWER LH	1	Rp103.500
7	09103M08557-000 SUB: 09103M08389-000	BOLT (8X24)	8	Rp8.500
8	09113-08001-000	BOLT (8X20)	4	Rp18.500
9	01551-0820A-000	BOLT	4	Rp17.500
10	81810-82K01-000	STOP, FRONT DOOR OPEN	2	Rp187.000
11	09112-08015-000	BOLT (8X25)	2	Rp32.000
12	09122-86004-000	SCREW (6X20)	4	Rp15.000
13	82711-65J00-000	STOPPER, FRONT DOOR	4	Rp34.000
14-1	83701-67L80-5PK SUB: 83701B67L80N5PK	TRIM, FRONT DOOR RH (BLACK)	1	Rp769.500	GL
14-2	83701-67L50-GJL SUB: 83701B67L50NGJL	TRIM, FRONT DOOR RH (BLACK/SILVER)	1	Rp865.500	GX
15	09409-10327-000 SUB: 09409B10312N000	•CLIP	7	Rp5.000
16	83719-67LA0-000 SUB: 83719B67LA0N000	•WEATHERSTRIP, FR DOOR INNER RH	1	Rp72.000
17-1	83702-67L80-5PK SUB: 83702B67L80N5PK	TRIM, FRONT DOOR LH (BLACK)	1	Rp769.500	GL
17-2	83702-67L50-GJL SUB: 83702B67L50NGJL	TRIM, FRONT DOOR LH (BLACK/SILVER)	1	Rp865.500	GX
18	09409-10327-000 SUB: 09409B10312N000	•CLIP	7	Rp5.000
19	83729-67LA0-000 SUB: 83729B67LA0N000	•WEATHERSTRIP, FR DOOR INNER LH	1	Rp73.500
20	09409-06314-5PK SUB: 09409B06314N5PK	CLIP (BLACK)	4	Rp3.500
21	83751M68K00-000	BRACKET, SIDE DOOR TRIM	2	Rp6.500
22	83799-73H00-5PK SUB: 83799B73H00N5PK	HANDLE, SIDE DOOR TRIM (BLACK)	2	Rp21.500
23	03241M0612A-000	SCREW	2	Rp6.500
24	71851M70F00-000 SUB: 09148M06007-000	NUT	2	Rp4.000
25	09132-05058-000	SCREW (5X12)	2	Rp14.000
26	83911-67L10-000 SUB: 83911B67L10N000	COVER, DOOR SEALING	2	Rp24.500
27	84641-67LB0-000 SUB: 84641B67LA0N000	WEATHERSTRIP, FR DR OPNG RH	1	Rp224.500
28	DISCONTINUE SUB: 84651B67LA0N000	WEATHERSTRIP, FR DR OPNG LH	1	-
