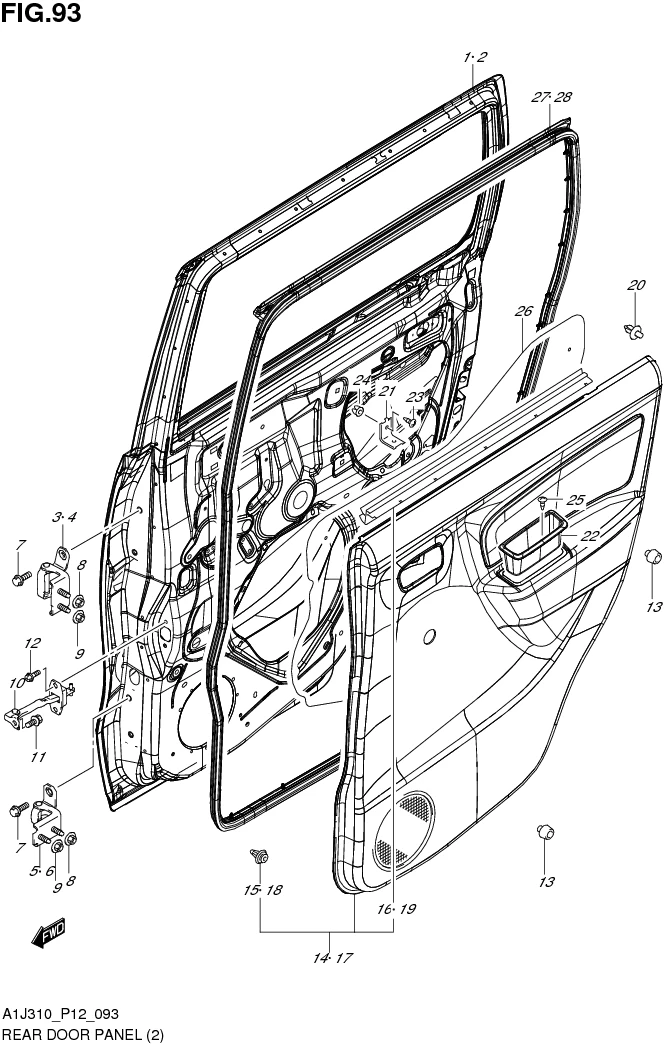

FIG. 93 REAR DOOR PANEL (GX)

No	No. Part	Description	Qty	Price Per Pcs
1	68003-67LA2-000 SUB: 68003B67L10N000	PANEL ASSY, REAR DOOR RH	1	Rp3.139.500
2	68004-67LA2-000 SUB: 68004B67L10N000	PANEL ASSY, REAR DOOR LH	1	Rp3.139.500
3	69410-72J00-000 SUB: 69410B72J00N000	HINGE, REAR DOOR UPPER RH	1	Rp115.500
4	69420-72J00-000 SUB: 69420B72J00N000	HINGE, REAR DOOR UPPER LH	1	Rp115.500
5	69430-72J00-000 SUB: 69430B72J00N000	HINGE, REAR DOOR LOWER RH	1	Rp117.500
6	69440-72J00-000 SUB: 69440B72J00N000	HINGE, REAR DOOR LOWER LH	1	Rp117.500
7	09103M08557-000 SUB: 09103M08389-000	BOLT (8X24)	8	Rp8.500
8	09159-08132-000	NUT	4	Rp19.500
9	08361-2508A-000	NUT	4	Rp16.500
10	81830-58J02-000	STOP, REAR DOOR OPEN	2	Rp343.000
11	09112-08015-000	BOLT (8X25)	2	Rp32.000
12	09122-86004-000	SCREW (6X20)	4	Rp15.000
13	82711-65J00-000	STOPPER, REAR DOOR	4	Rp34.000
14	83703-67L60-5PK SUB: 83703B67L60N5PK	TRIM, REAR DOOR RH (BLACK)	1	Rp680.000
15	09409-10327-000 SUB: 09409B10312N000	•CLIP	5	Rp5.000
16	83739-67LA0-000 SUB: 83739B67LA0N000	•WEATHERSTRIP, RR DOOR INNER RH	1	Rp65.500
17	83704-67L60-5PK SUB: 83704B67L60N5PK	TRIM, REAR DOOR LH (BLACK)	1	Rp680.000
18	09409-10327-000 SUB: 09409B10312N000	•CLIP	5	Rp5.000
19	83749-67LA0-000 SUB: 83749B67LA0N000	•WEATHERSTRIP, RR DOOR INNER LH	1	Rp65.500
20	09409-06314-5PK SUB: 09409B06314N5PK	CLIP (BLACK)	2	Rp3.500
21	83751M68K00-000	BRACKET, SIDE DOOR TRIM	2	Rp6.500
22	83799-73H00-5PK SUB: 83799B73H00N5PK	HANDLE, SIDE DOOR TRIM (BLACK)	2	Rp21.500
23	03241M0612A-000	SCREW	2	Rp6.500
24	71851M70F00-000 SUB: 09148M06007-000	NUT	2	Rp4.000
25	09132-05058-000	SCREW (5X12)	2	Rp14.000
26	83913-67L10-000 SUB: 83913B67L10N000	COVER, DOOR SEALING	2	Rp26.500
27	DISCONTINUE SUB: 84661B67LA0N000	WEATHERSTRIP, RR DR OPNG RH	1	-
28	84671-67LB0-000 SUB: 84671B67LA0N000	WEATHERSTRIP, RR DR OPNG LH	1	Rp210.500
