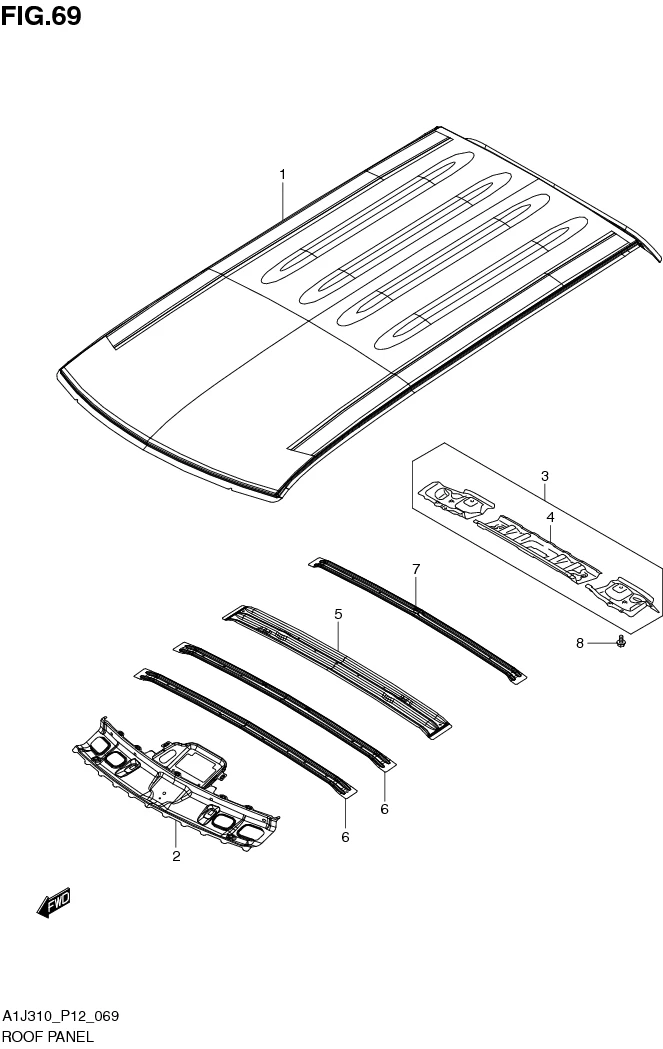

FIG. 69 ROOF PANEL

FIG. 69 ROOF PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	65111-67L00-000 SUB: 65111B67L00N000	PANEL, ROOF	1	Rp3.028.500
2	65120-67LG0-000 SUB: 65120B67LG0N000	MEMBER, ROOF FRONT	1	Rp782.500
3	65130-70K00-000 SUB: 65130B70K00N000	MEMBER, ROOF BACK	1	Rp752.500
4	65131-70K00-000 SUB: 65131B70K00N000	•MEMBER,ROOF BACK INNER	1	Rp372.000
5	65151-67LG0-000 SUB: 65151B67LG0N000	MEMBER, ROOF CTR INNER	1	Rp714.500
6	65152-70K00-000 SUB: 65152B70K00N000	MEMBER, ROOF NO.2	2	Rp1.096.000
7	65153-70K00-000 SUB: 65153B70K00N000	MEMBER, ROOF NO.3	1	Rp1.096.000
8	DISCONTINUE SUB: 01550B0612AN000	BOLT	6	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
