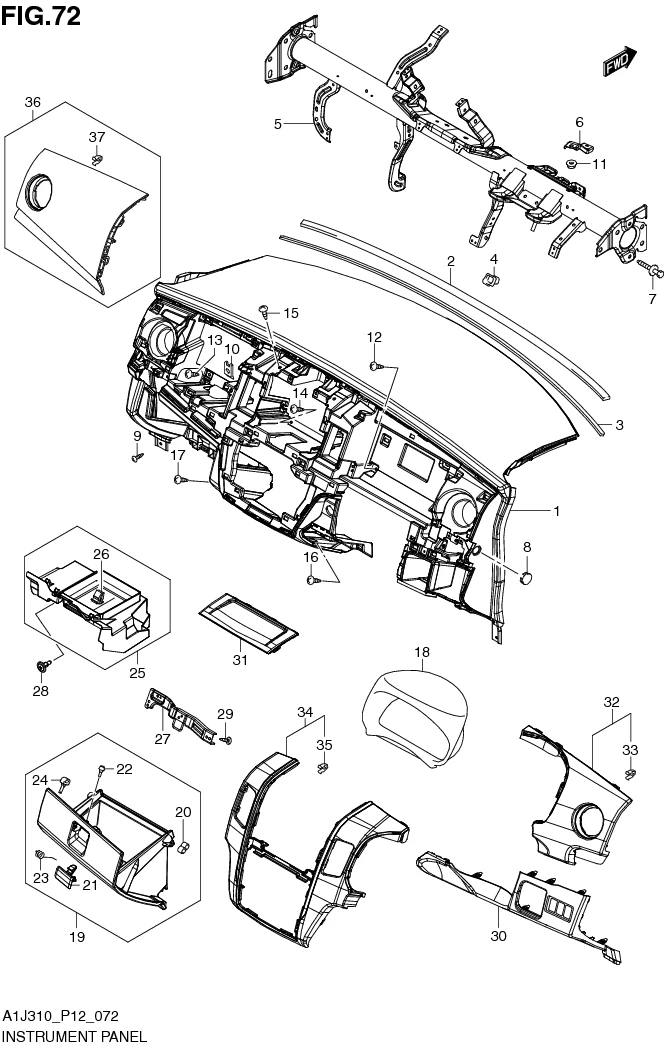

FIG. 72 INSTRUMENT PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	73111-67L50-5PK SUB: 73111B67L50N5PK	PANEL, INSTRUMENT MAIN (BLACK)	1	Rp3.592.500
2	73118-58J00-000 SUB: 73118B58J00N000	SEAL, INSTRUMENT PANEL	1	Rp10.000
3	73121M68K10-000	SILENCER, I/P TOP	1	Rp85.500
4	73123-51K00-000	SOCKET, I/P PIN	3	Rp43.000
5	73200-67L50-000 SUB: 73200B67L50N000	MEMBER, STEERING SUPPORT	1	Rp638.000
6	73272-67L00-000 SUB: 73272B67L00N000	STIFFENER, STEERING COLUMN BRKT	1	Rp11.000
7	73291-50G20-000 SUB: 73291-50G03-000	BOLT, STEERING SUPPORT MEMBER	4	Rp42.500
8	73871-73H00-P4Z SUB: 73871B73H00NP4Z	CAP, I/P SIDE (GRAY)	3	Rp9.000
9	09138-06049-000	SCREW (6X12)	2	Rp17.000
10	09148-05045-000 SUB: 09148B05045N000	NUT	1	Rp4.000
11	09159-08127-000 SUB: 09159-08135-000	NUT	1	Rp11.000
12	03141-0516B-000 SUB: 03141M0512A-000	SCREW	2	Rp3.500
13	03141-0516B-000 SUB: 03141M0512A-000	SCREW	3	Rp3.500
14	03141-0516B-000 SUB: 03141M0512A-000	SCREW	2	Rp3.500
15	03141-0516B-000 SUB: 03141M0512A-000	SCREW	2	Rp3.500
16	03141-0516B-000 SUB: 03141M0512A-000	SCREW	2	Rp3.500
17	03541-0516A-000 SUB: 03541B0516AN000	SCREW	2	Rp3.500
18	73311-67L50-5PK SUB: 73311B67L50N5PK	PANEL, INSTRUMENT CLUST (BLACK)	1	Rp83.500
19	73410-67L10-5PK SUB: 73410B67L00N5PK	BOX, GLOVE (BLACK)	1	Rp126.500
20	73413M65D00-000	•CUSHION, GLOVE BOX	2	Rp6.500
21	73413-67L00-5PK SUB: 73413B67L00N5PK	•KNOB, GLOVE BOX LID (BLACK)	1	Rp9.500
22	73413M82C00-000	•CUSHION, GLOVE BOX	1	Rp11.500
23	73423-62D00-000	•SPRING, GLOVE BOX KNOB	1	Rp39.500
24	73461M54G00-000	•CUSHION, GLOVE BOX SIDE	2	Rp5.500
25	73421-67L50-000 SUB: 73421B67L50N000	TRAY, GLOVE BOX UPPER	1	Rp68.500
26	09409-08349-000 SUB: 09409B08342N000	•CLIP	3	Rp4.500
27	73480-67L00-000 SUB: 73480B67L00N000	REINF, GLOVE BOX UPPER	1	Rp22.500
28	09409-06322-5PK	CLIP (BLACK)	2	Rp19.000
29	03541-0516A-000 SUB: 03541B0516AN000	SCREW	3	Rp3.500
30	73811-67L50-5PK SUB: 73811B67L50N5PK	COVER, STEERING COLUMN HOLE (BLACK)	1	Rp86.000
31	73826-67L00-5PK SUB: 73826B67L00N5PK	TRAY, I/P CENTER UPPER (BLACK)	1	Rp23.000
32	73831-67L50-R8H SUB: 73831B67L50NR8H	GARNISH, I/P RH (BEIGE)	1	Rp61.000
33	09409-08349-000 SUB: 09409B08342N000	•CLIP	1	Rp4.500
34-1	73832-67L50-R8H SUB: 73832B67L50NR8H	GARNISH, I/P CENTER LOUVER (BEIGE)	1	Rp85.500	GA,GL
34-2	73832-67L50-AMW SUB: 73832B67L50NAMW	GARNISH, I/P CENTER LOUVER (BEIGE/SILVER)	1	Rp86.000	GX
35	09409-08349-000 SUB: 09409B08342N000	•CLIP	8	Rp4.500
36	73833-67L50-R8H SUB: 73833B67L50NR8H	GARNISH, I/P LH (BEIGE)	1	Rp87.500
37	09409-08349-000 SUB: 09409B08342N000	•CLIP	1	Rp4.500
