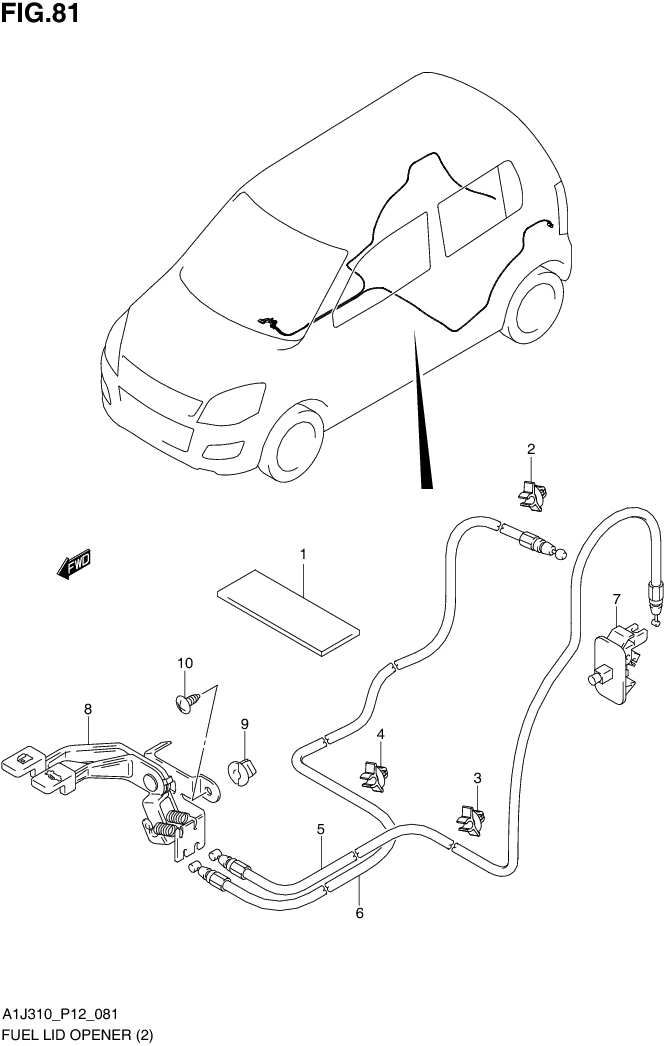

FIG. 81 FUEL LID OPENER (GL,GX)

FIG. 81 FUEL LID OPENER (GL,GX)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	36930M82000-000 SUB: 36930M82010-000	TAPE, BACK DOOR OPENER	1	Rp6.500
2	75411-67LG0-000 SUB: 75411B67LG0N000	CLAMP, BACK DOOR OPENER	2	Rp6.500
3	75411-76G30-000	CLAMP, FUEL LID OPENER	3	Rp32.000
4	75411-76G30-000	CLAMP, BACK DOOR OPENER	1	Rp32.000
5	76430-67LG0-000 SUB: 76430B67LG0N000	CABLE, FUEL LID OPENER	1	Rp53.000
6	76440-67LG0-000 SUB: 76440B67LG0N000	CABLE, BACK DOOR OPENER	1	Rp61.000
7	76520-77M00-000 SUB: 76520B77M00N000	OPENER, FUEL LID	1	Rp95.500
8	83310-67LG0-000 SUB: 83310B67LG0N000	LEVER, FUEL LID OPENER	1	Rp43.500
9	71851M70F00-000 SUB: 09148M06007-000	NUT	1	Rp4.000
10	03241M0612A-000	SCREW	1	Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
