KARIMUN WAGON R

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 64 FRONT HOOD PANEL FIG. 65 FRONT FENDER FIG. 66 FRONT BODY PANEL FIG. 67 FLOOR PANEL FIG. 68 SIDE BODY PANEL FIG. 69 ROOF PANEL FIG. 70 FRONT BUMPER FIG. 71 REAR BUMPER FIG. 72 INSTRUMENT PANEL FIG. 73 VENTILATOR FIG. 74 COOLING UNIT FIG. 75 HEATER CONTROL FIG. 76 CONSOLE BOX FIG. 77 FLOOR CARPET FIG. 78 INTERIOR TRIM FIG. 79 COVER/CAP FIG. 80 FUEL LID OPENER (GA)FIG. 81 FUEL LID OPENER (GL,GX)FIG. 82 ROOF LINING FIG. 83 ROOF MOLDING (GA)FIG. 84 ROOF MOLDING (GL,GX)FIG. 85 EMBLEM FIG. 86 WINDSHIELD FIG. 87 FRONT DOOR PANEL (GA)FIG. 88 FRONT DOOR PANEL (GL,GX)FIG. 89 FRONT DOOR REGULATOR (GA)FIG. 90 FRONT DOOR REGULATOR (GL,GX)FIG. 91 FRONT DOOR LOCK (GA,GL,GX)FIG. 92 REAR DOOR PANEL (GA,GL)FIG. 93 REAR DOOR PANEL (GX)FIG. 94 REAR DOOR REGULATOR FIG. 95 REAR DOOR LOCK (GA,GL,GX)FIG. 96 BACK DOOR PANEL FIG. 97 BACK DOOR LOCK (GA,GL,GX)FIG. 98 MIRROR/SUNVISOR (GA)FIG. 99 MIRROR/SUNVISOR (GL,GX)FIG. 100 SEAT BELT FIG. 101 FRONT RH SEAT FIG. 102 FRONT LH SEAT (GA,GL)FIG. 103 FRONT LH SEAT (GX)FIG. 104 REAR SEAT FIG. 105 FUEL TANK FIG. 106 TOOL FIG. 107 AIR CONDITIONER FIG. 108 COMPRESSOR

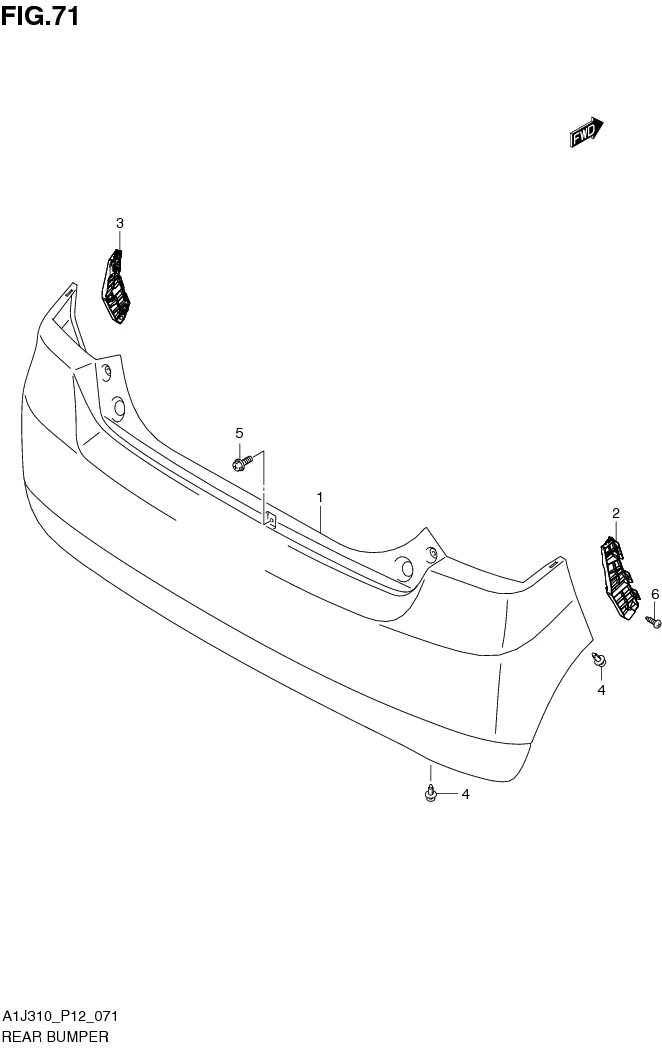

FIG. 71 REAR BUMPER

FIG. 71 REAR BUMPER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	71811-67LG0-5PK SUB: 71811B67LG0N5PK	BUMPER, REAR (BLACK)	1	Rp906.000	GA
1-2	71811-67LG0-799 SUB: 71811B67LG0N799	BUMPER, REAR (PRIMARY)	1	Rp778.500	GL,GX (PAINT TO MATCH)
2	71812-67L00-000 SUB: 71812B67L00N000	HOLDER, RR BUMPER SIDE RH	1	Rp18.500
3	71813-67L00-000 SUB: 71813B67L00N000	HOLDER, RR BUMPER SIDE LH	1	Rp18.500
4	09409-08327-000	CLIP	6	Rp15.000
5	01550-0616A-000 SUB: 01550B0616AN000	SCREW	3	Rp3.500
6	03541-0512A-000 SUB: 03541M0512A-000	SCREW	4	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
