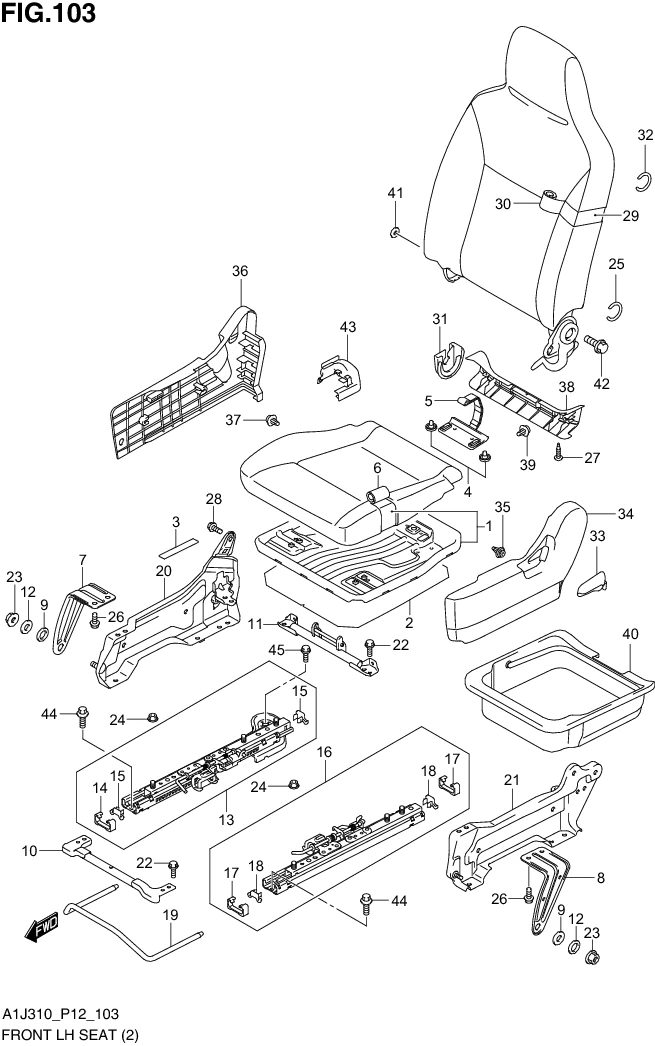

FIG. 103 FRONT LH SEAT (GX)

No	No. Part	Description	Qty	Price Per Pcs
1	85106-67LC0-000 SUB: 85106B67LC0N000	CUSHION SUB ASSY, FRONT LH	1	Rp539.500
2	85163-67LA0-000 SUB: 85163B67LA0N000	SILENCER, FRONT CUSHION	1	Rp11.000
3	85169-67LA0-000 SUB: 85169B67LA0N000	TAPE, FRONT CUSHION	1	Rp9.500
4	85299-67L20-000 SUB: 85299B67L20N000	CUSHION, FRONT CUSHION	2	Rp9.500
5	85460-58JA0-000	LOCK, FRONT CUSHION	1	Rp166.000
6	85680-67LB0-AP6 SUB: 85680B67LB0NAP6	TRIM, FRONT CUSHION (BEIGE/GRAY)	1	Rp296.500
7	85651-67LB0-000 SUB: 85651B82KA0N000	HINGE, FRONT CUSHION INSIDE	1	Rp29.500
8	85652-67LB0-000 SUB: 85652B82KA0N000	HINGE, FRONT CUSHION OUTSIDE	1	Rp29.500
9	85653-67L20-000 SUB: 85653B67L20N000	WASHER, FR CUSHION HINGE WAVE	2	Rp8.500
10	85760-58JA0-000 SUB: 85760B58JA0N000	MEMBER, FRONT CONV FRONT	1	Rp342.000
11	85770-67LB0-000 SUB: 85770B67L20N000	MEMBER, FRONT CONV REAR	1	Rp342.000
12	86293-58J00-000 SUB: 86293B58J00N000	WASHER, FR CUSH HINGE	2	Rp8.500
13	86620-67LA0-000 SUB: 86620B67LA0N000	ADJUSTER ASSY, FR INSIDE LH	1	Rp496.500
14	86652-67LA0-000 SUB: 86652B67LA0N000	•CAP, FRONT ADJUSTER LOWER	1	Rp106.000
15	86654-67LA0-000 SUB: 86654B67LA0N000	•CAP, FRONT ADJUSTER UPPER	2	Rp106.000
16	86640-67LA0-000 SUB: 86640B67LA0N000	ADJUSTER ASSY, FR OUTSIDE LH	1	Rp416.000
17	86652-67LA0-000 SUB: 86652B67LA0N000	•CAP, FRONT ADJUSTER LOWER	2	Rp106.000
18	86654-67LA0-000 SUB: 86654B67LA0N000	•CAP, FRONT ADJUSTER UPPER	2	Rp106.000
19	86691-67LA0-000 SUB: 86691B67LA0N000	HANDLE, FRONT SEAT ADJUSTER	1	Rp263.500
20	86720-67LC0-000 SUB: 86720B67LC0N000	RISER, FRONT INSIDE LH	1	Rp164.500
21	86740-67LC0-000 SUB: 86740B67LC0N000	RISER, FRONT OUTSIDE LH	1	Rp156.000
22	01550-0812A-000 SUB: 01550B0812AN000	BOLT	8	Rp3.500
23	08316-1008A-000 SUB: 08316B1008AN000	NUT	2	Rp3.500
24	08316-1010A-000 SUB: 08316B1010AN000	NUT	6	Rp3.500
25	09387-19001-000 SUB: 09387B19001N000	RING	8	Rp9.000
26	01550-0812A-000 SUB: 01550B0812AN000	BOLT	4	Rp3.500
27	03241-0512A-000 SUB: 03241B0512AN000	SCREW	2	Rp3.500
28	85295-58J01-000 SUB: 85295B58J01N000	BOLT, FRONT BACK FIX	1	Rp34.000
29	85306-67LA0-000 SUB: 85306B67LA0N000	BACK S/ASSY, FRONT LH	1	Rp937.000
30	85880-67LB0-AP6 SUB: 85880B67LB0NAP6	TRIM, FRONT BACK LH (BEIGE/GRAY)	1	Rp443.000
31	85722-67LA0-R8H SUB: 85722B67LA0NR8H	COVER, RECLINING INSIDE LH (GRAY)	1	Rp16.500
32	09387-19001-000 SUB: 09387B19001N000	RING	5	Rp9.000
33	85711-67LA0-R8H SUB: 85711B67LA0NR8H	KNOB, RECLINING LH (BEIGE)	1	Rp11.000
34	85721-67LA0-R8H SUB: 85721B67LA0NR8H	COVER, RECLINING OUTSIDE LH (BEIGE)	1	Rp65.000
35	09409-10313-000	CLIP	2	Rp14.000
36	85741-67LA0-R8H SUB: 85741B67LA0NR8H	COVER, HINGE OUTSIDE LH (BEIGE)	1	Rp183.000
37	09409-10313-000	CLIP	2	Rp14.000
38	85781-67L00-R8H SUB: 85781B67L00NR8H	COVER, MEMBER REAR (BEIGE)	1	Rp52.000
39	09409-10313-000	CLIP	2	Rp14.000
40	86510-67L00-000 SUB: 86510B67L00N000	BOX ASSY, CONV	1	Rp630.500
41	87286-58J10-000 SUB: 87286B58J10N000	BUSH, FRONT BACK FIX	1	Rp4.500
42	01550-1016A-000 SUB: 01550B1016AN000	BOLT	2	Rp5.500
43	85995-85K00-5PK SUB: 85995B85K00N5PK	COVER, REAR INSIDE LH (BLACK)	1	Rp30.500
44	09119-08097-000 SUB: 09119-08094-000	BOLT	3	Rp27.500
45	09119-10085-000	BOLT	1	Rp27.000
