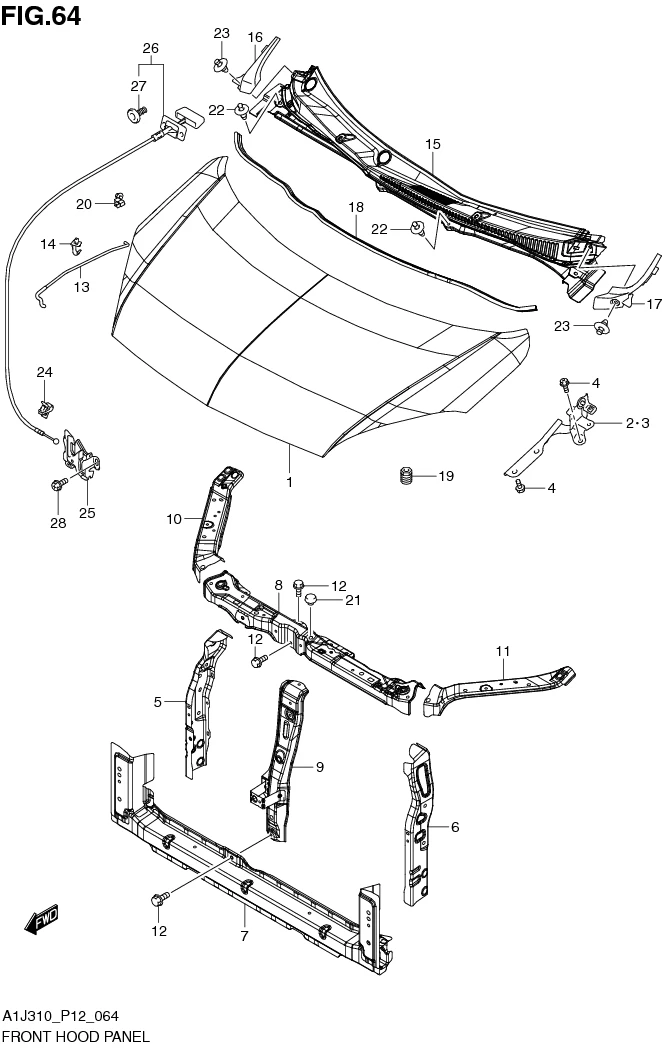

FIG. 64 FRONT HOOD PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	57300-67LG0-000 SUB: 57300B67L00N000	PANEL, FRONT HOOD	1	Rp1.030.500
2	57410-67L00-000 SUB: 57410B67L00N000	HINGE, FRONT HOOD RH	1	Rp24.500
3	57420-67L00-000 SUB: 57420B67L00N000	HINGE, FRONT HOOD LH	1	Rp24.500
4	DISCONTINUE SUB: 01550B0612AN000	BOLT	8	-
5	58110-67LG1-000 SUB: 58110B67LG0N000	BRACE, LAMP SUPPORT RH	1	Rp58.000
6	58121-67LG1-000 SUB: 58121B67LG0N000	BRACE, LAMP SUPPORT LH	1	Rp58.000
7	58210-67LG0-000 SUB: 58210B67L10N000	CROSSMEMBER, FRONT LOWER	1	Rp323.000
8	58230-67LG0-000 SUB: 58230B67LG0N000	MEMBER, HOOD LOCK	1	Rp131.500
9	58240-67L00-000 SUB: 58240B67L00N000	BRACE, HOOD LOCK	1	Rp1.069.000
10	58251-67LG0-000 SUB: 58251B67L00N000	MEMBER, LAMP SUPPORT RH	1	Rp50.500
11	58261-67LG0-000 SUB: 58261B67L00N000	MEMBER, LAMP SUPPORT LH	1	Rp50.500
12	DISCONTINUE SUB: 01550B0612AN000	BOLT	3	-
13	72310-67L00-000 SUB: 72310B67L00N000	STAY, FRONT HOOD	1	Rp29.000
14	72312-67LG0-000 SUB: 72312B67LG0N000	HOLDER, FRONT HOOD STAY	1	Rp7.500
15	72331-67LG0-5PK SUB: 72331B67LG0N5PK	GARNISH, COWL TOP CTR (BLACK)	1	Rp590.000
16	72341-67LG0-5PK SUB: 72341B67LG0N5PK	GARNISH, COWL TOP SIDE RH (BLACK)	1	Rp216.000
17	72342-67LG0-5PK SUB: 72342B67LG0N5PK	GARNISH, COWL TOP SIDE LH (BLACK)	1	Rp216.000
18	72362-54L00-000 SUB: 72362-63J00-000	SEAL, HOOD REAR	1	Rp305.500
19	72372-63J00-000 SUB: 72372B63J00N000	CUSHION, FR HOOD SIDE	2	Rp8.000
20	09209M09L02-000 SUB: 09209M09007-000	LINKAGE	1	Rp4.500
21	09321-10023-000 SUB: 09321B10023N000	CUSHION	1	Rp6.000
22	09409M07L02-5PK SUB: 09409M07308-5PK	CLIP (BLACK)	4	Rp7.500
23	09409M07L02-5PK SUB: 09409M07308-5PK	CLIP (BLACK)	2	Rp7.500
24	09403M04401-000	CLAMP	3	Rp4.500
25	82110M67L01-000 SUB: 82110M67L00-000	LATCH, HOOD	1	Rp135.000
26	82160-67LG0-000 SUB: 82160B67LG0N000	CABLE, HOOD LATCH RELEASE	1	Rp64.500
27	82191-50E00-000	•GROMMET, LATCH RELEASE CABLE	1	Rp41.500
28	01550-0616A-000 SUB: 01550B0616AN000	BOLT	3	Rp3.500
