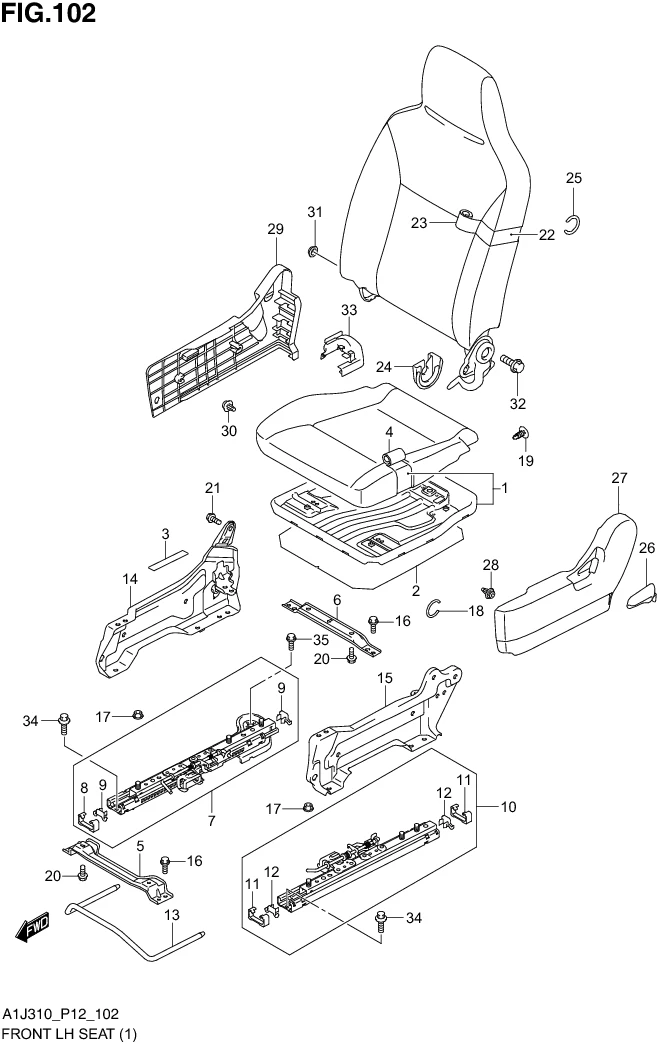

FIG. 102 FRONT LH SEAT (GA,GL)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	85105-67LA0-000 SUB: 85105B67LA0N000	CUSHION SUB ASSY, FRONT LH	1	Rp539.500
2	85163-67LA0-000 SUB: 85163B67LA0N000	SILENCER, FRONT CUSHION	1	Rp11.000
3	85169-67LA0-000 SUB: 85169B67LA0N000	TAPE, FRONT CUSHION	1	Rp9.500
4-1	85180-67LA0-AP8 SUB: 85180B67LA0NAP8	TRIM, FRONT CUSHION (BEIGE/GRAY)	1	Rp247.500	GA
4-2	85180-67LA0-AP6 SUB: 85180B67LA0NAP6	TRIM, FRONT CUSHION (BEIGE/GRAY)	1	Rp271.500	GL
5	85261-67LB0-000 SUB: 85261B67L00N000	MEMBER, CUSHION FRONT	1	Rp56.500
6	85271-67L00-000 SUB: 85271B67L00N000	MEMBER, CUSHION REAR	1	Rp47.500
7	86620-67LA0-000 SUB: 86620B67LA0N000	ADJUSTER ASSY, FR INSIDE LH	1	Rp496.500
8	86652-67LA0-000 SUB: 86652B67LA0N000	•CAP, FRONT ADJUSTER LOWER	1	Rp106.000
9	86654-67LA0-000 SUB: 86654B67LA0N000	•CAP, FRONT ADJUSTER UPPER	2	Rp106.000
10	86640-67LA0-000 SUB: 86640B67LA0N000	ADJUSTER ASSY, FR OUTSIDE LH	1	Rp416.000
11	86652-67LA0-000 SUB: 86652B67LA0N000	•CAP, FRONT ADJUSTER LOWER	2	Rp106.000
12	86654-67LA0-000 SUB: 86654B67LA0N000	•CAP, FRONT ADJUSTER UPPER	2	Rp106.000
13	86691-67LA0-000 SUB: 86691B67LA0N000	HANDLE, FRONT SEAT ADJUSTER	1	Rp263.500
14	86720-67LA0-000 SUB: 86720B67LA0N000	RISER, FRONT INSIDE LH	1	Rp164.500
15	86740-67LA0-000 SUB: 86740B67LA0N000	RISER, FRONT OUTSIDE LH	1	Rp156.000
16	01550-0812A-000 SUB: 01550B0812AN000	BOLT	8	Rp3.500
17	08316-1010A-000 SUB: 08316B1010AN000	NUT	6	Rp3.500
18	09387-19001-000 SUB: 09387B19001N000	RING	8	Rp9.000
19	09409-10302-5PK	CLIP (BLACK)	2	Rp18.500
20	01550-0812A-000 SUB: 01550B0812AN000	BOLT	4	Rp3.500
21	85295-58J01-000 SUB: 85295B58J01N000	BOLT, FRONT BACK FIX	1	Rp34.000
22	85306-67LA0-000 SUB: 85306B67LA0N000	BACK S/ASSY, FRONT LH	1	Rp937.000
23-1	85880-67LA0-AP8 SUB: 85880B67LA0NAP8	TRIM, FRONT BACK LH (BEIGE/GRAY)	1	Rp388.500	GA
23-2	85880-67LB0-AP6 SUB: 85880B67LB0NAP6	TRIM, FRONT BACK LH (BEIGE/GRAY)	1	Rp443.000	GL
24	85722-67LA0-R8H SUB: 85722B67LA0NR8H	COVER, RECLINING INSIDE LH (GRAY)	1	Rp16.500
25	09387-19001-000 SUB: 09387B19001N000	RING	5	Rp9.000
26	85711-67LA0-R8H SUB: 85711B67LA0NR8H	KNOB, RECLINING LH (BEIGE)	1	Rp11.000
27	85721-67LA0-R8H SUB: 85721B67LA0NR8H	COVER, RECLINING OUTSIDE LH (BEIGE)	1	Rp65.000
28	09409-10313-000	CLIP	2	Rp14.000
29	85741-67LA0-R8H SUB: 85741B67LA0NR8H	COVER, FR HINGE OUTSIDE LH (BEIGE)	1	Rp183.000
30	09409-10313-000	CLIP	2	Rp14.000
31	87286-58J10-000 SUB: 87286B58J10N000	BUSH, FRONT BACK FIX	1	Rp4.500
32	01550-1016A-000 SUB: 01550B1016AN000	BOLT	2	Rp5.500
33	85995-85K00-5PK SUB: 85995B85K00N5PK	COVER, REAR INSIDE LH (BLACK)	1	Rp30.500
34	09119-08097-000 SUB: 09119-08094-000	BOLT (8X25)	3	Rp27.500
35	09119-10085-000	BOLT	1	Rp27.000
