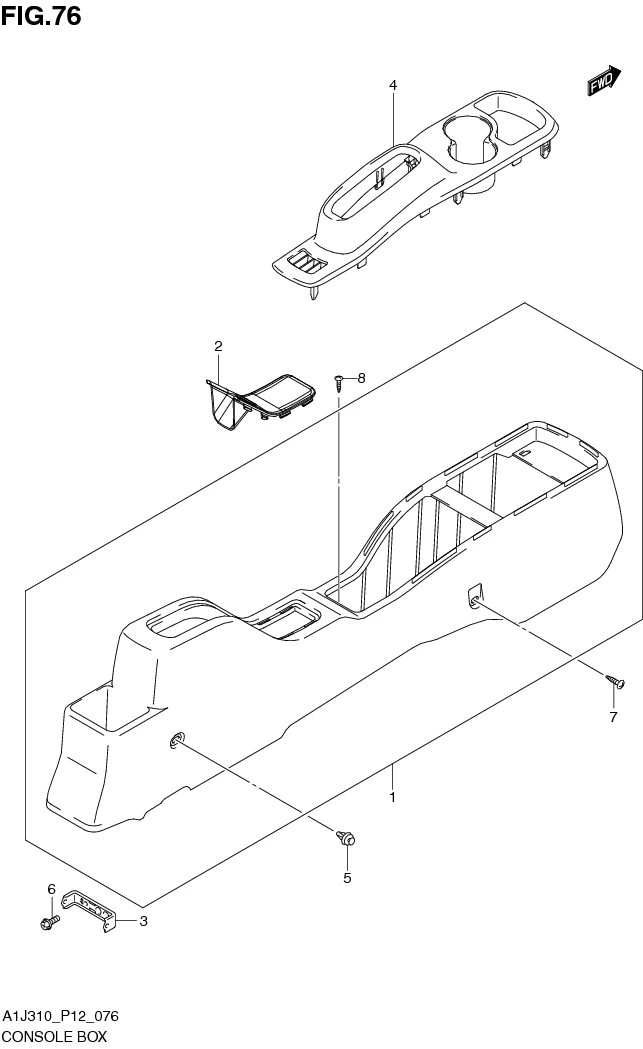

FIG. 76 CONSOLE BOX

FIG. 76 CONSOLE BOX

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	75810-67L50-5PK SUB: 75810B67L50N5PK	BOX, FLOOR CONSOLE (BLACK)	1	Rp799.000
2	75812-67L50-5PK SUB: 75812B67L50N5PK	CAP, CONSOLE BOX (BLACK)	1	Rp16.500
3	75815M76F00-000	BRACKET, CONSOLE BOX REAR	1	Rp12.000
4	75820-67L50-5PK SUB: 75820B67L50N5PK	GARNISH, GEAR SHIFT (BLACK)	1	Rp666.000
5	09409-06322-5PK	CLIP (BLACK)	2	Rp19.000
6	DISCONTINUE SUB: 01550B0612AN000	BOLT	1	-
7	03141-0516B-000 SUB: 03141M0512A-000	SCREW	2	Rp3.500
8	03241M0516A-000 SUB: 03141M0516A-000	SCREW	1	Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
