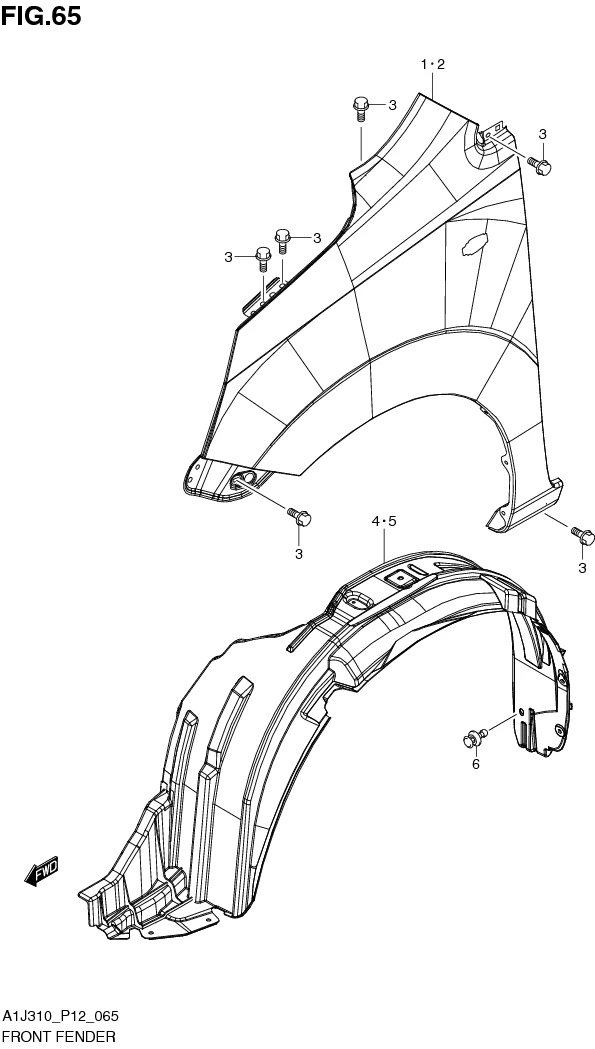

FIG. 65 FRONT FENDER

FIG. 65 FRONT FENDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	57611-67LG0-000 SUB: 57611B67LG0N000	PANEL, FRONT FENDER RH	1	Rp791.500
2	57711-67LG0-000 SUB: 57711B67LG0N000	PANEL, FRONT FENDER LH	1	Rp791.500
3	DISCONTINUE SUB: 01550B0612AN000	BOLT	12	-
4	72321-67L00-000 SUB: 72321B67L00N000	LINING, FRONT FENDER RH	1	Rp466.000
5	72322-67L00-000 SUB: 72322B67L00N000	LINING, FRONT FENDER LH	1	Rp466.000
6	09409M07L01-000 SUB: 09409M07332-000	CLIP	19	Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
