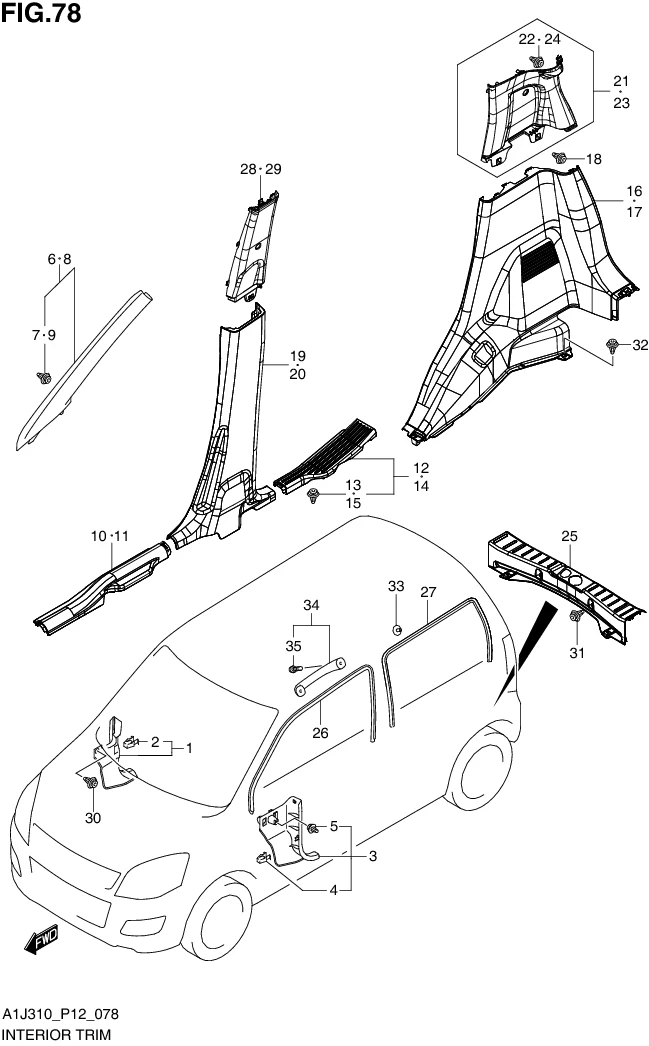

FIG. 78 INTERIOR TRIM

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	76121-67L00-5PK SUB: 76121B67L00N5PK	TRIM, DASH SIDE RH (BLACK)	1	Rp40.000
2	09409-10308-000 SUB: 09409B10308N000	•CLIP	1	Rp6.500
3	76131-67L00-5PK SUB: 76131B67L00N5PK	TRIM, DASH SIDE LH (BLACK)	1	Rp40.000
4	76142-76G00-000 SUB: 76142B76G00N000	•CLIP, DASH SIDE TRIM FR	1	Rp9.500
5	09409-10308-000 SUB: 09409B10308N000	•CLIP	1	Rp6.500
6	76141-67L50-6GS SUB: 76141B67L50N6GS	TRIM, FR PILLAR INNER RH (GRAY)	1	Rp69.000
7	09409-10327-000 SUB: 09409B10312N000	•CLIP	2	Rp5.000
8	76151-67L50-6GS SUB: 76151B67L50N6GS	TRIM, FR PILLAR INNER LH (GRAY)	1	Rp70.000
9	09409-10327-000 SUB: 09409B10312N000	•CLIP	2	Rp5.000
10	76161-67L00-5PK SUB: 76161B67L00N5PK	SCUFF, SIDE SILL FRONT RH (BLACK)	1	Rp29.500
11	76171-67L00-5PK SUB: 76171B67L00N5PK	SCUFF, SIDE SILL FRONT LH (BLACK)	1	Rp29.500
12	76181-67L50-5PK SUB: 76181B67L00N5PK	SCUFF, SIDE SILL REAR RH (BLACK)	1	Rp263.000
13	09409-10327-000 SUB: 09409B10312N000	•CLIP	1	Rp5.000
14	76191-67L50-5PK SUB: 76191B67L00N5PK	SCUFF, SIDE SILL REAR LH (BLACK)	1	Rp50.500
15	09409-10327-000 SUB: 09409B10312N000	•CLIP	1	Rp5.000
16	76210-67L50-5PK SUB: 76210B67L50N5PK	TRIM, QTR INNER RH (BLACK)	1	Rp148.000
17	76220-67L50-5PK SUB: 76220B67L50N5PK	TRIM, QTR INNER LH (BLACK)	1	Rp148.000
18	09409-10327-000 SUB: 09409B10312N000	CLIP	6	Rp5.000
19	76231-67L50-5PK SUB: 76231B67L50N5PK	TRIM, CTR PILLAR INNER RH (BLACK)	1	Rp492.000
20	76241-67L50-5PK SUB: 76241B67L50N5PK	TRIM, CTR PILLAR INNER LH (BLACK)	1	Rp492.000
21	76251-67L50-6GS SUB: 76251B67L50N6GS	TRIM, QTR UPPER RH (GRAY)	1	Rp555.000
22	09409-10327-000 SUB: 09409B10312N000	•CLIP	6	Rp5.000
23	76261-67L50-6GS SUB: 76261B67L50N6GS	TRIM, QTR UPPER LH (GRAY)	1	Rp555.000
24	09409-10327-000 SUB: 09409B10312N000	•CLIP	6	Rp5.000
25-1	76271-67L50-5PK SUB: 76271B67L50N5PK	TRIM, TAIL END MEMBER (BLACK)	1	Rp335.500	GA
25-2	76271-67L60-5PK SUB: 76271B67L60N5PK	TRIM, TAIL END MEMBER (BLACK)	1	Rp352.000	GL,GX
26	76291M67L00-5PK	TRIM, FR DOOR OPENING (BLACK)	2	Rp73.500
27	76292M67L00-5PK	TRIM, RR DOOR OPENING (BLACK)	2	Rp70.000
28	76311-67L50-6GS SUB: 76311B67L50N6GS	TRIM, CTR PILLAR INNER UPPER (GRAY)	1	Rp73.500	RH
29	76321-67L50-6GS SUB: 76321B67L50N6GS	TRIM, CTR PILLAR INNER UPPER (GRAY)	1	Rp73.500	LH
30	09409M07L02-5PK SUB: 09409M07308-5PK	CLIP (BLACK)	1	Rp7.500
31	09409M07L02-5PK SUB: 09409M07308-5PK	CLIP (BLACK)	2	Rp7.500
32	09409M07L02-5PK SUB: 09409M07308-5PK	CLIP (BLACK)	2	Rp7.500
33	09409M06L02-6GS SUB: 09409M06326-6GS	CLIP (GRAY)	6	Rp5.500	GA
34	76411M79F00-6GS SUB: 76400-70820-6GS	GRIP, ASSISTANT (GRAY)	3	Rp27.000	GL,GX
35	09139-06104-000	•SCREW (6X26)	6	Rp22.500	GL,GX
