KARIMUN WAGON R

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 64 FRONT HOOD PANELFIG. 65 FRONT FENDERFIG. 66 FRONT BODY PANELFIG. 67 FLOOR PANELFIG. 68 SIDE BODY PANELFIG. 69 ROOF PANELFIG. 70 FRONT BUMPERFIG. 71 REAR BUMPERFIG. 72 INSTRUMENT PANELFIG. 73 VENTILATORFIG. 74 COOLING UNITFIG. 75 HEATER CONTROLFIG. 76 CONSOLE BOXFIG. 77 FLOOR CARPETFIG. 78 INTERIOR TRIMFIG. 79 COVER/CAPFIG. 80 FUEL LID OPENER (GA)FIG. 81 FUEL LID OPENER (GL,GX)FIG. 82 ROOF LININGFIG. 83 ROOF MOLDING (GA)FIG. 84 ROOF MOLDING (GL,GX)FIG. 85 EMBLEMFIG. 86 WINDSHIELDFIG. 87 FRONT DOOR PANEL (GA)FIG. 88 FRONT DOOR PANEL (GL,GX)FIG. 89 FRONT DOOR REGULATOR (GA)FIG. 90 FRONT DOOR REGULATOR (GL,GX)FIG. 91 FRONT DOOR LOCK (GA,GL,GX)FIG. 92 REAR DOOR PANEL (GA,GL)FIG. 93 REAR DOOR PANEL (GX)FIG. 94 REAR DOOR REGULATORFIG. 95 REAR DOOR LOCK (GA,GL,GX)FIG. 96 BACK DOOR PANELFIG. 97 BACK DOOR LOCK (GA,GL,GX)FIG. 98 MIRROR/SUNVISOR (GA)FIG. 99 MIRROR/SUNVISOR (GL,GX)FIG. 100 SEAT BELTFIG. 101 FRONT RH SEATFIG. 102 FRONT LH SEAT (GA,GL)FIG. 103 FRONT LH SEAT (GX)FIG. 104 REAR SEATFIG. 105 FUEL TANKFIG. 106 TOOLFIG. 107 AIR CONDITIONERFIG. 108 COMPRESSOR

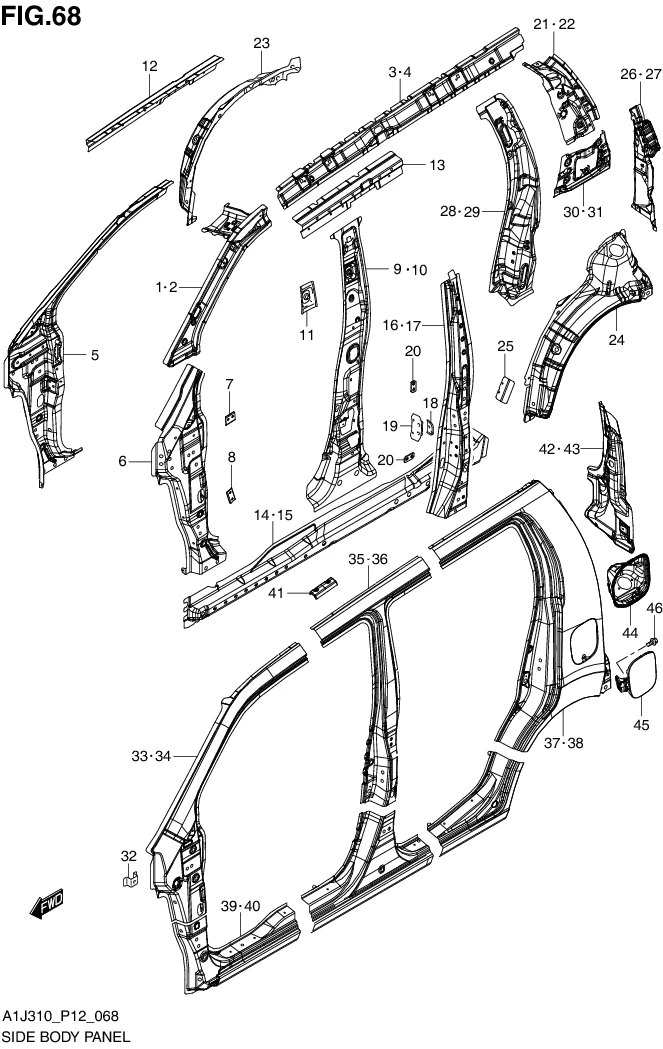

FIG. 68 SIDE BODY PANEL

FIG. 68 SIDE BODY PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 63110-67LG0-000
SUB: 63110B67LG0N000		 PANEL, FR PILLAR INNER RH 1 Rp930.500
2 63510-67LG0-000
SUB: 63510B67LG0N000		 PANEL, FR PILLAR INNER LH 1 Rp930.500
3 63131-67LG0-000
SUB: 63131B67LG0N000		 RAIL, ROOF SIDE INNER RH 1 Rp190.000
4 63531-67LG0-000
SUB: 63531B67LG0N000		 RAIL, ROOF SIDE INNER LH 1 Rp190.000
5 63140-67LG0-000
SUB: 63140B67L00N000		 REINF, HINGE PILLAR FR RH 1 Rp408.000
6 63540-67L00-000
SUB: 63540B67L00N000		 REINF, HINGE PILLAR FR LH 1 Rp256.500
7 63144-58J00-000
SUB: 63144B58J00N000		 RETAINER, DOOR HINGE NO.1 2 Rp18.500
8 63145-75J00-000
SUB: 63145M75J00-000		 RETAINER, DOOR HINGE 2 Rp8.500
9 63211-67LG0-000
SUB: 63211B67LG0N000		 PANEL, CTR PILLAR RH 1 Rp873.500
10 63611-67LG0-000
SUB: 63611B67LG0N000		 PANEL, CTR PILLAR LH 1 Rp873.500
11 63212-67L00-000
SUB: 63212B67L00N000		 REINF, FR SEAT BELT UPPER 2 Rp27.000
12 63222-67LG0-000
SUB: 63222B67LG0N000		 REINF, ROOF SIDE RH 1 Rp443.000
13 63622-67LG0-000
SUB: 63622B67LG0N000		 REINF, ROOF SIDE LH 1 Rp443.000
14 DISCONTINUE
SUB: 63230B67LG0N000		 STRENGTH, SIDE SILL RH 1 -
15 63631-67LG0-000
SUB: 63631B67LG0N000		 STRENGTH, SIDE SILL LH 1 Rp1.446.000
16 63241-67LG0-000
SUB: 63241B67LG0N000		 REINF, HINGE PILLAR RH 1 Rp873.500
17 63641-67LG0-000
SUB: 63641B67LG0N000		 REINF, HINGE PILLAR LH 1 Rp878.500
18 63142-59K00-000
SUB: 63142B59K00N000		 REINF, DOOR CHECKER 2 Rp52.000
19 64220-52G00-000
SUB: 64220B52G00N000		 REINF, DOOR STRIKER 2 Rp32.500
20 63243-72J00-000
SUB: 63243B72J00N000		 RETAINER, REAR DOOR HINGE 4 Rp9.500
21 63310-67LG0-000
SUB: 63310B67L00N000		 PANEL, QTR INNER RH 1 Rp379.000
22 63710-67LG0-000
SUB: 63710B67L00N000		 PANEL, QTR INNER LH 1 Rp379.000
23 63312-67LG0-000
SUB: 63312B67LG0N000		 PANEL, RR WHEEL HOUSE OUTER RH 1 Rp873.500
24 63712-67LG0-000
SUB: 63712B67LG0N000		 PANEL, RR WHEEL HOUSE OUTER LH 1 Rp873.500
25 63313-73H00-000
SUB: 63313B73H00N000		 REINF, RR WHEEL HOUSE FR 2 Rp1.011.500
26 63320-67LG0-000
SUB: 63320B67LG0N000		 PANEL, RR COMB HOUSE INR RH 1 Rp166.000
27 63720-67L00-000
SUB: 63720B67L00N000		 PANEL, RR COMB HOUSE INR LH 1 Rp164.500
28 63330-67LH0-000
SUB: 63330B67LG0N000		 REINF, QTR INNER FRONT RH 1 Rp264.500
29 63730-67LH0-000
SUB: 63730B67LG0N000		 REINF, QTR INNER FRONT LH 1 Rp269.000
30 63341-67L00-000
SUB: 63341B67L00N000		 REINF, SEAT BELT RETRACTOR 1 Rp87.500
31 63741-67L00-000
SUB: 63741B67L00N000		 REINF, SEAT BELT RETRACTOR 1 Rp85.500
32 58232-60B00-000 BRACKET, PARKING CABLE 2 Rp8.500
33-1 64111-67LG0-P11
SUB: 64111B67LG0NP11		 PANEL, A-PILLAR RH 1 Rp1.291.500 GA
33-2 64111-67LG0-P11
SUB: 64111B67LH0NP11		 PANEL, A-PILLAR RH 1 Rp1.291.500 GL,GX
34-1 64511-67LG0-P11
SUB: 64511B67LG0NP11		 PANEL, A-PILLAR LH 1 Rp1.291.500 GA
34-2 64511-67LG0-P11
SUB: 64511B67LH0NP11		 PANEL, A-PILLAR LH 1 Rp1.291.500 GL,GX
35-1 64111-67LG0-P21
SUB: 64111B67LG0NP21		 PANEL, B-PILLAR RH 1 Rp1.291.500 GA
35-2 64111-67LG0-P21
SUB: 64111B67LH0NP21		 PANEL, B-PILLAR RH 1 Rp1.291.500 GL,GX
36-1 64511-67LG0-P21
SUB: 64511B67LG0NP21		 PANEL, B-PILLAR LH 1 Rp1.291.500 GA
36-2 64511-67LG0-P21
SUB: 64511B67LH0NP21		 PANEL, B-PILLAR LH 1 Rp1.291.500 GL,GX
37-2 64111-67LG0-P31
SUB: 64111B67LH0NP31		 PANEL, QUARTER RH 1 Rp1.291.500 GL,GX
37-1 64111-67LG0-P31
SUB: 64111B67LG0NP31		 PANEL, QUARTER RH 1 Rp1.291.500 GA
38-1 64511-67LG0-P31
SUB: 64511B67LG0NP31		 PANEL, QUARTER LH 1 Rp1.291.500 GA
38-2 64511-67LG0-P31
SUB: 64511B67LH0NP31		 PANEL, QUARTER LH 1 Rp1.291.500 GL,GX
39-1 64111-67LG0-P41
SUB: 64111B67LG0NP41		 PANEL, SIDE SILL RH 1 Rp1.291.500 GA
39-2 DISCONTINUE
SUB: 64111B67LH0NP41		 PANEL, SIDE SILL RH 1 - GL,GX
40-1 64511-67LG0-P41
SUB: 64511B67LG0NP41		 PANEL, SIDE SILL LH 1 Rp1.291.500 GA
40-2 64511-67LG0-P41
SUB: 64511B67LH0NP41		 PANEL, SIDE SILL LH 1 Rp1.291.500 GL,GX
41 64112-67L00-000
SUB: 64112B67L00N000		 REINF, ROOF RAIL 4 Rp27.500 GL,GX
42 64221-67LG0-000
SUB: 64221B67LG0N000		 HOUSING, RR COMB LAMP OUTER RH 1 Rp658.500
43 64621-67LG0-000
SUB: 64621B67LG0N000		 HOUSING, RR COMB LAMP OUTER LH 1 Rp658.500
44 64561-67LH0-000
SUB: 64561B67LH0N000		 BOX, FUEL INLET 1 Rp76.500
45 64570-67LH0-000
SUB: 64570B67LH0N000		 LID, FUEL INLET 1 Rp97.500
46 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
